Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1638-26FFIXED IND 910UH 84MA 31.5 OHM TH |
0 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 910 µH | ±1% | 84 mA | - | Unshielded | 31.5Ohm Max | 65 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1638-28FFIXED IND 1MH 82MA 33 OHM TH |
0 |
|
Datasheet |
1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±1% | 82 mA | - | Unshielded | 33Ohm Max | 65 @ 790kHz | 2.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
SH150T-0.84-26FIXED IND 26UH 840MA 200 MOHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 26 µH | ±20% | 840 mA | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | 0.280" (7.10mm) |
|

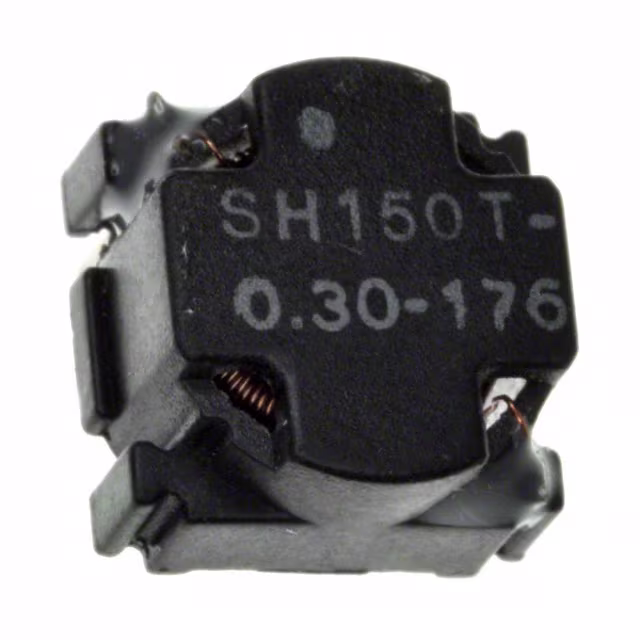

SH150T-0.30-176FIXED IND 176UH 300MA 1.4 OHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 176 µH | ±20% | 300 mA | - | Unshielded | 1.4Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | 0.280" (7.10mm) |
|
|
SH150T-0.25-256FIXED IND 256UH 250MA 2.2 OHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 256 µH | ±20% | 250 mA | - | Unshielded | 2.2Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | 0.280" (7.10mm) |
|
|
IH10EB5R0KFIXED IND 5UH 19A 10 MOHM TH |
0 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 19 A | 25A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.635" Dia x 1.125" L (16.13mm x 28.58mm) | - |
|
|
SMRF1210-103KMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±10% | 120 mA | - | Unshielded | 13Ohm Max | 30 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
1944-01JFIXED IND 100NH 4A 20 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±5% | 4 A | - | Unshielded | 20mOhm Max | 75 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-02JFIXED IND 120NH 3.5A 25 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 120 nH | ±5% | 3.5 A | - | Unshielded | 25mOhm Max | 75 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-03JFIXED IND 150NH 3A 30 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±5% | 3 A | - | Unshielded | 30mOhm Max | 75 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-04JFIXED IND 180NH 3A 30 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 180 nH | ±5% | 3 A | - | Unshielded | 30mOhm Max | 65 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-05JFIXED IND 220NH 3A 30 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±5% | 3 A | - | Unshielded | 30mOhm Max | 65 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-06JFIXED IND 270NH 2.7A 40 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 270 nH | ±5% | 2.7 A | - | Unshielded | 40mOhm Max | 65 @ 45MHz | 376MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-07JFIXED IND 330NH 2.5A 45 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 330 nH | ±5% | 2.5 A | - | Unshielded | 45mOhm Max | 65 @ 40MHz | 352MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-08JFIXED IND 390NH 2A 70 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 390 nH | ±5% | 2 A | - | Unshielded | 70mOhm Max | 60 @ 40MHz | 320MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-09JFIXED IND 470NH 2A 70 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±5% | 2 A | - | Unshielded | 70mOhm Max | 55 @ 25MHz | 288MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-10JFIXED IND 560NH 1.7A 100 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±5% | 1.7 A | - | Unshielded | 100mOhm Max | 50 @ 25MHz | 264MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-11JFIXED IND 680NH 1.5A 120 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±5% | 1.5 A | - | Unshielded | 120mOhm Max | 50 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-12JFIXED IND 820NH 1.3A 160 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±5% | 1.3 A | - | Unshielded | 160mOhm Max | 45 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
|
1944-13JFIXED IND 1UH 1.1A 230 MOHM TH |
0 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±5% | 1.1 A | - | Unshielded | 230mOhm Max | 45 @ 20MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
