Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437429203470FIXED IND 47UH 12A 19.3 MOHM SMD |
227 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 12 A | 13.5A | Shielded | 19.3mOhm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|

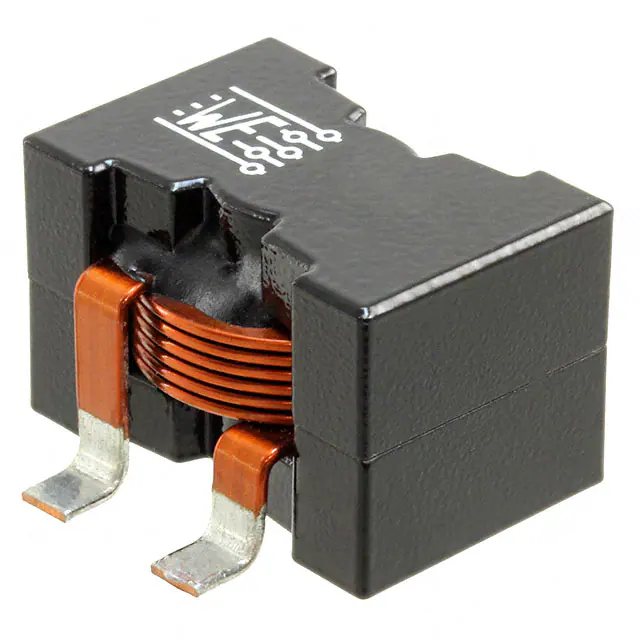

7443642200FIXED IND 22UH 30A 2.4 MOHM SMD |
3,129 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±15% | 30 A | 18A | Shielded | 2.4mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|
|
7443641500FIXED IND 15UH 30A 2.4 MOHM SMD |
1,546 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±15% | 30 A | 26A | Shielded | 2.4mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|
|
7443641000FIXED IND 10UH 30A 2.4 MOHM SMD |
289 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±15% | 30 A | 37A | Shielded | 2.4mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2818 | 1.122" L x 0.768" W (28.50mm x 19.50mm) | 0.728" (18.50mm) |
|

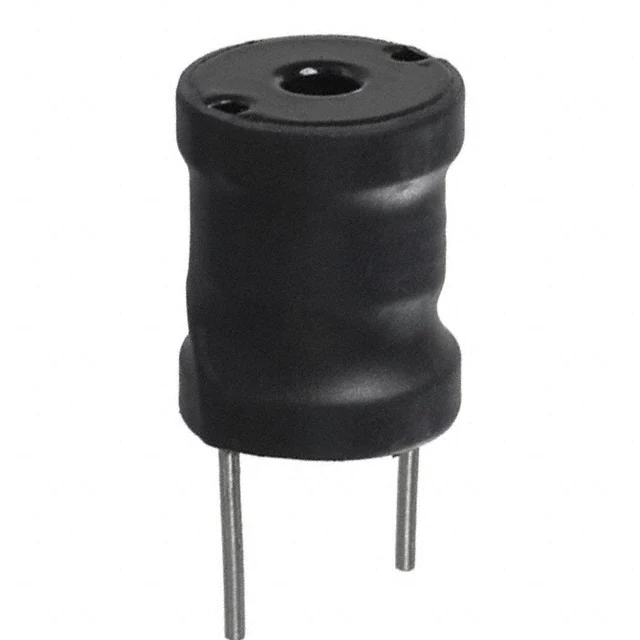

1110-101K-RCFIXED IND 100UH 2.8A 95 MOHM TH |
1,616 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.8 A | - | Unshielded | 95mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
7443640680BFIXED IND 6.8UH 47.5A 0.968 MOHM |
184 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±20% | 47.5 A | 36.3A | Shielded | 0.968mOhm Max | - | 18.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
3615A100KFIXED IND 10UH 620MA 600MOHM SMD |
2,472 |
|
Datasheet |
3615, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 10 µH | ±10% | 620 mA | - | Unshielded | 600mOhm Max | 35 @ 7.9MHz | 42MHz | - | -55°C ~ 100°C | 7.9 MHz | - | Surface Mount | - | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.209" (5.30mm) |
|
DC780R-225KFIXED IND 2.2MH 800MA 1.54OHM TH |
180 |
|
Datasheet |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 800 mA | 2.3A | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|

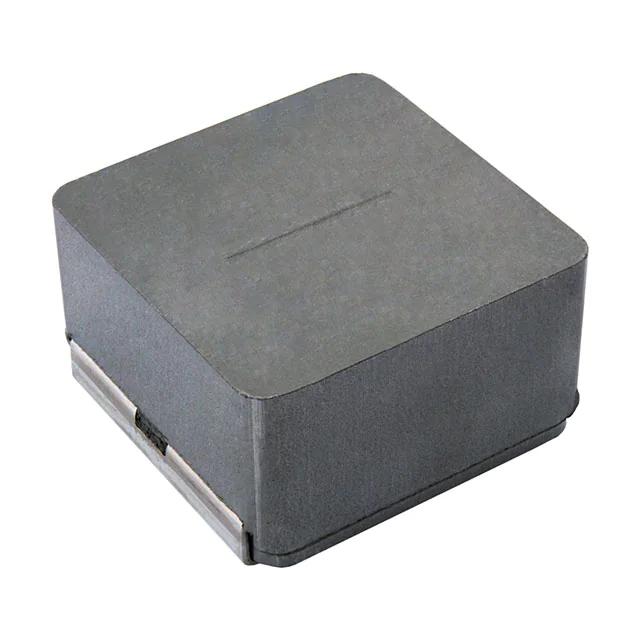

IHLP8787MZER101M51FIXED IND 100UH 9.1A 39.4MOHM SM |
276 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 9.1 A | 7A | Shielded | 39.4mOhm Max | - | 2.01MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEBR47M5AFIXED IND 470NH 125A 0.3 MOHM TH |
1,043 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 470 nH | ±20% | 125 A | 112A | Shielded | 0.3mOhm Max | - | 57.25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|

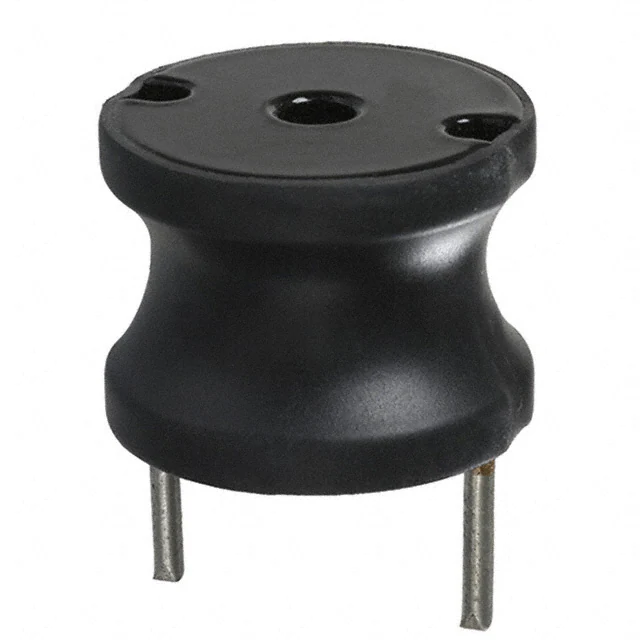

1130-472K-RCFIXED IND 4.7MH 1A 1.86 OHM TH |
988 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 1 A | - | Unshielded | 1.86Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-152K-RCFIXED IND 1.5MH 2A 518 MOHM TH |
676 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 2 A | - | Unshielded | 518mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
IHLP8787MZER1R0M5AFIXED IND 1UH 69A 0.89 MOHM SMD |
311 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 69 A | 71A | Shielded | 0.89mOhm Max | - | 25.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
PQ3218-3R3-70-TFIXED IND 3.3UH 70A 1.1 MOHM TH |
207 |
|
Datasheet |
PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 3.3 µH | - | 70 A | 80A | Unshielded | 1.1mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|
IHDM1107BBEV120M30FG, IHDM-1107BB-30 12 20% |
300 |
|
Datasheet |
IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 12 µH | ±20% | 35 A | 61A | Unshielded | 2.6mOhm Max | - | 21MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV1R1M20FG, IHDM-1107BB-20 1.1 20% |
143 |
|
Datasheet |
IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 1.1 µH | ±20% | 93 A | 301A | Unshielded | 0.41mOhm Max | - | 100MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|

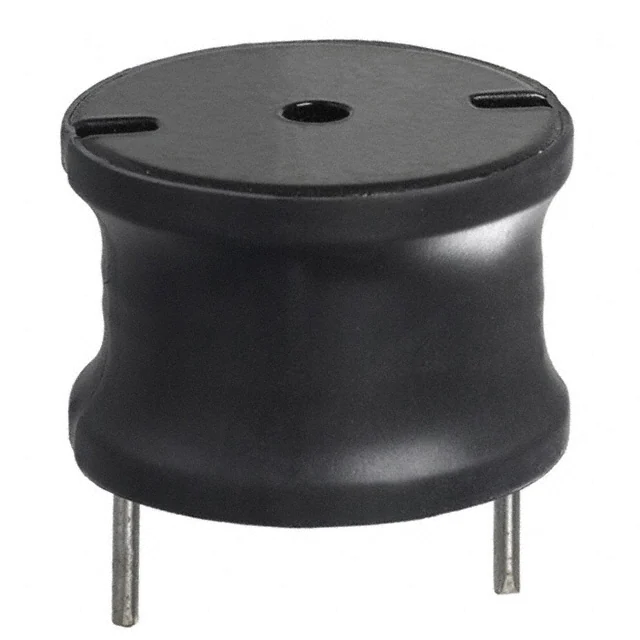

1140-101K-RCFIXED IND 100UH 10.5A 25 MOHM TH |
769 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10.5 A | 20.6A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-331K-RCFIXED IND 330UH 6.1A 74 MOHM TH |
319 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 6.1 A | 11.2A | Unshielded | 74mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-103K-RCFIXED IND 10MH 1A 2.76 OHM TH |
669 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 1 A | 2.1A | Unshielded | 2.76Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|

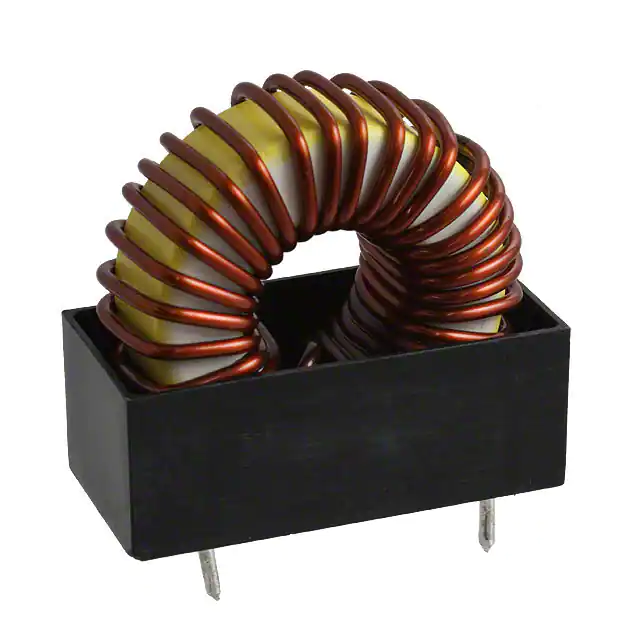

PE-51508NLFIXED IND 60UH 16A 12 MOHM TH |
159 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 60 µH | - | 16 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 2.300" L x 1.110" W (58.42mm x 28.19mm) | 2.300" (58.42mm) |
