Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHSM3825PJ101LFIXED IND 100UH 480MA 1.44OHM SM |
0 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 100 µH | ±15% | 480 mA | 420mA | Unshielded | 1.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ121LFIXED IND 120UH 450MA 2.18OHM SM |
0 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 120 µH | ±15% | 450 mA | 400mA | Unshielded | 2.18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ470LFIXED IND 47UH 740MA 646MOHM SMD |
0 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 47 µH | ±15% | 740 mA | 680mA | Unshielded | 646mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ560LFIXED IND 56UH 650MA 845MOHM SMD |
0 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 56 µH | ±15% | 650 mA | 640mA | Unshielded | 845mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ680LFIXED IND 68UH 610MA 1.04OHM SMD |
0 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 68 µH | ±15% | 610 mA | 580mA | Unshielded | 1.04Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ820LFIXED IND 82UH 560MA 1.24OHM SMD |
0 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 82 µH | ±15% | 560 mA | 510mA | Unshielded | 1.24Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
HC7-R47-RFIXED IND 470NH 23.4A 1.6MOHM SM |
0 |
|
Datasheet |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 23.4 A | 51.9A | Unshielded | 1.6mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|
|
SMRF1210-271KLFMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 µH | ±10% | 411 mA | - | Unshielded | 1.1Ohm Max | 30 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
SMRF1210-331KLFMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | ±10% | 393 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.9MHz | 58MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
IHSM5832EB152LFIXED IND 1.5MH 290MA 7.35OHM SM |
0 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 1.5 mH | ±15% | 290 mA | 170mA | Unshielded | 7.35Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB222LFIXED IND 2.2MH 220MA 9.71OHM SM |
0 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 2.2 mH | ±15% | 220 mA | 140mA | Unshielded | 9.71Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB332LFIXED IND 3.3MH 180MA 15.6OHM SM |
0 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 3.3 mH | ±15% | 180 mA | 120mA | Unshielded | 15.6Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832EB472LFIXED IND 4.7MH 140MA 23.1OHM SM |
0 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 4.7 mH | ±15% | 140 mA | 100mA | Unshielded | 23.1Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
CT622LYF-471KRADIAL LEADED FIXED INDUCTOR |
18 |
|
Datasheet |
ct622lyf | - | Bulk | Active | - | - | 470 µH | ±10% | - | - | - | 1.1Ohm | - | 1.9MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT622LYF-271JRADIAL LEADED FIXED INDUCTOR |
15 |
|
Datasheet |
ct622lyf | - | Bulk | Active | - | - | 270 µH | ±5% | - | - | - | 750mOhm | - | 2.4MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|

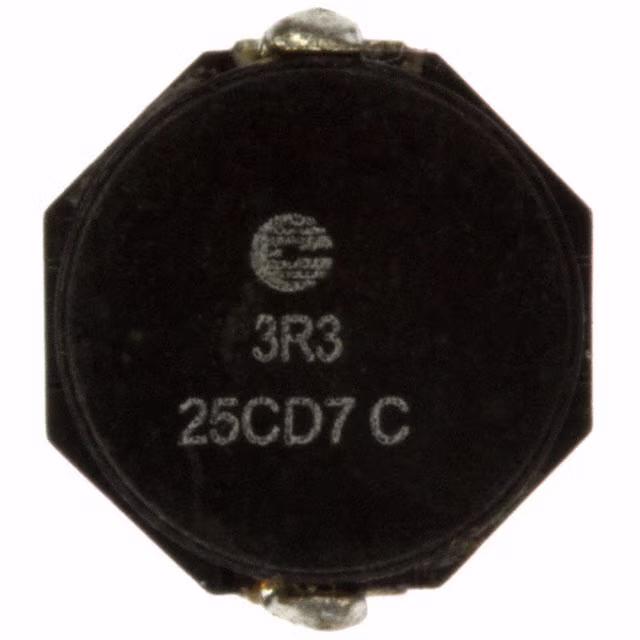

SD8328-3R3-RFIXED IND 3.3UH 6.1A 18 MOHM SMD |
0 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.1 A | 4A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
SD8328-680-RFIXED IND 68UH 980MA 286MOHM SMD |
0 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 980 mA | 1A | Shielded | 286mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
PG0083.401NLTFIXED IND 400NH 17.5A 3.2MOHM SM |
0 |
|
Datasheet |
PG0083 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±25% | 17.5 A | 27A | Unshielded | 3.2mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.165" (4.20mm) |
|
2474-26LFIXED IND 120UH 1.12A 283MOHM TH |
0 |
|
Datasheet |
2474 | Axial | Bulk | Active | Molded | Ferrite | 120 µH | ±15% | 1.12 A | 580mA | Unshielded | 283mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2474-14LFIXED IND 12UH 3.09A 37 MOHM TH |
0 |
|
Datasheet |
2474 | Axial | Bulk | Active | Molded | Ferrite | 12 µH | ±15% | 3.09 A | 1.8A | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
