Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17S123KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±10% | 150 mA | - | Shielded | 3.6Ohm Max | 55 @ 790kHz | 9.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S183KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±10% | 135 mA | - | Shielded | 4.4Ohm Max | 55 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S103KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±10% | 160 mA | - | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S683KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±10% | 80 mA | - | Shielded | 11.8Ohm Max | 60 @ 790kHz | 4.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S473KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±10% | 92 mA | - | Shielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S223KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±10% | 125 mA | - | Shielded | 5Ohm Max | 55 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S223KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±10% | 125 mA | - | Shielded | 5Ohm Max | 55 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S473KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±10% | 92 mA | - | Shielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IHLP6767GZER470M5AIND 47UH 5A SMD |
0 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MP2A-820-RFIXED IND 82UH 450MA 1.463OHM SM |
0 |
|
Datasheet |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 82 µH | ±20% | 450 mA | 500mA | Unshielded | 1.463Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
DPV-1.0-330FIXED IND 330UH 1A 193 MOHM TH |
0 |
|
Datasheet |
DP | Radial, Vertical | Tray | Active | Toroidal | - | 330 µH | - | 1 A | - | Unshielded | 193mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.906" L x 0.610" W (23.00mm x 15.50mm) | 0.984" (25.00mm) |
|
1210-820KFIXED IND 82NH 551MA 400MOHM SMD |
0 |
|
Datasheet |
1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Phenolic | 82 nH | ±10% | 551 mA | - | Unshielded | 400mOhm Max | 30 @ 50MHz | 625MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210-101KFIXED IND 100NH 1.018A 200 MOHM |
0 |
|
Datasheet |
1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±10% | 1.018 A | - | Unshielded | 200mOhm Max | 30 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210-151KFIXED IND 150NH 910MA 250MOHM SM |
0 |
|
Datasheet |
1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±10% | 910 mA | - | Unshielded | 250mOhm Max | 30 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

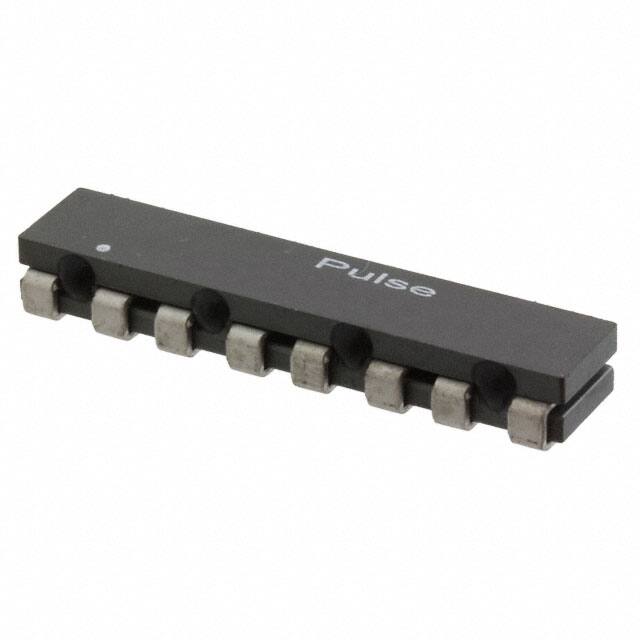

PA1314NLTFIXED IND 370NH 40A 0.5 MOHM SMD |
0 |
|
Datasheet |
PA1314NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 370 nH | ±20% | 40 A | - | Shielded | 0.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.720" L x 0.354" W (18.29mm x 9.00mm) | 0.205" (5.20mm) |
|
SH150S-0.68-39FIXED IND 39UH 680MA 300MOHM SMD |
0 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 39 µH | ±20% | 680 mA | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.301" (7.65mm) |
|
|
SH150S-0.84-26FIXED IND 26UH 840MA 200MOHM SMD |
0 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 26 µH | ±20% | 840 mA | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.301" (7.65mm) |
|
IHSM7832ER560LFIXED IND 56UH 2.4A 140 MOHM SMD |
0 |
|
Datasheet |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±15% | 2.4 A | 820mA | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832ER121LFIXED IND 120UH 1.5A 305MOHM SMD |
0 |
|
Datasheet |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±15% | 1.5 A | 610mA | Unshielded | 305mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG820KFIXED IND 82UH 1.9A 184 MOHM SMD |
0 |
|
Datasheet |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±10% | 1.9 A | 720mA | Unshielded | 184mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
