Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767DZEP1R5M8AINDUCT WW SNGL COIL MISC |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

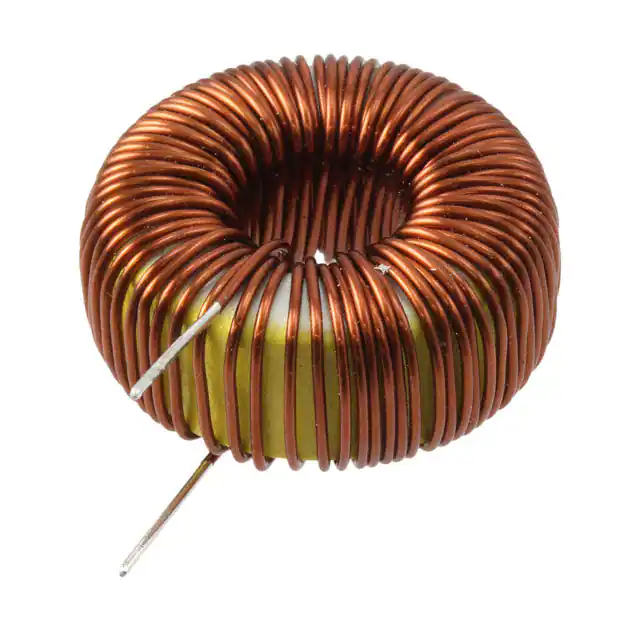

DPO-3.0-330FIXED IND 330UH 3A 142 MOHM TH |
0 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 330 µH | - | 3 A | - | Unshielded | 142mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.551" W (30.00mm x 14.00mm) | - |
|
|
IHD3ER270LIND AXIAL 270UH |
0 |
|
Datasheet |
* | - | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MPXV1D1264LR22FIXED IND 220NH 53A 1.1MOHM SMD |
0 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 53 A | 100A | Shielded | 1.1mOhm Max | - | 90MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
ATCA-05-141M-HFIXED IND 140UH 3A 64 MOHM TH |
0 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 140 µH | ±20% | 3 A | - | Unshielded | 64mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.669" (17.00mm) |
|
ATCA-05-141M-VFIXED IND 140UH 3A 64 MOHM TH |
0 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 140 µH | ±20% | 3 A | - | Unshielded | 64mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" L x 0.669" W (30.00mm x 17.00mm) | - |
|
IHSM5832ER150LFIXED IND 15UH 3.5A 78 MOHM SMD |
0 |
|
Datasheet |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±15% | 3.5 A | 1.6A | Unshielded | 78mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832ER180LFIXED IND 18UH 3.2A 83 MOHM SMD |
0 |
|
Datasheet |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±15% | 3.2 A | 1.5A | Unshielded | 83mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
17S822KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±10% | 180 mA | - | Shielded | 2.44Ohm Max | 50 @ 2.5MHz | 10.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S152KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 315 mA | - | Shielded | 800mOhm Max | 45 @ 2.5MHz | 49MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S822KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±10% | 180 mA | - | Shielded | 2.44Ohm Max | 50 @ 2.5MHz | 10.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S682KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±10% | 170 mA | - | Shielded | 2.7Ohm Max | 50 @ 2.5MHz | 21MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S152KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 315 mA | - | Shielded | 800mOhm Max | 45 @ 2.5MHz | 49MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S222KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 22 µH | ±10% | 290 mA | - | Shielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S562KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±10% | 190 mA | - | Shielded | 2.23Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S332KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±10% | 240 mA | - | Shielded | 1.37Ohm Max | 45 @ 2.5MHz | 34MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S562KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±10% | 190 mA | - | Shielded | 2.23Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S102KMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±10% | 220 mA | - | Shielded | 1.62Ohm Max | 50 @ 2.5MHz | 46MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S272KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 27 µH | ±10% | 260 mA | - | Shielded | 1.19Ohm Max | 45 @ 2.5MHz | 38MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
17S182KLFMOLDED SHIELDED RF COILS AXIAL |
0 |
|
Datasheet |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±10% | 300 mA | - | Shielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
