Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300HT-221-VFIXED IND 220UH 6.8A 61 MOHM TH |
0 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 220 µH | ±15% | 6.8 A | - | Shielded | 61mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
MLRF3013-823KMIL QUAL UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
MLRF3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±10% | 29 mA | - | Unshielded | 65Ohm Max | 30 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.93mm) | 0.145" (3.68mm) |
|
CDRH125-121MCFIXED IND 120UH 1.1A 170MOHM SMD |
0 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 120 µH | ±20% | 1.1 A | - | Shielded | 170mOhm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

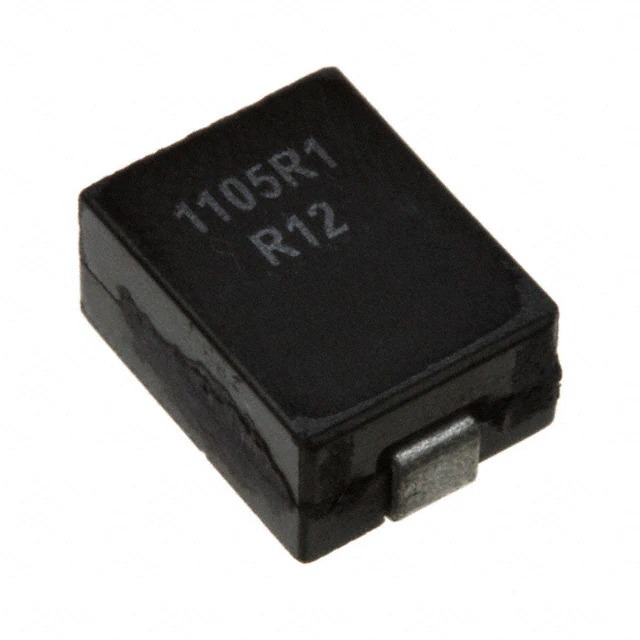

FP1105R1-R12-RFIXED IND 120NH 46A 0.35MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 46 A | 66A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.193" (4.90mm) |
|
FP1007R2-R17-RFIXED IND 170NH 51A 0.48MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 170 nH | ±10% | 51 A | 58A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.256" (6.50mm) |
|
RLF7045T-680MR85-DFIXED IND 68UH 850MA 340.8 MOHM |
0 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 850 mA | 850mA | Shielded | 340.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|
FP0906R1-R18-RFIXED IND 180NH 51A 0.29MOHM SMD |
0 |
|
Datasheet |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 51 A | 45A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
|
FP1010V11-R070-RIND FP1010V11-R070-R FLAT-PAC |
0 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±10% | 61 A | 130A | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" (10.00mm) |
|
|
FP1010V11-R090-RIND FP1010V11-R090-R FLAT-PAC |
0 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 90 nH | ±10% | 61 A | 105A | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" (10.00mm) |
|
|
PD105R-104KFIXED IND 100UH 970MA 350MOHM SM |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 970 mA | 970mA | Unshielded | 350mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-123KFIXED IND 12UH 2.45A 70 MOHM SMD |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.45 A | 2.45A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-124KFIXED IND 120UH 880MA 420MOHM SM |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 880 mA | 880mA | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-153KFIXED IND 15UH 2.3A 80 MOHM SMD |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.3 A | 2.3A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-154KFIXED IND 150UH 800MA 470MOHM SM |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 800 mA | 800mA | Unshielded | 470mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-183KFIXED IND 18UH 2.15A 90 MOHM SMD |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 2.15 A | 2.15A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-184KFIXED IND 180UH 720MA 560MOHM SM |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 720 mA | 720mA | Unshielded | 560mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-223KFIXED IND 22UH 1.95A 100MOHM SMD |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.95 A | 1.95A | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-224KFIXED IND 220UH 660MA 730MOHM SM |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 660 mA | 660mA | Unshielded | 730mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-273KFIXED IND 27UH 1.8A 115 MOHM SMD |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1.8 A | 1.8A | Unshielded | 115mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
|
|
PD105R-333KFIXED IND 33UH 1.65A 125MOHM SMD |
0 |
|
Datasheet |
PD105R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.65 A | 1.65A | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.346" W (9.80mm x 8.79mm) | 0.213" (5.40mm) |
