Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7032T-3R3M1R9-2PFFIXED IND 3.3UH 1.9A 27.6MOHM SM |
3,814 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.9 A | - | Shielded | 27.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
SRU5028A-101YFIXED IND 100UH 470MA 800MOHM SM |
3,748 |
|
Datasheet |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 470 mA | 420mA | Shielded | 800mOhm Max | 15 @ 796kHz | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
SRR0735A-330MFIXED IND 33UH 1A 220 MOHM SMD |
3,502 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1 A | 1.04A | Shielded | 220mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
SLF7055T-150M2R1-3PFFIXED IND 15UH 2.2A 61 MOHM SMD |
3,443 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2.1A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.228" (5.80mm) |
|
SRU8028-150YFIXED IND 15UH 2A 66 MOHM SMD |
3,281 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2 A | 1.7A | Shielded | 66mOhm | 20 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
SRR0745A-470MFIXED IND 47UH 1.05A 210MOHM SMD |
3,236 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.05 A | 1.2A | Shielded | 210mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRU8028-330YFIXED IND 33UH 1.3A 147 MOHM SMD |
3,010 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.3 A | 1.1A | Shielded | 147mOhm | 20 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|

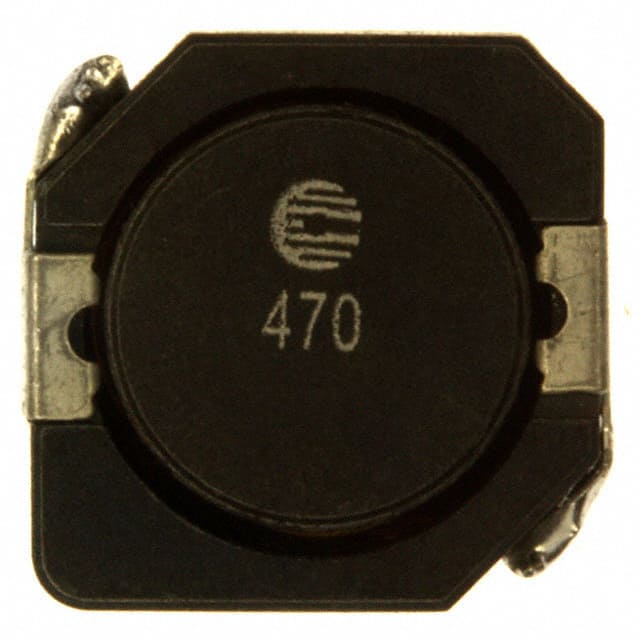

DR1040-470-RFIXED IND 47UH 1.9A 128 MOHM SMD |
2,988 |
|
Datasheet |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.9 A | 2.1A | Shielded | 128mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
SRU8028-2R5YFIXED IND 2.5UH 4.5A 13.6MOHM SM |
2,909 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 4.5 A | 4.2A | Shielded | 13.6mOhm | 15 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
PA4342.102ANLTFIXED IND 1UH 18A 3.25 MOHM SMD |
2,675 |
|
Datasheet |
PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 18 A | 26A | Shielded | 3.25mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRR0745A-681MFIXED IND 680UH 240MA 2.8OHM SMD |
2,650 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±20% | 240 mA | 280mA | Shielded | 2.8Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRU8028-101YFIXED IND 100UH 750MA 390MOHM SM |
2,415 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 750 mA | 700mA | Shielded | 390mOhm | 35 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRR0745A-560MFIXED IND 56UH 950MA 240MOHM SMD |
2,379 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 950 mA | 1.1A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
PM5022-151M-RCFIXED IND 150UH 1.4A 270MOHM SMD |
2,295 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.4 A | 2.6A | Unshielded | 270mOhm | 23 @ 5MHz | 796kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
|
SRR0745A-221MFIXED IND 220UH 420MA 950MOHM SM |
2,141 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 420 mA | 500mA | Shielded | 950mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRR0745A-271MFIXED IND 270UH 380MA 1.2OHM SMD |
2,046 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±20% | 380 mA | 460mA | Shielded | 1.2Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
MDMK3030T1R5MMVFIXED IND 1.5UH 3A 74 MOHM SMD |
1,328 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3 A | 3.4A | Shielded | 74mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SRR0735A-820MFIXED IND 82UH 630MA 480MOHM SMD |
1,161 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 630 mA | 650mA | Shielded | 480mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0745A-821MFIXED IND 820UH 220MA 3.5OHM SMD |
1,108 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±20% | 220 mA | 260mA | Shielded | 3.5Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
104CDMCCDS-R47MCFIXED IND 470NH 28A 1.7MOHM SMD |
43,347 |
|
Datasheet |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 28 A | 51A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
