Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0819R-72GFIXED IND 100UH 52MA 17.5 OHM TH |
0 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±2% | 52 mA | - | Unshielded | 17.5Ohm Max | 45 @ 2.5MHz | 9.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
SMRF1812-056MMOLDED UNSHIELDED INDUCTOR |
0 |
|
- |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Phenolic | 56 nH | ±20% | 770 mA | - | Unshielded | 250mOhm Max | 35 @ 50MHz | 850MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|
|
19M303JMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
19M | Axial | Tape & Reel (TR) | Active | Molded | - | 300 µH | ±5% | 107 mA | - | Unshielded | 8.7Ohm Max | 65 @ 790kHz | 5.3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
|
19M273JLFMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
19M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 270 µH | ±5% | 110 mA | - | Unshielded | 8.2Ohm Max | 65 @ 790kHz | 5.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
|
19M273JMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
19M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 270 µH | ±5% | 110 mA | - | Unshielded | 8.2Ohm Max | 65 @ 790kHz | 5.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
UP0.4C-330-RFIXED IND 33UH 640MA 560MOHM SMD |
0 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 640 mA | 630mA | Unshielded | 560mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

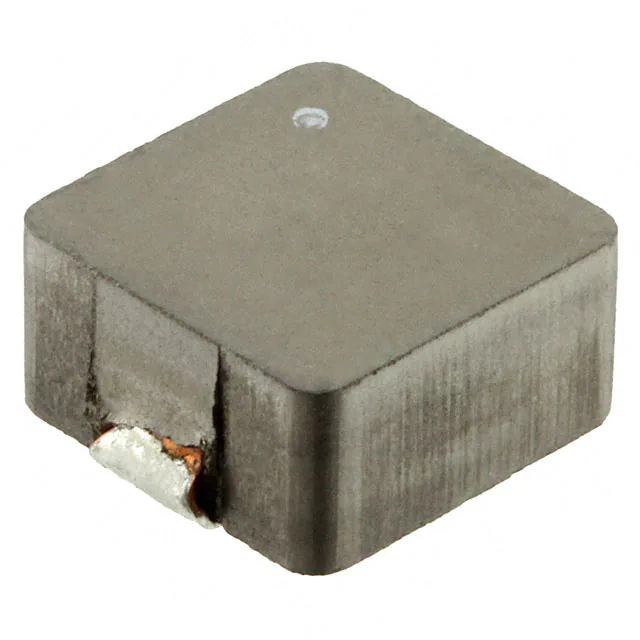

MPC1055L1R0CFIXED IND 1UH 18.5A 2.3 MOHM SMD |
0 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 1 µH | ±20% | 18.5 A | 21A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.461" L x 0.394" W (11.70mm x 10.00mm) | 0.217" (5.50mm) |
|
|
1782-02HFIXED IND 160NH 1.105A 120 MOHM |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 160 nH | ±3% | 1.105 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-03HFIXED IND 200NH 1.025A 140 MOHM |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 200 nH | ±3% | 1.025 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-05HFIXED IND 240NH 960MA 160MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 240 nH | ±3% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-07HFIXED IND 300NH 815MA 220MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 300 nH | ±3% | 815 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-09HFIXED IND 360NH 700MA 300MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 360 nH | ±3% | 700 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-11HFIXED IND 430NH 650MA 350MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 430 nH | ±3% | 650 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-13HFIXED IND 510NH 545MA 500MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 510 nH | ±3% | 545 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-15HFIXED IND 620NH 495MA 600MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 620 nH | ±3% | 495 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-17HFIXED IND 750NH 415MA 850MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 750 nH | ±3% | 415 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-19HFIXED IND 910NH 385MA 1 OHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 910 nH | ±3% | 385 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-21HFIXED IND 1.1UH 590MA 180MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.1 µH | ±3% | 590 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-23HFIXED IND 1.3UH 535MA 220MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.3 µH | ±3% | 535 mA | - | Unshielded | 220mOhm Max | 25 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-25HFIXED IND 1.6UH 455MA 300MOHM TH |
0 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.6 µH | ±3% | 455 mA | - | Unshielded | 300mOhm Max | 28 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
