Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

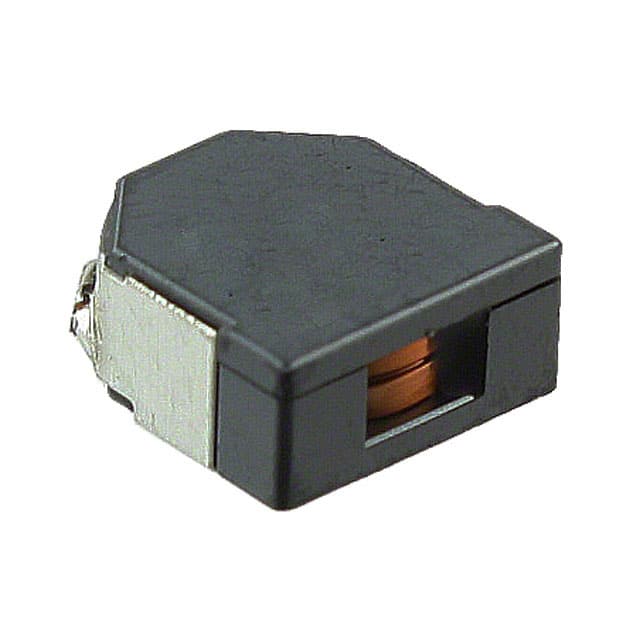

CDEIR8D38FNP-220NCFIXED IND 22UH 2.2A 88.3MOHM SMD |
0 |
|
Datasheet |
CDEIR8D38F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 2.2 A | 3A | Shielded | 88.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDEIR8D38FNP-100NCFIXED IND 10UH 3.4A 43.8MOHM SMD |
0 |
|
Datasheet |
CDEIR8D38F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 3.4 A | 4.6A | Shielded | 43.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
AX97-30100FIXED IND 10UH 4.6A 40 MOHM SMD |
0 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.6 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-30330FIXED IND 33UH 2.5A 110MOHM SMD |
0 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | - | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-30470FIXED IND 47UH 2A 160 MOHM SMD |
0 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
AX97-30221FIXED IND 220UH 1A 640 MOHM SMD |
0 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1 A | - | Unshielded | 640mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-304R7FIXED IND 4.7UH 6A 20 MOHM SMD |
0 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
1330R-00KFIXED IND 150NH 1.23A 100MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±10% | 1.23 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-02KFIXED IND 180NH 1.12A 120MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±10% | 1.12 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-04KFIXED IND 220NH 1.04A 140MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 1.04 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-06KFIXED IND 270NH 975MA 160MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 975 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-08KFIXED IND 330NH 830MA 220MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 330 nH | ±10% | 830 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-10KFIXED IND 390NH 710MA 300MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 390 nH | ±10% | 710 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-12KFIXED IND 470NH 660MA 350MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±10% | 660 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-14KFIXED IND 560NH 550MA 500MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 560 nH | ±10% | 550 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-16KFIXED IND 680NH 500MA 600MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 680 nH | ±10% | 500 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-18KFIXED IND 820NH 420MA 850MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±10% | 420 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-22KFIXED IND 1.2UH 620MA 180MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 1.2 µH | ±10% | 620 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-24KFIXED IND 1.5UH 560MA 220MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 1.5 µH | ±10% | 560 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-26KFIXED IND 1.8UH 480MA 300MOHM SM |
0 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 1.8 µH | ±10% | 480 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
