Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC30R33KTFIXED IND 330NH 900MA 220MOHM TH |
0 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Tape & Box (TB) | Active | - | - | 330 nH | ±10% | 900 mA | - | Shielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 100°C | 25 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC30R39KTFIXED IND 390NH 770MA 300MOHM TH |
0 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Tape & Box (TB) | Active | - | - | 390 nH | ±10% | 770 mA | - | Shielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 100°C | 25 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC30R56KTFIXED IND 560NH 595MA 500MOHM TH |
0 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Tape & Box (TB) | Active | - | - | 560 nH | ±10% | 595 mA | - | Shielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 100°C | 25 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC30R68KTFIXED IND 680NH 540MA 600MOHM TH |
0 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Tape & Box (TB) | Active | - | - | 680 nH | ±10% | 540 mA | - | Shielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 100°C | 25 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
SC301R8KTFIXED IND |
0 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

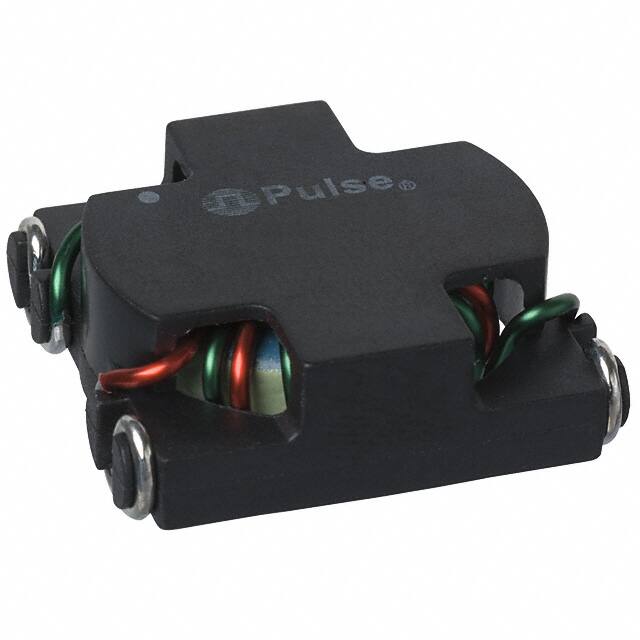

PE-53363NLFIXED IND 2.1UH 22.4A 3.4MOHM SM |
0 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 2.1 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.110" L x 1.000" W (28.19mm x 25.40mm) | 0.390" (9.91mm) |
|
|
PE-53363NLTFIXED IND 2.1UH 22.4A 3.4MOHM SM |
0 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.1 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.110" L x 1.000" W (28.19mm x 25.40mm) | 0.390" (9.91mm) |
|
PE-54040SNLTFIXED IND 38UH 3A 50 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 38 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
9250-476FIXED IND 47MH 13MA 473 OHM TH |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 13 mA | 5.5mA | Shielded | 473Ohm Max | 23 @ 79kHz | 160kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-276FIXED IND 27MH 16MA 308 OHM TH |
0 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 mH | ±10% | 16 mA | 8mA | Shielded | 308Ohm Max | 27 @ 79kHz | 210kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
PM7232S-1R5MFIXED IND 1.5UH 9A 9.5 MOHM SMD |
0 |
|
Datasheet |
PM7232S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±20% | 9 A | - | Shielded | 9.5mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PM7232S-R47MFIXED IND 470NH 15A 3 MOHM SMD |
0 |
|
Datasheet |
PM7232S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±20% | 15 A | - | Shielded | 3mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
MP2A-3R3-RFIXED IND 3.3UH 1.75A 98MOHM SMD |
0 |
|
Datasheet |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 3.3 µH | ±20% | 1.75 A | 2.23A | Unshielded | 98mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
UP0.4C-2R2-RFIXED IND 2.2UH 2.15A 50MOHM SMD |
0 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.15 A | 2.38A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
IHLE5050FHER330M5AAUTOMOTIVE INDUCTOR |
0 |
|
Datasheet |
IHLE-5050FH-5A | Nonstandard | Bulk | Active | Wirewound | - | 33 µH | ±20% | 6.9 A | 6.2A | Shielded | 49.25mOhm Max | - | 5.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
1210R-101HFIXED IND 100NH 1.018A 200 MOHM |
0 |
|
Datasheet |
1210R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±3% | 1.018 A | - | Unshielded | 200mOhm Max | 30 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.128" L x 0.095" W (3.26mm x 2.41mm) | 0.101" (2.57mm) |
|
|
1210R-121HFIXED IND 120NH 971MA 220MOHM SM |
0 |
|
Datasheet |
1210R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±3% | 971 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.128" L x 0.095" W (3.26mm x 2.41mm) | 0.101" (2.57mm) |
|
|
1210R-151HFIXED IND 150NH 910MA 250MOHM SM |
0 |
|
Datasheet |
1210R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±3% | 910 mA | - | Unshielded | 250mOhm Max | 30 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.128" L x 0.095" W (3.26mm x 2.41mm) | 0.101" (2.57mm) |
|
|
1210R-181HFIXED IND 180NH 860MA 280MOHM SM |
0 |
|
Datasheet |
1210R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±3% | 860 mA | - | Unshielded | 280mOhm Max | 30 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.128" L x 0.095" W (3.26mm x 2.41mm) | 0.101" (2.57mm) |
|
|
1210R-221HFIXED IND 220NH 805MA 320MOHM SM |
0 |
|
Datasheet |
1210R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±3% | 805 mA | - | Unshielded | 320mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.128" L x 0.095" W (3.26mm x 2.41mm) | 0.101" (2.57mm) |
