Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP2A-2R2-RFIXED IND 2.2UH 1.87A 86MOHM SMD |
0 |
|
Datasheet |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 2.2 µH | ±20% | 1.87 A | 2.64A | Unshielded | 86mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|

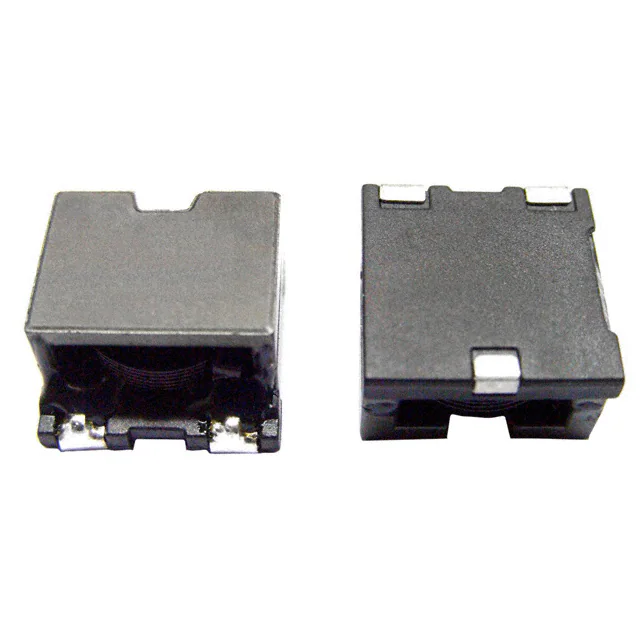

SCEP147L-100FIXED IND 10UH 10.2A 9.85MOHM SM |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 10.2 A | 9.2A | Shielded | 9.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-120FIXED IND 12UH 9A 13.3 MOHM SMD |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 9 A | 8A | Shielded | 13.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-1R1FIXED IND 1.1UH 22A 2.65MOHM SMD |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.1 µH | ±20% | 22 A | 26.4A | Shielded | 2.65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-2R0FIXED IND 2UH 19.5A 3.5 MOHM SMD |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 µH | ±20% | 19.5 A | 19.6A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-3R1FIXED IND 3.1UH 16.2A 3.9MOHM SM |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.1 µH | ±20% | 16.2 A | 16A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-4R5FIXED IND 4.5UH 14A 5.5 MOHM SMD |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.5 µH | ±20% | 14 A | 13.6A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-6R1FIXED IND 6.4UH 13.5A 7.5MOHM SM |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.4 µH | ±20% | 13.5 A | 11.6A | Shielded | 7.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-8R0FIXED IND 8UH 11.5A 7.8 MOHM SMD |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 8 µH | ±20% | 11.5 A | 10A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-R50FIXED IND 500NH 24A 2.1 MOHM SMD |
0 |
|
Datasheet |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | ±30% | 24 A | 39.6A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|

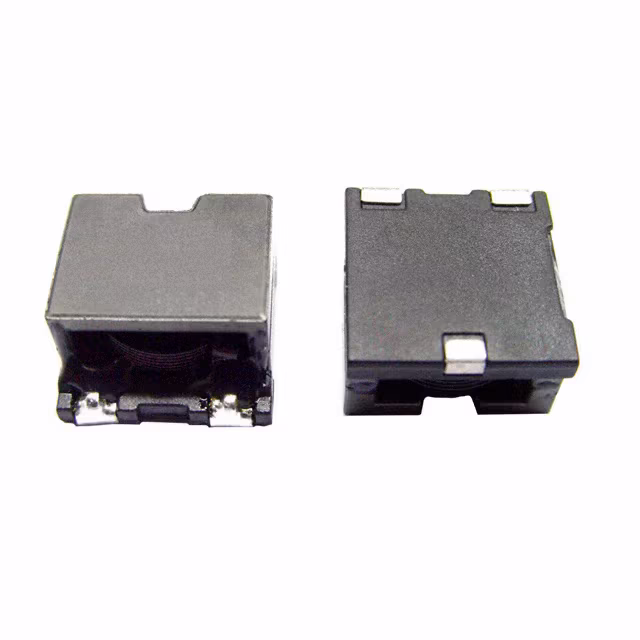

SCEP147S-1R5FIXED IND 1.5UH 16A 3.5 MOHM SMD |
0 |
|
Datasheet |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 16 A | 27.2A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147S-3R4FIXED IND 3.4UH 12.3A 5.5MOHM SM |
0 |
|
Datasheet |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.4 µH | ±20% | 12.3 A | 18.4A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147S-7R7FIXED IND 7.7UH 10A 9.85MOHM SMD |
0 |
|
Datasheet |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.7 µH | ±20% | 10 A | 12.4A | Shielded | 9.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147S-R40FIXED IND 400NH 23A 2.1 MOHM SMD |
0 |
|
Datasheet |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | 400 nH | ±30% | 23 A | 52.8A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
XFL2006-104MECFIXED IND 100UH 135MA 12.25OHM |
8 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 100 µH | ±20% | 135 mA | 65mA | Shielded | 12.25Ohm Max | - | 13MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
|
1025-94HFIXED IND 100NH 1.38A 80 MOHM TH |
0 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±3% | 1.38 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-96HFIXED IND 120NH 1.3A 90 MOHM TH |
0 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 120 nH | ±3% | 1.3 A | - | Unshielded | 90mOhm Max | 40 @ 25MHz | 640MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-00HFIXED IND 150NH 1.23A 100MOHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±3% | 1.23 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-02HFIXED IND 180NH 1.12A 120MOHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 180 nH | ±3% | 1.12 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-04HFIXED IND 220NH 1.04A 140MOHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±3% | 1.04 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
