Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

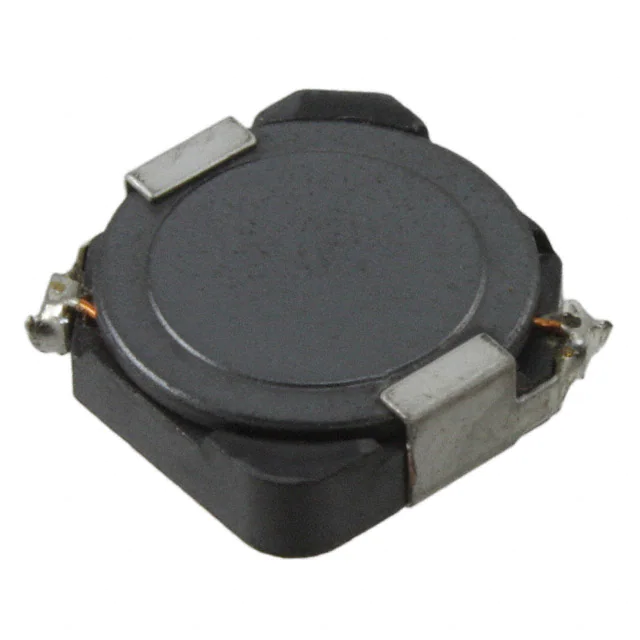

LMXS1010N100LTASFIXED IND 10UH 3.18A 59 MOHM SMD |
0 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.18 A | - | Shielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
744770147WFIXED IND 47UH 2.7A 100 MOHM SMD |
0 |
|
Datasheet |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 3A | Shielded | 100mOhm Max | - | 7.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.335" (8.50mm) |
|
|
74477020WFIXED IND 100UH 2.2A 220MOHM SMD |
0 |
|
Datasheet |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.2 A | 2.4A | Shielded | 220mOhm Max | - | 5.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.335" (8.50mm) |
|
|
744770247WFIXED IND 470UH 900MA 980MOHM SM |
0 |
|
Datasheet |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 900 mA | 900mA | Shielded | 980mOhm Max | - | 2.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.335" (8.50mm) |
|
|
74477030WFIXED IND 1MH 600MA 1.82 OHM SMD |
0 |
|
Datasheet |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 600 mA | 700mA | Shielded | 1.82Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.335" (8.50mm) |
|
CLF12577NIT-221M-DFIXED IND 220UH 1.55A 336MOHM SM |
0 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.55 A | 1.55A | Shielded | 336mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
831530470FIXED IND 470NH 15A 3.7 MOHM SMD |
0 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 470 nH | ±20% | 15 A | 20A | Shielded | 3.7mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
|
831530680FIXED IND 680NH 15A 5.5 MOHM SMD |
0 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 680 nH | ±20% | 15 A | 20A | Shielded | 5.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
|
831532200FIXED IND 2.2UH 8A 16.4 MOHM SMD |
0 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 8 A | 13A | Shielded | 16.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
|
831533300FIXED IND 3.3UH 6A 30 MOHM SMD |
0 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 6 A | 11A | Shielded | 30mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
|
831536800FIXED IND 6.8UH 4.5A 53.8MOHM SM |
0 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 6.8 µH | ±20% | 4.5 A | 6.5A | Shielded | 53.8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
|
831538200FIXED IND 8.2UH 4A 70 MOHM SMD |
0 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 8.2 µH | ±20% | 4 A | 6A | Shielded | 70mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
|
831531001FIXED IND 10UH 3.5A 80 MOHM SMD |
0 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | 3.5 A | 5A | Shielded | 80mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
|
831531501FIXED IND 15UH 3A 120 MOHM SMD |
0 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 15 µH | ±20% | 3 A | 4.5A | Shielded | 120mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
HCM1A1105V2-R68-RFIXED IND 680NH 24.5A 1.93 MOHM |
0 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 24.5 A | 30A | Shielded | 1.93mOhm Max | - | 57MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
APCK00131111100M80HIGHT CURRENT TYPE |
0 |
|
Datasheet |
APCK | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.2 A | 7.1A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.413" W (12.80mm x 10.50mm) | 0.421" (10.70mm) |
|
|
APCK00080809100M80HIGHT CURRENT TYPE |
0 |
|
Datasheet |
APCK | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.7 A | 4.3A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.354" (9.00mm) |
|
|
APCK00100910100M80HIGHT CURRENT TYPE |
0 |
|
Datasheet |
APCK | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 5A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
|
APCK00080809220M80HIGHT CURRENT TYPE |
0 |
|
Datasheet |
APCK | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 3A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.354" (9.00mm) |
|
|
CF4H1008-270GFERRITE HP CHIP INDUCTOR |
0 |
|
Datasheet |
CF4H1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±2% | 1.08 A | - | Unshielded | 240mOhm Max | 45 @ 75MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.120" L x 0.110" W (3.05mm x 2.79mm) | 0.090" (2.29mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
