Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHSM3825ER820LFIXED IND 82UH 560MA 1.24OHM SMD |
0 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±15% | 560 mA | 510mA | Unshielded | 1.24Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
SBC6-332-281FIXED IND 3.3MH 280MA 4.24OHM TH |
8 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 280 mA | 610mA | Unshielded | 4.24Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
2150-01KFIXED IND 560NH 2.1A 70 MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±10% | 2.1 A | - | Unshielded | 70mOhm Max | 65 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-02KFIXED IND 680NH 1.96A 80 MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±10% | 1.96 A | - | Unshielded | 80mOhm Max | 65 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-03KFIXED IND 820NH 1.67A 110MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±10% | 1.67 A | - | Unshielded | 110mOhm Max | 65 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-04KFIXED IND 1UH 1.48A 140 MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±10% | 1.48 A | - | Unshielded | 140mOhm Max | 65 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-05KFIXED IND 1.2UH 1.27A 190MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±10% | 1.27 A | - | Unshielded | 190mOhm Max | 40 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-06KFIXED IND 1.5UH 1.05A 280MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±10% | 1.05 A | - | Unshielded | 280mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-07KFIXED IND 1.8UH 915MA 370MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±10% | 915 mA | - | Unshielded | 370mOhm Max | 40 @ 7.9MHz | 150MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-08KFIXED IND 2.2UH 785MA 500MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±10% | 785 mA | - | Unshielded | 500mOhm Max | 40 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-10KFIXED IND 2.7UH 690MA 650MOHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±10% | 690 mA | - | Unshielded | 650mOhm Max | 40 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-12KFIXED IND 3.3UH 555MA 1 OHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.3 µH | ±10% | 555 mA | - | Unshielded | 1Ohm Max | 40 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-14KFIXED IND 3.9UH 505MA 1.2 OHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.9 µH | ±10% | 505 mA | - | Unshielded | 1.2Ohm Max | 40 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-16KFIXED IND 4.7UH 415MA 1.8 OHM TH |
0 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±10% | 415 mA | - | Unshielded | 1.8Ohm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|

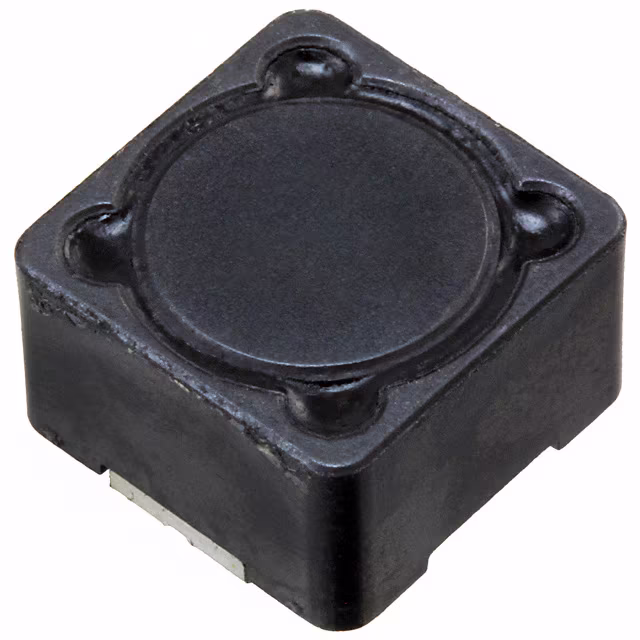

LMXS121JM470HTASFIXED IND 47UH 2.5A 100 MOHM SMD |
0 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.5 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
MBH10145C-100MA=P3FIXED IND 10UH 3.3A 37 MOHM SMD |
0 |
|
Datasheet |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.3 A | 3.1A | Shielded | 37mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-150MA=P3FIXED IND 15UH 2.5A 48 MOHM SMD |
0 |
|
Datasheet |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 2.6A | Shielded | 48mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-220MA=P3FIXED IND 22UH 2.3A 60 MOHM SMD |
0 |
|
Datasheet |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.3 A | 2.2A | Shielded | 60mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-470MA=P3FIXED IND 47UH 1.7A 100MOHM SMD |
0 |
|
Datasheet |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.7 A | 1.6A | Shielded | 100mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MBH10145C-5R6NA=P3FIXED IND 5.6UH 3.7A 22MOHM SMD |
0 |
|
Datasheet |
MBH10145C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 3.7 A | 4.1A | Shielded | 22mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
