Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB9012-100KLFIXED IND 10UH 3.4A 45 MOHM TH |
2,098 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 3.4 A | - | Unshielded | 45mOhm Max | 50 @ 2.52MHz | 14MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-560KLFIXED IND 56UH 1.48A 180 MOHM TH |
1,767 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.48 A | - | Unshielded | 180mOhm Max | 30 @ 2.52MHz | 5.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-392KLFIXED IND 3.9MH 270MA 9.9 OHM TH |
1,701 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 270 mA | - | Unshielded | 9.9Ohm Max | 15 @ 252kHz | 550kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-182KLFIXED IND 1.8MH 390MA 5.3 OHM TH |
1,640 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 390 mA | - | Unshielded | 5.3Ohm Max | 15 @ 252kHz | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
#A915AY-2R0M=P3FIXED IND 2UH 2.64A 0.027OHM SMD |
1,635 |
|
Datasheet |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±20% | 2.64 A | 2.92A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
RLB9012-470KLFIXED IND 47UH 1.77A 160 MOHM TH |
1,367 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.77 A | - | Unshielded | 160mOhm Max | 30 @ 2.52MHz | 6.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
ASPI-0315FS-4R7M-T2FIXED IND 4.7UH 1.6A 100MOHM SMD |
66,981 |
|
Datasheet |
ASPI-0315FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.09 A | 1.1A | Shielded | 163mOhm Max | - | 46MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
0420CDMCCDS-4R7MCFIXED IND 4.7UH 2.7A 105MOHM SMD |
17,701 |
|
Datasheet |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 2.7 A | 3A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
CLF6045T-3R3N-DFIXED IND 3.3UH 3.5A 24.7MOHM SM |
12,534 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.5 A | 3.1A | Shielded | 24.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
AIAP-02-270KFIXED IND 27UH 2.5A 56 MOHM TH |
11,563 |
|
Datasheet |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 27 µH | ±10% | 2.5 A | - | Unshielded | 56mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
HCM1A0503V2-1R0-RFIXED IND 1UH 2.8A 11.4MOHM SMD |
8,534 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 2.8 A | 2.3A | Shielded | 11.4mOhm Max | - | 53MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AIAP-02-330KFIXED IND 33UH 2.2A 76 MOHM TH |
4,999 |
|
Datasheet |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 33 µH | ±10% | 2.2 A | - | Unshielded | 76mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
|
AIAP-02-151KFIXED IND 150UH 1A 340 MOHM TH |
4,196 |
|
Datasheet |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 150 µH | ±10% | 1 A | - | Unshielded | 340mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
CDH53NP-2R2MCFIXED IND 2.2UH 2.03A 66MOHM SMD |
3,607 |
|
Datasheet |
CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.03 A | - | Unshielded | 66mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.126" (3.20mm) |
|

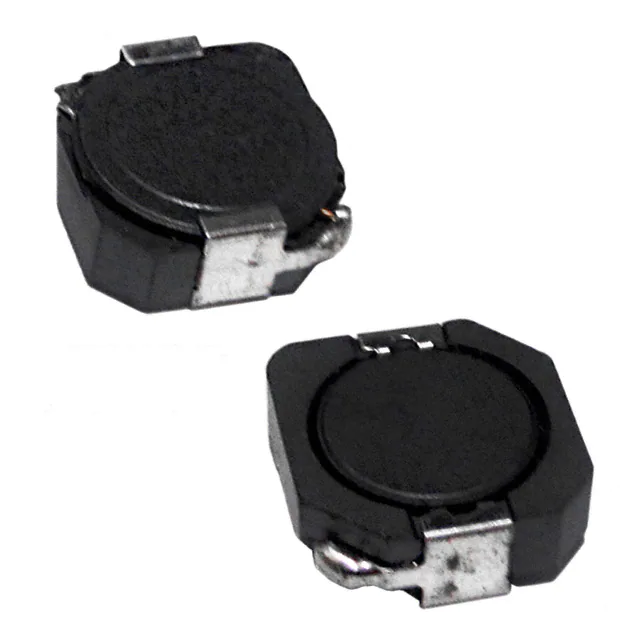

ASPI-0428S-120M-TFIXED IND 12UH 840MA 131.6 MOHM |
3,507 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 840 mA | - | Shielded | 131.6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
74405042022FIXED IND 2.2UH 2.6A 48 MOHM SMD |
2,569 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.6 A | 7.6A | Shielded | 48mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.079" (2.00mm) |
|
CDRH4D28CLDNP-3R3PCFIXED IND 3.3UH 3.2A 28.9MOHM SM |
2,229 |
|
Datasheet |
CDRH4D28C/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±25% | 3.2 A | 1.6A | Shielded | 28.9mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
|
74405042010FIXED IND 1UH 4A 26 MOHM SMD |
2,127 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 4 A | 9.5A | Shielded | 26mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.079" (2.00mm) |
|
AMDLA4012S-R47MTFIXED IND 470NH 8.8A 20MOHM SMD |
12,306 |
|
Datasheet |
AMDLA4012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 8.8 A | 13A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|
HMLQ32251T-4R7MSFIXED IND 4.7UH 1.7A 240MOHM SMD |
7,840 |
|
Datasheet |
HMLQ32251T | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 1.7 A | 1.8A | Shielded | 240mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
