Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4307R-125KFIXED IND 1.2MH 115MA 22.1OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 mH | ±10% | 115 mA | 35mA | Shielded | 22.1Ohm Max | 50 @ 250kHz | 3MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-155KFIXED IND 1.5MH 110MA 26.5OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 mH | ±10% | 110 mA | 33mA | Shielded | 26.5Ohm Max | 50 @ 250kHz | 2.8MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-185KFIXED IND 1.8MH 105MA 29.9OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 mH | ±10% | 105 mA | 30mA | Shielded | 29.9Ohm Max | 50 @ 250kHz | 2.6MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-225KFIXED IND 2.2MH 99MA 33.8 OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.2 mH | ±10% | 99 mA | 27mA | Shielded | 33.8Ohm Max | 50 @ 250kHz | 2.4MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-275KFIXED IND 2.7MH 83MA 47.3 OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 mH | ±10% | 83 mA | 25mA | Shielded | 47.3Ohm Max | 50 @ 250kHz | 2.2MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-335KFIXED IND 3.3MH 80MA 53 OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 mH | ±10% | 80 mA | 22mA | Shielded | 53Ohm Max | 50 @ 250kHz | 2MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-395KFIXED IND 3.9MH 67MA 73.8 OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 mH | ±10% | 67 mA | 20mA | Shielded | 73.8Ohm Max | 50 @ 250kHz | 1.9MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-475KFIXED IND 4.7MH 63MA 81.6 OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 mH | ±10% | 63 mA | 19mA | Shielded | 81.6Ohm Max | 50 @ 250kHz | 1.7MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-565KFIXED IND 5.6MH 56MA 98.9 OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 5.6 mH | ±10% | 56 mA | 17mA | Shielded | 98.9Ohm Max | 50 @ 250kHz | 1.6MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-685KFIXED IND 6.8MH 54MA 111 OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 mH | ±10% | 54 mA | 16mA | Shielded | 111Ohm Max | 50 @ 250kHz | 1.4MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-825KFIXED IND 8.2UH 52MA 119 OHM TH |
0 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 8.2 µH | ±10% | 52 mA | 15mA | Shielded | 119Ohm Max | 50 @ 250kHz | 1.2MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
750341422FIXED IND 2.2MH 531 MOHM TH |
0 |
|
Datasheet |
MID-DC16US | 8-DIP Module | Tray | Active | - | - | 2.2 mH | ±10% | - | - | - | 531mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.453" L x 0.425" W (11.50mm x 10.80mm) | 0.472" (12.00mm) |
|

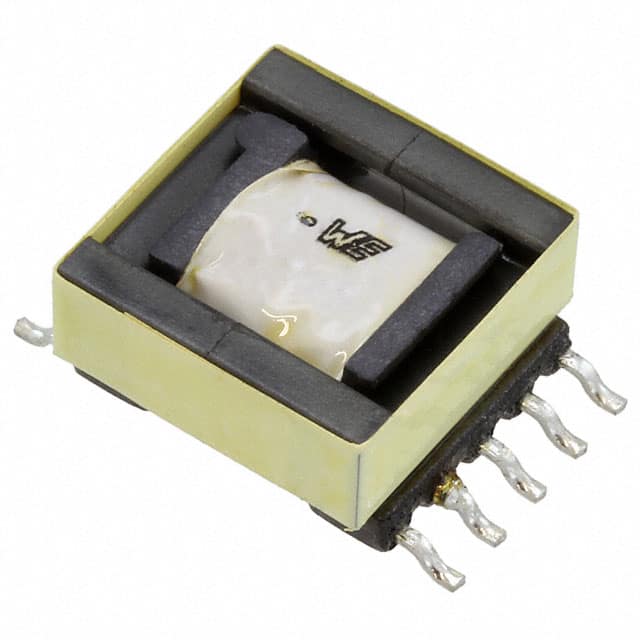

750341456FIXED IND 300UH 596 MOHM SMD |
0 |
|
Datasheet |
MID-DC16US | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | - | - | 300 µH | ±10% | - | - | Unshielded | 596mOhm | - | - | - | - | 10 kHz | - | Surface Mount | - | 0.824" L x 0.575" W (20.92mm x 14.60mm) | 0.325" (8.25mm) |
|
VLF504012MT-220MFIXED IND 22UH 840MA 580MOHM SMD |
21 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 840 mA | 800mA | Shielded | 580mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.047" (1.20mm) |
|
CTH6EF-391K390UH MINI AXL P-LINE INDUCTOR |
2 |
|
Datasheet |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±10% | 260 mA | 150mA | Unshielded | 3Ohm Max | - | 1.7MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
MLRF0603-0068JMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 6.8 nH | ±5% | 840 mA | - | Unshielded | 100mOhm Max | 30 @ 250MHz | 5.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-012JMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 12 nH | ±5% | 735 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-015JMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 15 nH | ±5% | 645 mA | - | Unshielded | 170mOhm Max | 35 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-0047JMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 4.7 nH | ±5% | 885 mA | - | Unshielded | 90mOhm Max | 22 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-039JMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 39 nH | ±5% | 540 mA | - | Unshielded | 240mOhm Max | 40 @ 250MHz | 2.2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
