Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM3015T-1R0M-CAFIXED IND 1UH 3.5A 52.9 MOHM SMD |
0 |
|
Datasheet |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.5 A | 5.1A | Shielded | 52.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
125CDMCCDS-2R2MCFIXED IND 2.2UH 20A 4.2MOHM SMD |
0 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 20 A | 34A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
125CDMCCDS-R47MCFIXED IND 470NH 37A 1.1MOHM SMD |
0 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 37 A | 62A | Shielded | 1.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
125CDMCCDS-R68MCFIXED IND 680NH 33A 1.3MOHM SMD |
0 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 33 A | 60A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
125CDMCCDS-R82MCFIXED IND 820NH 31A 1.8MOHM SMD |
0 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 31 A | 50A | Shielded | 1.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
UP3B-6R8-RFIXED IND 6.8UH 5.8A 18.3MOHM SM |
0 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.8 A | 6.2A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|

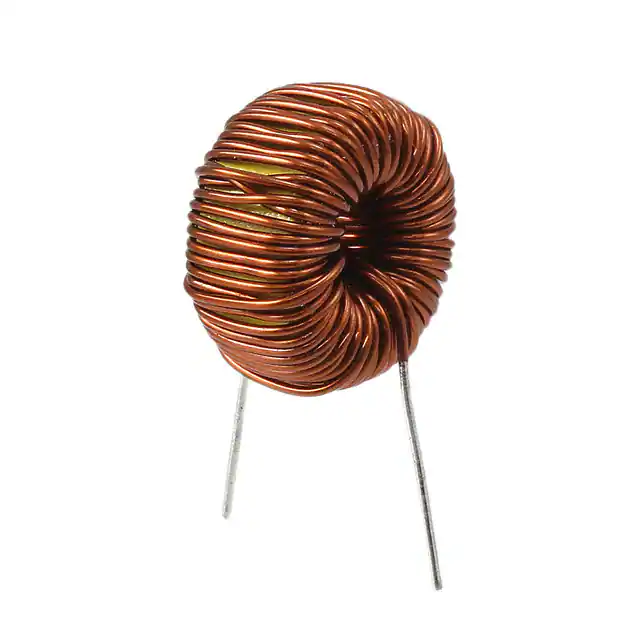

DPO-1.0-150FIXED IND 150UH 1A 123 MOHM TH |
0 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | - | 1 A | - | Unshielded | 123mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - |
|
1537-34KFIXED IND 8.2UH 410MA 600MOHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 8.2 µH | ±10% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-38KFIXED IND 12UH 305MA 1.1 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 12 µH | ±10% | 305 mA | - | Unshielded | 1.1Ohm Max | 65 @ 2.5MHz | 42MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-40KFIXED IND 15UH 271MA 1.4 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 15 µH | ±10% | 271 mA | - | Unshielded | 1.4Ohm Max | 65 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-42KFIXED IND 18UH 213MA 2.25 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 18 µH | ±10% | 213 mA | - | Unshielded | 2.25Ohm Max | 75 @ 2.5MHz | 34MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-46JFIXED IND 24UH 202MA 2.5 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 24 µH | ±5% | 202 mA | - | Unshielded | 2.5Ohm Max | 60 @ 2.5MHz | 26MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-47KFIXED IND 27UH 198MA 2.6 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 27 µH | ±10% | 198 mA | - | Unshielded | 2.6Ohm Max | 60 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-48JFIXED IND 27UH 198MA 2.6 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 27 µH | ±5% | 198 mA | - | Unshielded | 2.6Ohm Max | 60 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-50JFIXED IND 30UH 191MA 2.8 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 30 µH | ±5% | 191 mA | - | Unshielded | 2.8Ohm Max | 65 @ 2.5MHz | 21MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-51KFIXED IND 33UH 185MA 3 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 33 µH | ±10% | 185 mA | - | Unshielded | 3Ohm Max | 65 @ 2.5MHz | 19MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-52JFIXED IND 33UH 185MA 3 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 33 µH | ±5% | 185 mA | - | Unshielded | 3Ohm Max | 65 @ 2.5MHz | 19MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
DRA125-3R3-RFIXED IND 3.3UH 9.69A 5.8MOHM SM |
0 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 9.69 A | 12.77A | Shielded | 5.8mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SMRF3013-393JMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMRF3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±5% | 76 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 6.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.120" W (7.94mm x 3.05mm) | 0.145" (3.68mm) |
|
|
511-10HFIXED IND 360NH 1.515A 98MOHM TH |
0 |
|
Datasheet |
511 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 360 nH | ±3% | 1.515 A | - | Unshielded | 98mOhm Max | 45 @ 25MHz | 345MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
