Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0503-123JLFIXED IND 12MH 25MA 148 OHM SMD |
2,416 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±5% | 25 mA | 38mA | Unshielded | 148Ohm Max | 30 @ 79.6kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
VLCF4020T-270MR48FIXED IND 27UH 480MA 496MOHM SMD |
2,361 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 480 mA | 480mA | Shielded | 496mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
744766147FIXED IND 47UH 140MA 5 OHM SMD |
2,073 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 140 mA | - | Unshielded | 5Ohm Max | 50 @ 2.52MHz | 12MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
SDR0503-392JLFIXED IND 3.9MH 42MA 40 OHM SMD |
2,062 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±5% | 42 mA | 60mA | Unshielded | 40Ohm Max | 40 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-180MLFIXED IND 18UH 950MA 210MOHM SMD |
1,810 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 950 mA | 1.3A | Unshielded | 210mOhm Max | 20 @ 2.52MHz | 24MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-822JLFIXED IND 8.2MH 30MA 92 OHM SMD |
1,675 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±5% | 30 mA | 45mA | Unshielded | 92Ohm Max | 40 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
NR10050T4R9NFIXED IND 4.9UH 6A 19.5 MOHM SMD |
38,988 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.9 µH | ±30% | 6 A | 6.6A | Shielded | 19.5mOhm Max | - | 23MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
ASPI-8040S-560M-TFIXED IND 56UH 1.45A 148MOHM SMD |
6,939 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.45 A | 1.55A | Shielded | 148mOhm | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
B82144F2102K000FIXED IND 1UH 4.45A 0.043OHM TH |
5,906 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 4.45 A | 7.7A | Unshielded | 43mOhm Max | 50 @ 2.52MHz | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
|
ASPI-8040S-680M-TFIXED IND 68UH 1.25A 196MOHM SMD |
3,930 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.25 A | 1.45A | Shielded | 196mOhm | - | 4.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
B82144F2273K000FIXED IND 27UH 2A 0.2OHM TH |
2,941 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 2 A | 1.8A | Unshielded | 200mOhm Max | 40 @ 252kHz | 9.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

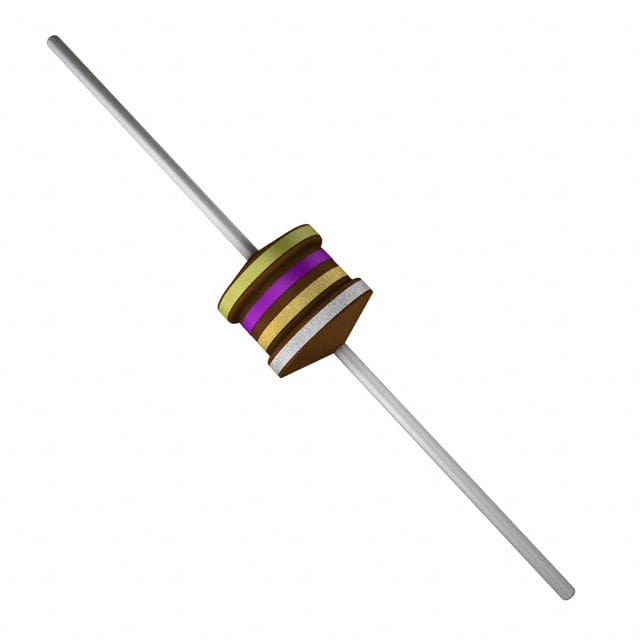

B82144F2472K000FIXED IND 4.7UH 3.05A 0.08OHM TH |
2,804 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 3.05 A | 4A | Unshielded | 80mOhm Max | 50 @ 2.52MHz | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
13R474CFIXED IND 470UH 450MA 1.05OHM TH |
1,512 |
|
Datasheet |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 470 µH | ±10% | 450 mA | - | Unshielded | 1.05Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
74405020022FIXED IND 2.5UH 1.25A 170MOHM SM |
7,556 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 1.25 A | 2.15A | Shielded | 170mOhm Max | - | 53MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
IFSC1111ABER100M01FIXED IND 10UH 1A 336 MOHM SMD |
7,183 |
|
Datasheet |
IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1 A | 800mA | Shielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
|
IFSC0806AZER4R7M01FIXED IND 4.7UH 900MA 398MOHM SM |
6,499 |
|
Datasheet |
IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 900 mA | 850mA | Shielded | 398mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
HL028R2BTTRFIXED IND 8.2NH 255MA 570MOHM SM |
5,029 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 8.2 nH | ±0.1nH | 255 mA | - | Unshielded | 570mOhm Max | 29 @ 450MHz | 3.95GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
74405024015FIXED IND 1.5UH 2.1A 72 MOHM SMD |
4,915 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.1 A | 3.5A | Shielded | 72mOhm Max | - | 68MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IFSC0806AZER220M01FIXED IND 22UH 300MA 2.84OHM SMD |
4,221 |
|
Datasheet |
IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 300 mA | 430mA | Shielded | 2.84Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQH5BPB220MT0LFIXED IND 22UH 1.05A 310.8 MOHM |
3,715 |
|
Datasheet |
LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.05 A | 1.4A | Shielded | 310.8mOhm Max | - | 15MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
