Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1210R-393JFIXED IND 39UH 179MA 5 OHM SMD |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±5% | 179 mA | - | Shielded | 5Ohm Max | 40 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-471JFIXED IND 470NH 653MA 450MOHM SM |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±5% | 653 mA | - | Shielded | 450mOhm Max | 40 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-472JFIXED IND 4.7UH 402MA 1 OHM SMD |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±5% | 402 mA | - | Shielded | 1Ohm Max | 40 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-473JFIXED IND 47UH 171MA 5.5 OHM SMD |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±5% | 171 mA | - | Shielded | 5.5Ohm Max | 40 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-561JFIXED IND 560NH 619MA 500MOHM SM |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±5% | 619 mA | - | Shielded | 500mOhm Max | 40 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-563JFIXED IND 56UH 160MA 6.3 OHM SMD |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±5% | 160 mA | - | Shielded | 6.3Ohm Max | 40 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-681JFIXED IND 680NH 590MA 550MOHM SM |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±5% | 590 mA | - | Shielded | 550mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-683JFIXED IND 68UH 152MA 7 OHM SMD |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±5% | 152 mA | - | Shielded | 7Ohm Max | 40 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-821JFIXED IND 820NH 565MA 600MOHM SM |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±5% | 565 mA | - | Shielded | 600mOhm Max | 40 @ 25MHz | 170MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-822JFIXED IND 8.2UH 308MA 1.7OHM SMD |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±5% | 308 mA | - | Shielded | 1.7Ohm Max | 40 @ 7.9MHz | 32MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210R-823JFIXED IND 82UH 137MA 8.5 OHM SMD |
0 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±5% | 137 mA | - | Shielded | 8.5Ohm Max | 40 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
MGV0503R47M-10FIXED IND 470NH 12.2A 7.04 MOHM |
25 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 12.2 A | 16A | Shielded | 7.04mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.201" W (5.50mm x 5.10mm) | 0.130" (3.30mm) |
|
LTF5022T-220MR95-DFIXED IND 22UH 1.02A 340MOHM SMD |
13 |
|
Datasheet |
LTF5022T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.02 A | 950mA | Shielded | 340mOhm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.197" W (6.50mm x 5.00mm) | 0.087" (2.20mm) |
|

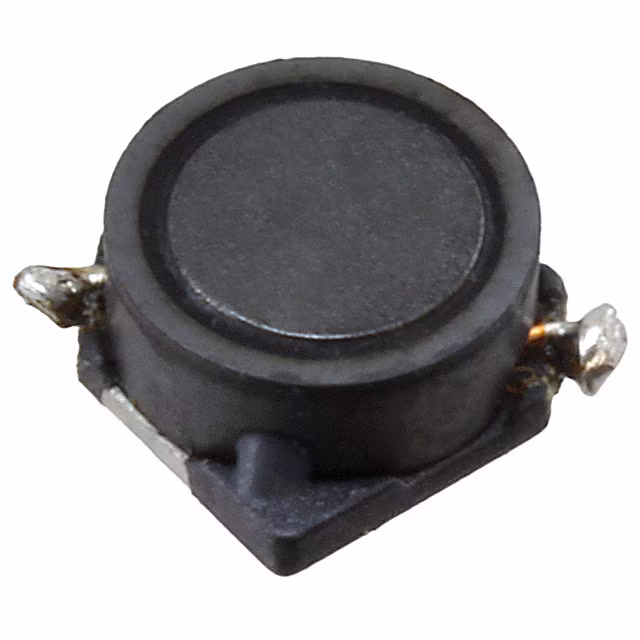

LMXS06C6M100FTASFIXED IND 10UH 1.3A 98 MOHM SMD |
9 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | - | Shielded | 98mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
VLF403212MT-2R2M-CAFIXED IND 2.2UH 2.48A 65MOHM SMD |
2 |
|
Datasheet |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.48 A | 2.05A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.047" (1.20mm) |
|
|
VLF403212MT-3R3M-CAFIXED IND 3.3UH 1.91A 91MOHM SMD |
2 |
|
Datasheet |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.91 A | 1.65A | Shielded | 91mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.047" (1.20mm) |
|
CLF10040T-471M-DFIXED IND 470UH 440MA 1.452 OHM |
1 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 440 mA | 560mA | Shielded | 1.452Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
DR74-101FIXED IND 100UH 860MA 383MOHM SM |
0 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 860 mA | 990mA | Shielded | 383mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|
CLF10040T-1R5N-DFIXED IND 1.5UH 5.8A 9.23MOHM SM |
0 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.8 A | 10.6A | Shielded | 9.23mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-2R2N-DFIXED IND 2.2UH 5A 12.61MOHM SMD |
0 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5 A | 7.5A | Shielded | 12.61mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
