Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1010V4-R330-RFIXED INDUCTOR |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UP2.8B-151-RFIXED IND 150UH 620MA 971MOHM SM |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 620 mA | 740mA | Unshielded | 971mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|

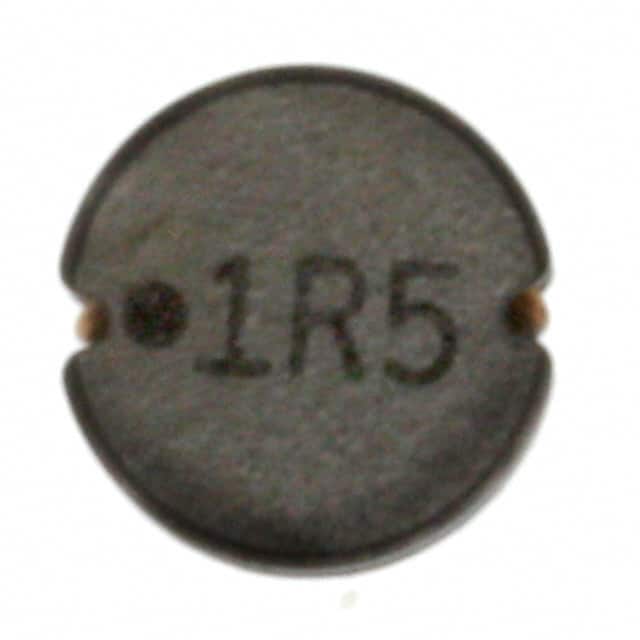

744775015AFIXED IND 1.5UH 6A 20 MOHM SMD |
0 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
|

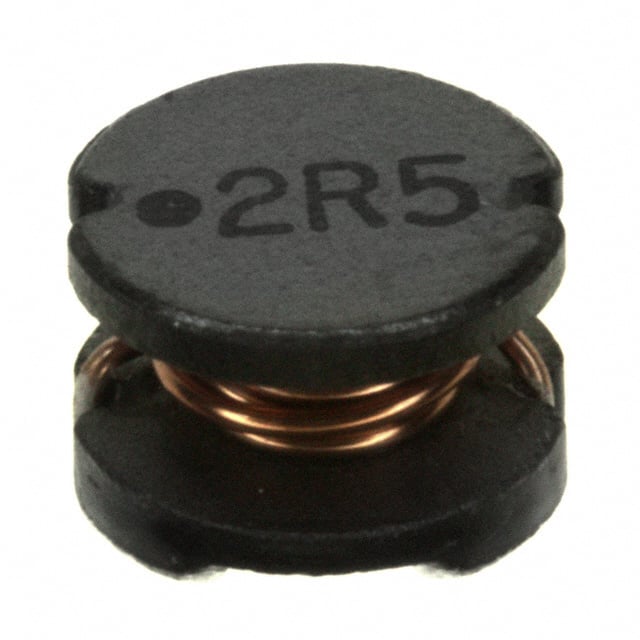

744775025AFIXED IND 2.5UH 5A 20 MOHM SMD |
0 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 5 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
|

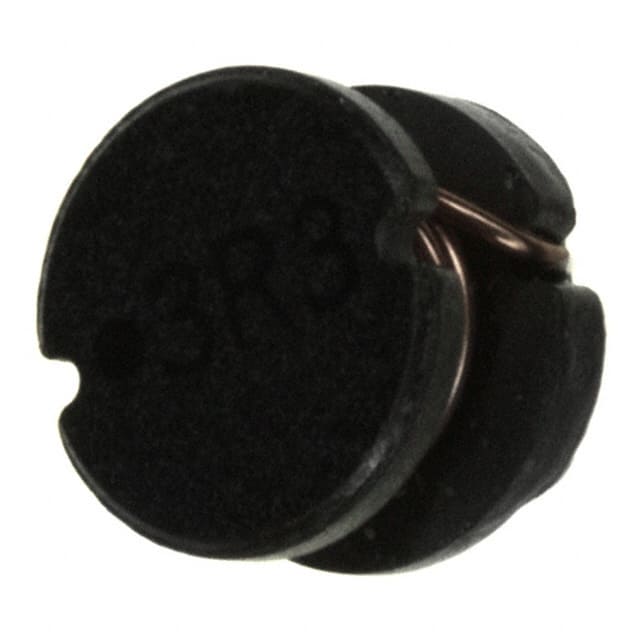

744775033AFIXED IND 3.3UH 4.6A 20 MOHM SMD |
0 |
|
Datasheet |
WE-PD2 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.6 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" Dia (7.50mm) | 0.209" (5.30mm) |
|

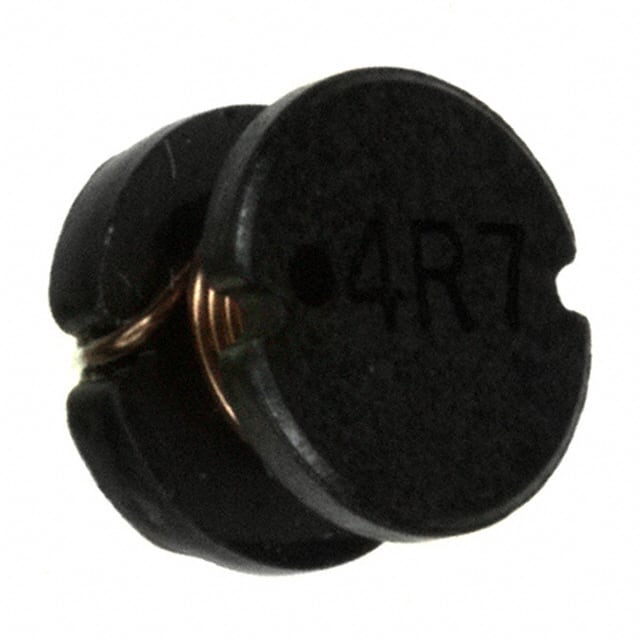

744775047AFIXED IND 4.7UH 3.7A 30 MOHM SMD |
0 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.7 A | - | Unshielded | 30mOhm Max | 31 @ 7.96MHz | 38MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
|
IMS05SH102KFIXED IND 1MH 70MA 17.5 OHM TH |
0 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 1 mH | ±10% | 70 mA | 40mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05SH471KFIXED IND 470UH 92MA 9.5 OHM TH |
0 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 470 µH | ±10% | 92 mA | 58mA | Shielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
CDRH125NP-2R1NCFIXED IND 2.1UH 7A 14 MOHM SMD |
15 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.1 µH | -20%, +30% | 7 A | - | Shielded | 14mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH5D28RHPNP-8R2NCFIXED IND 8.2UH 1.9A 88.4MOHM SM |
0 |
|
Datasheet |
CDRH5D28R/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±25% | 1.9 A | 2.7A | Shielded | 88.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
CDRH103RNP-151NC-BFIXED IND 150UH 510MA 871MOHM SM |
0 |
|
Datasheet |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±30% | 510 mA | 840mA | Shielded | 871mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|
|
CDRH103RNP-1R5NC-BFIXED IND 1.5UH 5.8A 11 MOHM SMD |
0 |
|
Datasheet |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 5.8 A | 8A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|
|
CDRH103RNP-330NC-BFIXED IND 33UH 1.35A 202MOHM SMD |
0 |
|
Datasheet |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.35 A | 1.74A | Shielded | 202mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|
|
CDRH103RNP-560NC-BFIXED IND 56UH 1.15A 325MOHM SMD |
0 |
|
Datasheet |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±30% | 1.15 A | 1.36A | Shielded | 325mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|
|
1537-30JFIXED IND 5.6UH 565MA 320MOHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 µH | ±5% | 565 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-32JFIXED IND 6.8UH 450MA 500MOHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 µH | ±5% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-34JFIXED IND 8.2UH 410MA 600MOHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 8.2 µH | ±5% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-36JFIXED IND 10UH 335MA 900 MOHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 µH | ±5% | 335 mA | - | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-38JFIXED IND 12UH 305MA 1.1 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 12 µH | ±5% | 305 mA | - | Unshielded | 1.1Ohm Max | 65 @ 2.5MHz | 42MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-40JFIXED IND 15UH 271MA 1.4 OHM TH |
0 |
|
Datasheet |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 15 µH | ±5% | 271 mA | - | Unshielded | 1.4Ohm Max | 65 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
