Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDEP15D90T150NP-150MC-100FIXED IND 15UH 8A 13.4 MOHM SMD |
0 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 8 A | 13.4A | Shielded | 13.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-3R3MC-125FIXED IND 3.3UH 18.5A 2.9MOHM SM |
0 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 18.5 A | 25A | Shielded | 2.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-120MC-125FIXED IND 12.5UH 12.2A 8.9 MOHM |
0 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12.5 µH | ±20% | 12.2 A | 12.8A | Shielded | 8.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-4R7MC-100FIXED IND 4.7UH 14.8A 4.9MOHM SM |
0 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 14.8 A | 24A | Shielded | 4.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-6R2MC-125FIXED IND 6.2UH 14.8A 4.9MOHM SM |
0 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.2 µH | ±20% | 14.8 A | 18.5A | Shielded | 4.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-0R5MC-125FIXED IND 500NH 33.5A 1.2MOHM SM |
0 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | ±20% | 33.5 A | 63A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
CDEP15D90T150NP-4R7MC-125FIXED IND 4.7UH 16.5A 3.5MOHM SM |
0 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 16.5 A | 21.3A | Shielded | 3.5mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|

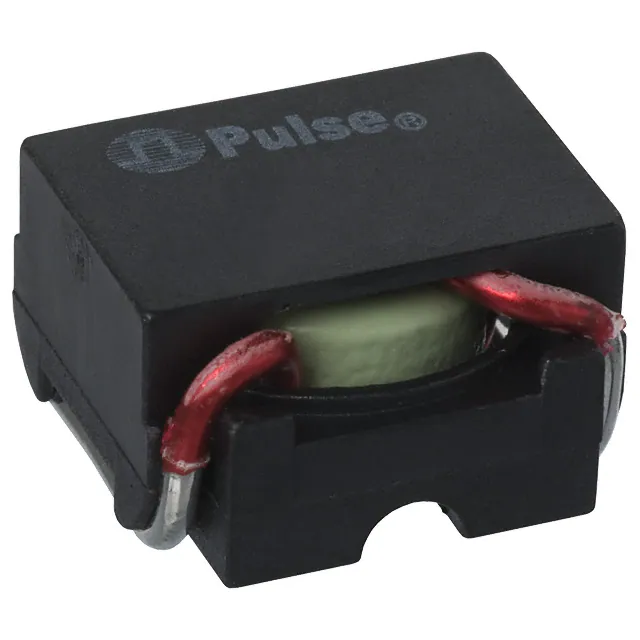

PE-53690NLFIXED IND 810NH 14.3A 2.5MOHM SM |
0 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 810 nH | - | 14.3 A | - | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.605" W (15.75mm x 15.37mm) | 0.370" (9.40mm) |
|
1025-10KFIXED IND 390NH 710MA 300MOHM TH |
0 |
|
Datasheet |
1025 | Axial | Bulk | Active | Molded | Phenolic | 390 nH | ±10% | 710 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-46KFIXED IND 12UH 160MA 2.7 OHM TH |
0 |
|
Datasheet |
1025 | Axial | Bulk | Active | Molded | Iron | 12 µH | ±10% | 160 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
TP3-100-RFIXED IND 10UH 1.3A 255 MOHM SMD |
0 |
|
Datasheet |
THIN-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 10 µH | ±20% | 1.3 A | 1.1A | Unshielded | 255mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.535" L x 0.425" W (13.59mm x 10.80mm) | 0.087" (2.20mm) |
|
|
TP3-4R7-RFIXED IND 4.7UH 1.5A 180.6 MOHM |
0 |
|
Datasheet |
THIN-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 4.7 µH | ±20% | 1.5 A | 1.6A | Unshielded | 180.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.535" L x 0.425" W (13.59mm x 10.80mm) | 0.087" (2.20mm) |
|
|
MLRF0805-039JMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 39 nH | ±5% | 625 mA | - | Unshielded | 290mOhm Max | 60 @ 500MHz | 2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-018JMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 18 nH | ±5% | 750 mA | - | Unshielded | 200mOhm Max | 50 @ 500MHz | 2.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-820JMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 820 nH | ±5% | 210 mA | - | Unshielded | 2.5Ohm Max | 15 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
FP1008R7-R180-RFIXED IND 180NH 72A 0.12MOHM SMD |
0 |
|
Datasheet |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±10% | 72 A | 46A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
DRAP124-2R2-RFIXED IND 2.2UH 7.64A 9 MOHM SMD |
0 |
|
Datasheet |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 7.64 A | 14A | Shielded | 9mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
|
DRAP124-1R5-RFIXED IND 1.5UH 9.36A 5.8MOHM SM |
0 |
|
Datasheet |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±20% | 9.36 A | 17.1A | Shielded | 5.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
|
DRAP124-150-RFIXED IND 15UH 3.1A 53 MOHM SMD |
0 |
|
Datasheet |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 3.1 A | 5.31A | Shielded | 53mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
|
DRAP124-820-RFIXED IND 82UH 1.29A 309MOHM SMD |
0 |
|
Datasheet |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±20% | 1.29 A | 2.23A | Shielded | 309mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
