Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447785127FIXED IND 27UH 900MA 360MOHM SMD |
0 |
|
- |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±25% | 900 mA | 1A | Shielded | 360mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.130" (3.30mm) |
|
BPSF001313753R9T00INDUCTOR POWER |
0 |
|
Datasheet |
BPSF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±30% | 6.7 A | 9A | Shielded | 10.4mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
HBLE042A-R68MSIND SMD 0.68UH MOLDING CHOKE |
0 |
|
Datasheet |
HBLE042A | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 680 nH | ±20% | 9.5 A | 7.1A | Unshielded | 10.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
HBLE042A-R24MSIND SMD 0.24UH MOLDING CHOKE |
0 |
|
Datasheet |
HBLE042A | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 240 nH | ±20% | 13.5 A | 12A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
FP0708R1-R09-RFIXED IND 90NH 44A 0.35 MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 90 nH | ±10% | 44 A | 75A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
|
FP0708R1-R10-RFIXED IND 105NH 44A 0.35MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 105 nH | ±10% | 44 A | 68A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
|
FP0708R1-R12-RFIXED IND 120NH 44A 0.35MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 44 A | 59A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
|
|
FP0708R1-R15-RFIXED IND 150NH 44A 0.35MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 44 A | 47A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
|

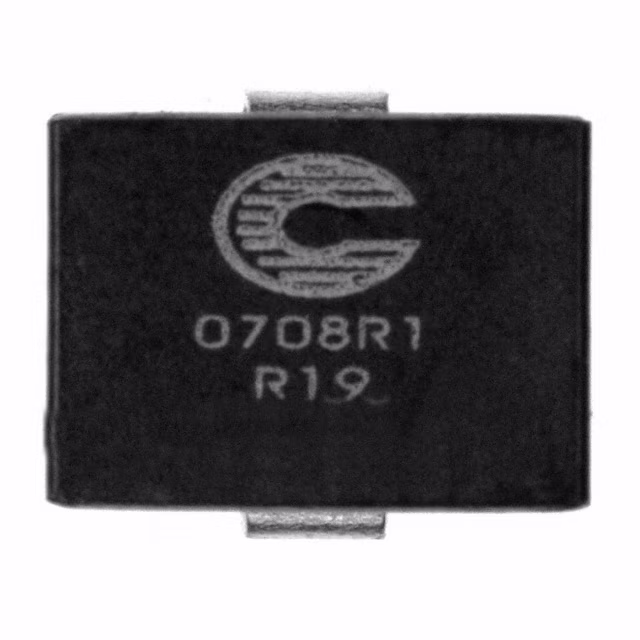

FP0708R1-R19-RFIXED IND 190NH 44A 0.35MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 190 nH | ±10% | 44 A | 37A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
|
IHLP2525EZERR22M01FIXED IND 220NH SMD |
0 |
|
Datasheet |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
|
IHLP2525EZERR33M01FIXED IND 330NH SMD |
0 |
|
Datasheet |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
|
IHLP2525EZERR68M01FIXED IND 680NH 18A 4.5 MOHM SMD |
0 |
|
Datasheet |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 18 A | 11.5A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
|
IHLP2525EZERR82M01FIXED IND 820NH 16.5A 4.9MOHM SM |
0 |
|
Datasheet |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 16.5 A | 13A | Shielded | 4.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
SNT-S10TFCMC 1.5UH 3A 2LN TH |
0 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Tape & Box (TB) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 1.5 µH | - | 3 A | - | Unshielded | 25mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
|
|
SNT-S10TCMC 1.5UH 3A 2LN TH |
0 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 1.5 µH | - | 3 A | - | Unshielded | 25mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
|
IMC1812BN102JFIXED IND 1MH 30MA 40 OHM SMD |
0 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812BN391JFIXED IND 390UH 80MA 16 OHM SMD |
0 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 80 mA | - | Unshielded | 16Ohm Max | 40 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812BN471JFIXED IND 470UH 62MA 26 OHM SMD |
0 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812BN561JFIXED IND 560UH 50MA 30 OHM SMD |
0 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812BN681JFIXED IND 680UH 50MA 30 OHM SMD |
0 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
