Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC5022FH-R82FIXED IND 820NH 17A 2.6 MOHM SMD |
0 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±30% | 17 A | 30A | Unshielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|

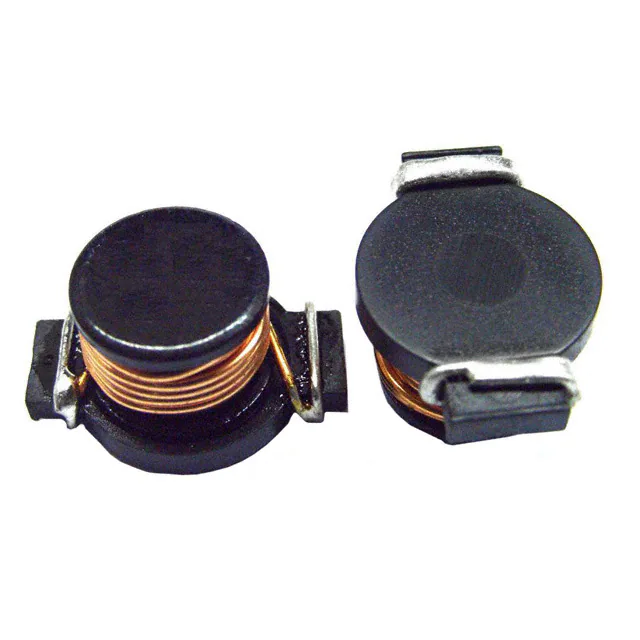

SC5040FH-120FIXED IND 12UH 8.5A 15.5MOHM SMD |
0 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±30% | 8.5 A | 15.9A | Unshielded | 15.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-2R8FIXED IND 2.8UH 16A 5.2 MOHM SMD |
0 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±30% | 16 A | 33.4A | Unshielded | 5.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-330FIXED IND 33UH 4.4A 37 MOHM SMD |
0 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±30% | 4.4 A | 9.6A | Unshielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-3R9FIXED IND 3.9UH 14A 6 MOHM SMD |
0 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±30% | 14 A | 26.8A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-680FIXED IND 68UH 3.4A 67 MOHM SMD |
0 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±30% | 3.4 A | 6.7A | Unshielded | 67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-6R8FIXED IND 6.8UH 11.5A 9 MOHM SMD |
0 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 11.5 A | 21.5A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
APCI00121280151M80INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.42 A | 2A | Shielded | 280mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280151KY0INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.42 A | 1.42A | Shielded | 280mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280150MY0INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.5 A | 4.5A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280150T80INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 4.5 A | 6.5A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280150TY0INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 4.5 A | 4.5A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280180M80INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.9 A | 6A | Shielded | 39.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280100M80INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.4 A | 7.8A | Shielded | 21.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280151MY0INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.42 A | 1.42A | Shielded | 280mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280180MY0INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.9 A | 3.9A | Shielded | 39.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280152KY0INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 450 mA | 450mA | Shielded | 2.48Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280152M80INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 550 mA | 700mA | Shielded | 2.2Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280151T80INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 1.42 A | 2A | Shielded | 280mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
APCI00121280181KY0INDUCTOR POWER |
0 |
|
Datasheet |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 1.3 A | 1.3A | Shielded | 350mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
Fixed Inductors Electronic Components
Explore Fixed Inductors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
