Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDA1055-H-1R2M=P3FIXED IND |
0 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDA1055-H-R56M=P3FIXED IND |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PA5001.721NLTFIXED IND 720NH 10.5A 11.6 MOHM |
0 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 720 nH | ±20% | 10.5 A | 12A | Shielded | 11.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PA5001.601NLTIND MOLDED POWDER 4.3X4.3X2.1 SM |
0 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 600 nH | ±20% | 11.7 A | 12.3A | Shielded | 9.52mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PA5001.471NLTIND MOLDED POWDER 4.3X4.3X2.1 SM |
0 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 12.5 A | 13A | Shielded | 8.58mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
ATCA-01-300M-VFIXED IND 30UH 2A 35 MOHM TH |
0 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 30 µH | ±20% | 2 A | - | Unshielded | 35mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.709" L x 0.453" W (18.00mm x 11.50mm) | - |
|
|
70F102AIFIXED IND 10MH 38MA 101 OHM TH |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 10 mH | ±5% | 38 mA | - | Unshielded | 101Ohm Max | 41 @ 250kHz | 520kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - |
|
|
70F222AIFIXED IND 22MH 41MA 144 OHM TH |
0 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 22 mH | ±5% | 41 mA | - | Unshielded | 144Ohm Max | 50 @ 79kHz | 270kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.330" Dia x 0.500" L (8.38mm x 12.70mm) | - |
|

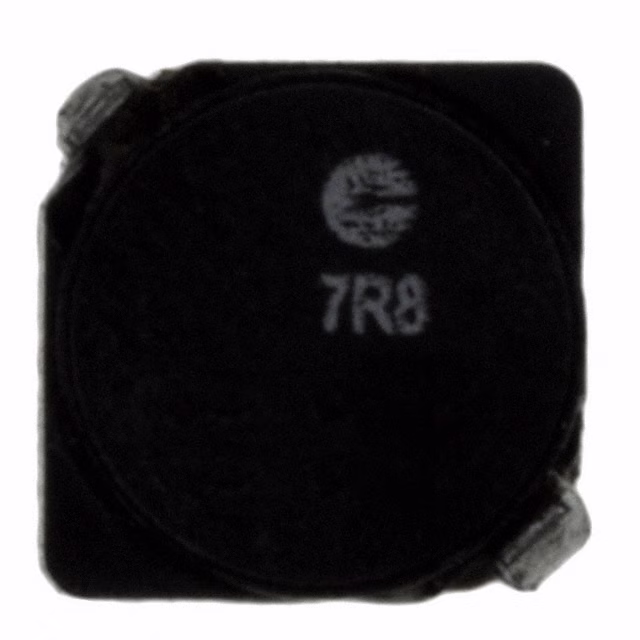

SD6030-7R8-RFIXED IND 7.8UH 2.38A 53MOHM SMD |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±30% | 2.38 A | 1.6A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

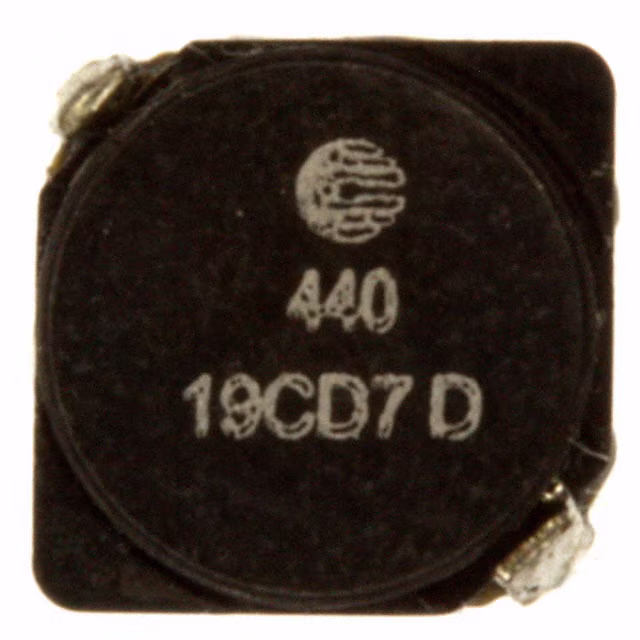

SD6030-440-RFIXED IND 44UH 1.1A 250 MOHM SMD |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 44 µH | ±30% | 1.1 A | 620mA | Shielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-121-RFIXED IND 110.1UH 700MA 620 MOHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 110.1 µH | ±30% | 700 mA | 400mA | Shielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-150-RFIXED IND 14.1UH 1.71A 103 MOHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 14.1 µH | ±30% | 1.71 A | 1.1A | Shielded | 103mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-151-RFIXED IND 144.5UH 640MA 730 MOHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 144.5 µH | ±30% | 640 mA | 350mA | Shielded | 730mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-180-RFIXED IND 17.1UH 1.65A 110 MOHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 17.1 µH | ±30% | 1.65 A | 1A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-181-RFIXED IND 175.1UH 550MA 980 MOHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 175.1 µH | ±30% | 550 mA | 320mA | Shielded | 980mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-271-RFIXED IND 264.2UH 440MA 1.56 OHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 264.2 µH | ±30% | 440 mA | 270mA | Shielded | 1.56Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-330-RFIXED IND 32.4UH 1.26A 189 MOHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 32.4 µH | ±30% | 1.26 A | 750mA | Shielded | 189mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-331-RFIXED IND 313.5UH 380MA 2.08 OHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 313.5 µH | ±30% | 380 mA | 250mA | Shielded | 2.08Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-360-RFIXED IND 34.4UH 1.19A 212 MOHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 34.4 µH | ±30% | 1.19 A | 700mA | Shielded | 212mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-391-RFIXED IND 373.7UH 350MA 2.5 OHM |
0 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 373.7 µH | ±30% | 350 mA | 220mA | Shielded | 2.5Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
