Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH31HNR75J03LFIXED IND 750NH 190MA 1.027 OHM |
0 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 750 nH | ±5% | 190 mA | - | Unshielded | 1.027Ohm Max | 60 @ 100MHz | 220MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
NS10145T1R5NNAFIXED IND 1.5UH 7.99A 7.2OHM SMD |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 7.99 A | 10.34A | Shielded | 7.2Ohm | - | 72.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T5R6NNAFIXED IND 5.6UH 4.45A 21MOHM SMD |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 4.45 A | 5.85A | Shielded | 21mOhm Max | - | 26.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
ELL-SFG331MAFIXED IND 330UH 128MA 8.9OHM SMD |
0 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±20% | 128 mA | 130mA | Shielded | 8.9Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG560MAFIXED IND 56UH 330MA 1.3 OHM SMD |
0 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±20% | 330 mA | 290mA | Shielded | 1.3Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
0624CDMCCDS-3R3MCFIXED IND 3.3UH 5.5A 48MOHM SMD |
0 |
|
Datasheet |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 5.5 A | 10.6A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
0518CDMCCDS-R56MCFIXED IND 560NH 10A 10 MOHM SMD |
0 |
|
Datasheet |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 10 A | 14.7A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
0518CDMCCDS-1R5MCFIXED IND 1.5UH 6.6A 26MOHM SMD |
0 |
|
Datasheet |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 6.6 A | 10.6A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
1231AS-H-1R5N=P3FIXED IND 1.5UH 2.7A 42 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.7 A | 2.1A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.071" (1.80mm) |
|
LMLP1011MR36DTASFIXED IND 360NH 34A 1.2MOHM SMD |
0 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 360 nH | ±20% | 34 A | 40A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
LMLP1011M6R8DTASFIXED IND 6.8UH 6.5A 25MOHM SMD |
0 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 6.5 A | 9A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
LMLP1011M8R2DTASFIXED IND 8.2UH 7A 29 MOHM SMD |
0 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 7 A | 9A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
LMLP1011MR22DTASFIXED IND 220NH 30A 1 MOHM SMD |
0 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 30 A | 50A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
HCM1A0805V2-330-RIND MP 33UH 4A 2 PADS SMT |
0 |
|
- |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 33 µH | ±20% | 2.7 A | 4A | Shielded | 125mOhm Max | - | 5.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
|

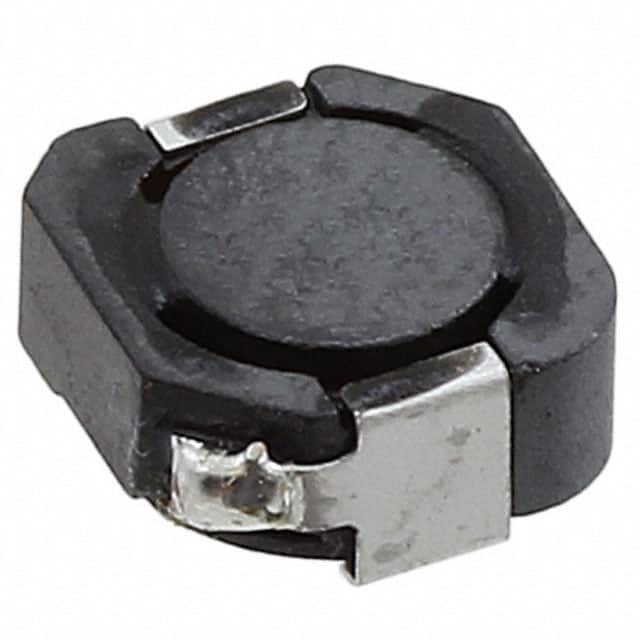

CDRH8D43RT125NP-220MCFIXED IND 22UH 2.05A 77.6MOHM SM |
0 |
|
Datasheet |
CDRH8D43R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.05 A | 2.35A | Shielded | 77.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
CDRH8D43RT125NP-470MCFIXED IND 47UH 1.3A 186 MOHM SMD |
0 |
|
Datasheet |
CDRH8D43R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.3 A | 1.6A | Shielded | 186mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
CDRH8D43RT125NP-680MCFIXED IND 68UH 1.03A 288MOHM SMD |
0 |
|
Datasheet |
CDRH8D43R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.03 A | 1.3A | Shielded | 288mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.177" (4.50mm) |
|
|
CDRH8D43RT125NP-331MCFIXED IND 330UH 480MA 1.33OHM SM |
0 |
|
Datasheet |
CDRH8D43R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 480 mA | 620mA | Shielded | 1.33Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.177" (4.50mm) |
|
|
CDRH8D43RT125NP-8R2NCFIXED IND 8.2UH 2.85A 40.8 MOHM |
0 |
|
Datasheet |
CDRH8D43R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±30% | 2.85 A | 4A | Shielded | 40.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.177" (4.50mm) |
|
|
CDRH8D43RT125NP-1R8NCFIXED IND 1.8UH 6.4A 12.1MOHM SM |
0 |
|
Datasheet |
CDRH8D43R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±30% | 6.4 A | 7.3A | Shielded | 12.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.177" (4.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
