Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1166.123NLTFIXED IND 12UH 1.5A 78 MOHM SMD |
0 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 1.5 A | 1.7A | Shielded | 78mOhm Max | - | 25MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.824NLTFIXED IND 820UH 170MA 6.2OHM SMD |
0 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±20% | 170 mA | 200mA | Shielded | 6.2Ohm Max | - | 2.5MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.224NLTFIXED IND 220UH 350MA 1.48OHM SM |
0 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 350 mA | 370mA | Shielded | 1.48Ohm Max | - | 5.1MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.683NLTFIXED IND 68UH 670MA 370MOHM SMD |
0 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 670 mA | 670mA | Shielded | 370mOhm Max | - | 9.5MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.482NLTFIXED IND 4.8UH 2.4A 31 MOHM SMD |
0 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.8 µH | ±30% | 2.4 A | 2.4A | Shielded | 31mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.105NLTFIXED IND 1MH 150MA 8 OHM SMD |
0 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 150 mA | 160mA | Shielded | 8Ohm Max | - | 1.3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.563NLTFIXED IND 56UH 730MA 340MOHM SMD |
0 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 730 mA | 730mA | Shielded | 340mOhm Max | - | 11MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.273NLTFIXED IND 27UH 1A 180 MOHM SMD |
0 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 1 A | 1.1A | Shielded | 180mOhm Max | - | 17MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
PG0015.154NLTFIXED IND 150UH 780MA 470MOHM SM |
0 |
|
Datasheet |
PG0015NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 780 mA | 780mA | Unshielded | 470mOhm Max | - | 4.5MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.400" L x 0.360" W (10.15mm x 9.15mm) | 0.219" (5.55mm) |
|
PA2202.181NLTFIXED IND 180NH 36A 0.48MOHM SMD |
0 |
|
Datasheet |
PA2202.XXXNL | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 nH | ±15% | 36 A | 64A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.476" L x 0.394" W (12.10mm x 10.00mm) | 0.236" (6.00mm) |
|
|
PA2202.211NLTFIXED IND 215NH 36A 0.48MOHM SMD |
0 |
|
Datasheet |
PA2202.XXXNL | Nonstandard | Tape & Reel (TR) | Active | - | - | 215 nH | ±15% | 36 A | 53A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.476" L x 0.394" W (12.10mm x 10.00mm) | 0.236" (6.00mm) |
|
|
PA2202.321NLTFIXED IND 325NH 31A 0.48MOHM SMD |
0 |
|
Datasheet |
PA2202.XXXNL | Nonstandard | Tape & Reel (TR) | Active | - | - | 325 nH | ±15% | 31 A | 34A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.476" L x 0.394" W (12.10mm x 10.00mm) | 0.236" (6.00mm) |
|
|
SEPI100710LN-R22M-R1705IND 0.22UH 0.17MOHM 70A |
0 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SEPI100710LN-R20M-R1705IND 0.2UH 0.17MOHM 70A |
0 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SEPI100710LN-R15M-R1705IND 0.15UH 0.17MOHM 70A |
0 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SEPI100710LN-R12M-R1705IND 0.12UH 0.17MOHM 70A |
0 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SEPI100710LN-R07M-R1705IND 0.07UH 0.17MOHM 70A |
0 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SEPI100710LN-R33M-R1705IND 0.33UH 0.17MOHM 70A |
0 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
CTLVC8040F-220M22UH SMD POWER INDUCTOR |
12 |
|
Datasheet |
CTLVC8040F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.34 A | 2.52A | Shielded | 80mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

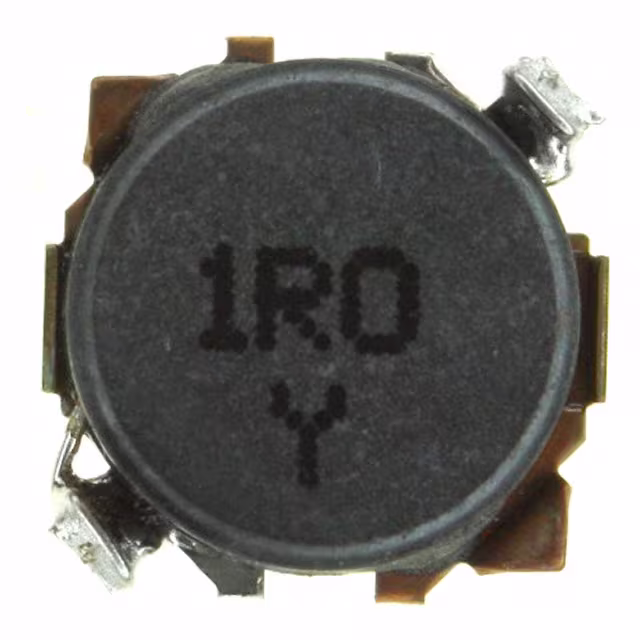

ELL-6GG1R0NFIXED IND 1UH 2.5A 27 MOHM SMD |
0 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 2.5 A | 2.5A | Shielded | 27mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
