Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLCV25T-4R7M-EFRDFIXED IND 4.7UH 500MA 684MOHM SM |
2,405 |
|
Datasheet |
NLCV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 500 mA | - | Unshielded | 684mOhm Max | 10 @ 7.96MHz | 46MHz | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
-BR-Series.jpg)
|
BRC2518T4R7MFIXED IND 4.7UH 750MA 230MOHM SM |
2,402 |
|
Datasheet |
BR, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | 1.25A | Unshielded | 230mOhm | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
AISC-0805-1R0G-TFIXED IND 1UH 150MA 2.5 OHM SMD |
2,356 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±2% | 150 mA | - | Unshielded | 2.5Ohm Max | 20 @ 50MHz | 200MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
LSXND3030QKT1R0NNGFIXED IND 1UH 2.1A 36 MOHM SMD |
2,271 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 2.1 A | 2.1A | Shielded | 36mOhm Max | - | 100MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
-2,70mm.jpg)
|
CBC3225T150KRVFIXED IND 15UH 590MA 253.5 MOHM |
2,242 |
|
- |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 590 mA | 730mA | Unshielded | 253.5mOhm Max | - | 20MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
-1,0.jpg)
|

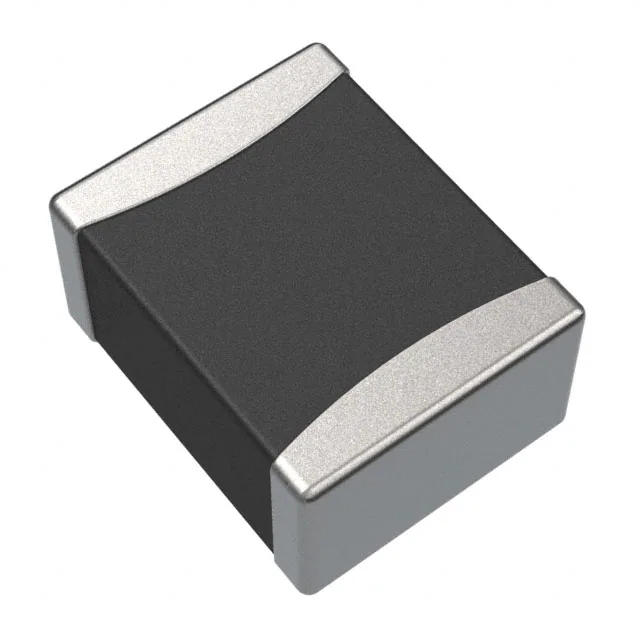

CVH201610A-2R2MFIXED IND 2.2UH 1.2A 137.5 MOHM |
2,097 |
|
Datasheet |
CVH201610A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 137.5mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
AISC-1008-R15J-TFIXED IND 150NH 580MA 620MOHM SM |
2,091 |
|
Datasheet |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 580 mA | - | Unshielded | 620mOhm Max | 50 @ 100MHz | 800MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-0805-R15G-TFIXED IND 150NH 400MA 560MOHM SM |
2,068 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±2% | 400 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 920MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
CBC3225T100MRVFIXED IND 10UH 720MA 172.9 MOHM |
2,063 |
|
- |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 720 mA | 900mA | Unshielded | 172.9mOhm Max | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
AISC-0603HP-15NJ-TFIXED IND 15NH 1.1A 85 MOHM SMD |
2,004 |
|
Datasheet |
AISC-0603HP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1.1 A | - | Unshielded | 85mOhm Max | 38 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
VLS201612ET-2R2MFIXED IND 2.2UH 1.05A 195MOHM SM |
2,000 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.05 A | 1.05A | Shielded | 195mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
-Unshielded-Inductor.jpg)
|
IMC0805ERR12J01FIXED IND 120NH 500MA 480MOHM SM |
1,995 |
|
Datasheet |
IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 500 mA | - | Unshielded | 480mOhm Max | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 105°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LSXNE3030MKT330MNINDUCTOR POWER 33UH SMD |
1,936 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 450 mA | 360mA | Shielded | 1.152Ohm Max | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AISC-0805-R47G-TFIXED IND 470NH 250MA 1.72OHM SM |
1,905 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 250 mA | - | Unshielded | 1.72Ohm Max | 33 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
IMC0805ER6N8J01FIXED IND 6.8NH 600MA 60MOHM SMD |
1,890 |
|
Datasheet |
IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 600 mA | - | Unshielded | 60mOhm Max | 60 @ 1GHz | 5.5GHz | - | -40°C ~ 105°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
744760082AFIXED IND 8.2NH 600MA 60MOHM SMD |
1,868 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 600 mA | - | Unshielded | 60mOhm Max | 60 @ 1GHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LQW2UASR47G00LFIXED IND 470NH 470MA 1.19OHM SM |
1,840 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±2% | 470 mA | - | Unshielded | 1.19Ohm Max | 45 @ 100MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
IMC1008ER15NJFIXED IND 15NH 1A 80 MOHM SMD |
1,819 |
|
Datasheet |
IMC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 2.7GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
WPN252010U1R0MTFIXED IND 1UH 3.1A 50 MOHM SMD |
1,734 |
|
Datasheet |
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.1 A | 4.6A | Shielded | 50mOhm Max | - | 54MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQW2UASR39G00LFIXED IND 390NH 470MA 1.12OHM SM |
1,720 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 390 nH | ±2% | 470 mA | - | Unshielded | 1.12Ohm Max | 45 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
Fixed Inductors Electronic Components
Explore Fixed Inductors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
