Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

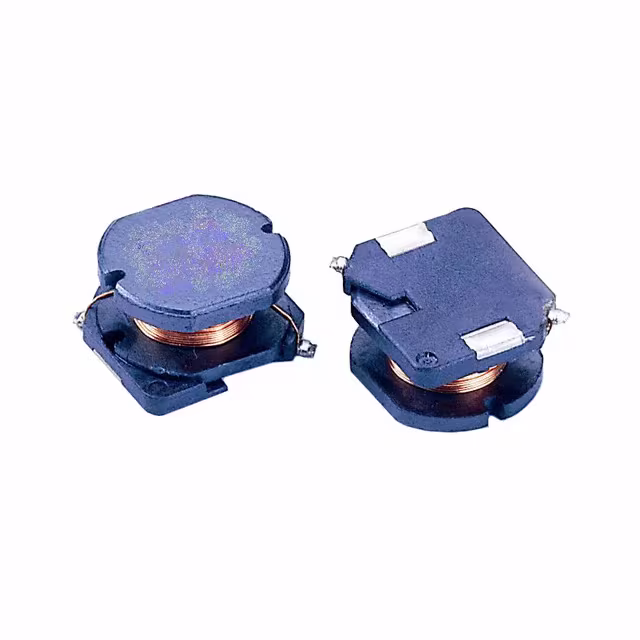

SC105B-271FIXED IND 270UH 720MA 970MOHM SM |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 µH | ±20% | 720 mA | 570mA | Unshielded | 970mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-330FIXED IND 33UH 1.9A 160 MOHM SMD |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.9 A | 1.5A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-331FIXED IND 330UH 660MA 1.26OHM SM |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±20% | 660 mA | 520mA | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-390FIXED IND 39UH 1.8A 175 MOHM SMD |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±20% | 1.8 A | 1.37A | Unshielded | 175mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-470FIXED IND 47UH 1.6A 210 MOHM SMD |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.6 A | 1.28A | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-560FIXED IND 56UH 1.45A 250MOHM SMD |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±20% | 1.45 A | 1.17A | Unshielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-561FIXED IND 560UH 470MA 1.9OHM SMD |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 µH | ±20% | 470 mA | 330mA | Unshielded | 1.9Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-680FIXED IND 68UH 1.35A 285MOHM SMD |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1.35 A | 1.11A | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-681FIXED IND 680UH 430MA 2.6OHM SMD |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 µH | ±20% | 430 mA | 280mA | Unshielded | 2.6Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-820FIXED IND 82UH 1.3A 333 MOHM SMD |
0 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 1.3 A | 1A | Unshielded | 333mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
SCRH104-150FIXED IND 15UH 2.7A 69 MOHM SMD |
0 |
|
Datasheet |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 2.7 A | 2A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | 0.197" (5.00mm) |
|
|
SCRH104-270FIXED IND 27UH 1.95A 110MOHM SMD |
0 |
|
Datasheet |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 27 µH | ±20% | 1.95 A | 1.45A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | 0.197" (5.00mm) |
|
APSC000505206R8TS0INDUCTOR POWER |
0 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | - | 760mA | Shielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
APSC000505206R3TS0INDUCTOR POWER |
0 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.3 µH | ±30% | - | 780mA | Shielded | 180mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
APSC000505208R2TS0INDUCTOR POWER |
0 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | - | 680mA | Shielded | 245mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
APSC000505201R5TS0INDUCTOR POWER |
0 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | - | 1.5A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
APSC000505201R8TS0INDUCTOR POWER |
0 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | - | 1.35A | Shielded | 70mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
APSC000505202R2TS0INDUCTOR POWER |
0 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | - | 1.3A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
APSC00050520150TS0INDUCTOR POWER |
0 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | - | 500mA | Shielded | 360mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
APSC00050520220MS0INDUCTOR POWER |
0 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | - | 410mA | Shielded | 480mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
