Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0320S-150M-T3FIXED IND 15UH 660MA 344MOHM SMD |
0 |
|
Datasheet |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 660 mA | 560mA | Shielded | 344mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ASPI-0320S-220M-T3FIXED IND 22UH 570MA 495MOHM SMD |
0 |
|
Datasheet |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 570 mA | 480mA | Shielded | 495mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ASPI-0320S-330M-T3FIXED IND 33UH 450MA 740MOHM SMD |
0 |
|
Datasheet |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 450 mA | 380mA | Shielded | 740mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|

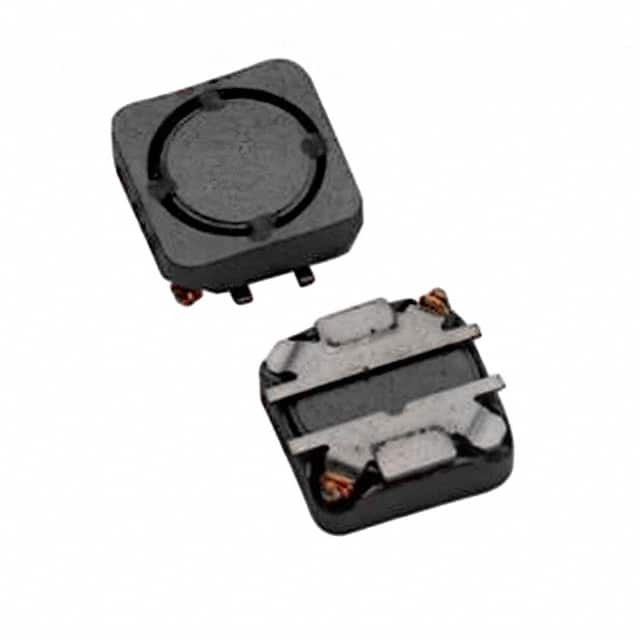

ASPI-0412S-2R2N-T3FIXED IND 2.2UH 1.43A 105MOHM SM |
0 |
|
Datasheet |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.43 A | 1.6A | Shielded | 105mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-3R3N-T3FIXED IND 3.3UH 1.15A 147MOHM SM |
0 |
|
Datasheet |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.15 A | 1.2A | Shielded | 147mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-6R8N-T3FIXED IND 6.8UH 780MA 307MOHM SM |
0 |
|
Datasheet |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 780 mA | 980mA | Shielded | 307mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-8R2N-T3FIXED IND 8.2UH 740MA 340MOHM SM |
0 |
|
Datasheet |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 740 mA | 880mA | Shielded | 340mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-120M-T3FIXED IND 12UH 590MA 483MOHM SMD |
0 |
|
Datasheet |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 590 mA | 650mA | Shielded | 483mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-180M-T3FIXED IND 18UH 480MA 730MOHM SMD |
0 |
|
Datasheet |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 480 mA | 550mA | Shielded | 730mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0418S-1R2N-T3FIXED IND 1.2UH 1.9A 63 MOHM SMD |
0 |
|
Datasheet |
ASPI-0418S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 1.9 A | 2A | Shielded | 63mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
|
|
ASPI-0418S-8R2N-T3FIXED IND 8.2UH 1.1A 163MOHM SMD |
0 |
|
Datasheet |
ASPI-0418S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 1.1 A | 900mA | Shielded | 163mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
|
|
ASPI-0418S-100M-T3FIXED IND 10UH 1A 176 MOHM SMD |
0 |
|
Datasheet |
ASPI-0418S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 850mA | Shielded | 176mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
|
|
ASPI-0418S-150M-T3FIXED IND 15UH 850MA 276MOHM SMD |
0 |
|
Datasheet |
ASPI-0418S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 700mA | Shielded | 276mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
|
|
ASPI-0418S-220M-T3FIXED IND 22UH 720MA 433MOHM SMD |
0 |
|
Datasheet |
ASPI-0418S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 720 mA | 550mA | Shielded | 433mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
|
|
ASPI-0418S-330M-T3FIXED IND 33UH 610MA 524MOHM SMD |
0 |
|
Datasheet |
ASPI-0418S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 610 mA | 450mA | Shielded | 524mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
|
|
ASPI-0412S-270M-T3FIXED IND 27UH 390MA 989MOHM SMD |
0 |
|
Datasheet |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 390 mA | 450mA | Shielded | 989mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
NRH2410T1R0NN4VFIXED IND 1UH 1.41A 84 MOHM SMD |
0 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.41 A | 1.8A | Shielded | 84mOhm Max | - | 106MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
|
NRH2412T1R0NNGHVFIXED IND 1UH 1.3A 92.4 MOHM SMD |
0 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.3 A | 2.35A | Shielded | 92.4mOhm Max | - | 101MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
|
NRH2412T4R7MNGHVFIXED IND 4.7UH 650MA 360MOHM SM |
0 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 650 mA | 1.15A | Shielded | 360mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
|
NRH2412TR47NNGJVFIXED IND 470NH 2.1A 60 MOHM SMD |
0 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 2.1 A | 2.9A | Shielded | 60mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
