Fixed Inductors

Photo Mfr. Part # Availability Quantity Datasheet Series Package/Case Packaging Product Status Type Material - Core Inductance Tolerance Current Rating (Amps) Current - Saturation (Isat) Shielding DC Resistance (DCR) Q @ Freq Frequency - Self Resonant Ratings Operating Temperature Inductance Frequency - Test Features Mounting Type Supplier Device Package Size / Dimension Height - Seated (Max)
IMC1812ESR56J Vishay Dale electronic component

IMC1812ESR56J

FIXED IND 560NH 285MA 1.2OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 560 nH ±5% 285 mA - Unshielded 1.2Ohm Max 30 @ 25.2MHz 170MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812ESR56K Vishay Dale electronic component

IMC1812ESR56K

FIXED IND 560NH 285MA 1.2OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 560 nH ±10% 285 mA - Unshielded 1.2Ohm Max 30 @ 25.2MHz 170MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812ESR68J Vishay Dale electronic component

IMC1812ESR68J

FIXED IND 680NH 270MA 1.4OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 680 nH ±5% 270 mA - Unshielded 1.4Ohm Max 30 @ 25.2MHz 150MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812ESR68K Vishay Dale electronic component

IMC1812ESR68K

FIXED IND 680NH 270MA 1.4OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 680 nH ±10% 270 mA - Unshielded 1.4Ohm Max 30 @ 25.2MHz 150MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812ESR82J Vishay Dale electronic component

IMC1812ESR82J

FIXED IND 820NH 250MA 1.6OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 820 nH ±5% 250 mA - Unshielded 1.6Ohm Max 30 @ 25.2MHz 140MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812ESR82K Vishay Dale electronic component

IMC1812ESR82K

FIXED IND 820NH 250MA 1.6OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 820 nH ±10% 250 mA - Unshielded 1.6Ohm Max 30 @ 25.2MHz 140MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812EUR82K Vishay Dale electronic component

IMC1812EUR82K

FIXED IND 820NH 250MA 1.6OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 820 nH ±10% 250 mA - Unshielded 1.6Ohm Max 30 @ 25.2MHz 140MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812RQR22J Vishay Dale electronic component

IMC1812RQR22J

FIXED IND 220NH 450MA 400MOHM SM

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 220 nH ±5% 450 mA - Unshielded 400mOhm Max 30 @ 25.2MHz 350MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812RQR33J Vishay Dale electronic component

IMC1812RQR33J

FIXED IND 330NH 430MA 550MOHM SM

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 330 nH ±5% 430 mA - Unshielded 550mOhm Max 30 @ 25.2MHz 250MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812RQR39J Vishay Dale electronic component

IMC1812RQR39J

FIXED IND 390NH 380MA 700MOHM SM

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 390 nH ±5% 380 mA - Unshielded 700mOhm Max 30 @ 25.2MHz 220MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812RQR47J Vishay Dale electronic component

IMC1812RQR47J

FIXED IND 470NH 355MA 800MOHM SM

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 470 nH ±5% 355 mA - Unshielded 800mOhm Max 30 @ 25.2MHz 190MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812RQR56J Vishay Dale electronic component

IMC1812RQR56J

FIXED IND 560NH 285MA 1.2OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 560 nH ±5% 285 mA - Unshielded 1.2Ohm Max 30 @ 25.2MHz 170MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812RQR68J Vishay Dale electronic component

IMC1812RQR68J

FIXED IND 680NH 270MA 1.4OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 680 nH ±5% 270 mA - Unshielded 1.4Ohm Max 30 @ 25.2MHz 150MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)
IMC1812RQR82J Vishay Dale electronic component

IMC1812RQR82J

FIXED IND 820NH 250MA 1.6OHM SMD

Vishay Dale

 0
RFQ

Datasheet

 		IMC-1812 1812 (4532 Metric) Tape & Reel (TR) Active Wirewound Non-Magnetic 820 nH ±5% 250 mA - Unshielded 1.6Ohm Max 30 @ 25.2MHz 140MHz - -55°C ~ 125°C 25.2 MHz - Surface Mount 1812 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.134" (3.40mm)

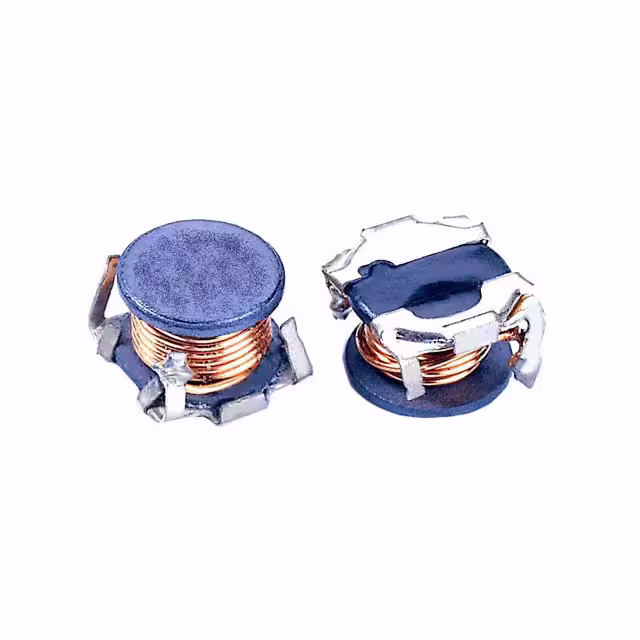

SCH74-100 Signal Transformer electronic component

SCH74-100

FIXED IND 10UH 3.2A 56 MOHM SMD

Signal Transformer

 0
RFQ

Datasheet

 		SCH74 Nonstandard Tape & Reel (TR) Obsolete Wirewound - 10 µH ±15% 3.2 A 2.75A Unshielded 56mOhm Max - - - -40°C ~ 125°C 1 kHz - Surface Mount - 0.315" L x 0.287" W (8.00mm x 7.30mm) 0.205" (5.20mm)
SCH74-101 Signal Transformer electronic component

SCH74-101

FIXED IND 100UH 1A 550 MOHM SMD

Signal Transformer

 0
RFQ

Datasheet

 		SCH74 Nonstandard Tape & Reel (TR) Obsolete Wirewound - 100 µH ±10% 1 A 810mA Unshielded 550mOhm Max - - - -40°C ~ 125°C 1 kHz - Surface Mount - 0.315" L x 0.287" W (8.00mm x 7.30mm) 0.205" (5.20mm)
SCH74-120 Signal Transformer electronic component

SCH74-120

FIXED IND 12UH 2.95A 65 MOHM SMD

Signal Transformer

 0
RFQ

Datasheet

 		SCH74 Nonstandard Tape & Reel (TR) Obsolete Wirewound - 12 µH ±15% 2.95 A 2.45A Unshielded 65mOhm Max - - - -40°C ~ 125°C 1 kHz - Surface Mount - 0.315" L x 0.287" W (8.00mm x 7.30mm) 0.205" (5.20mm)
SCH74-121 Signal Transformer electronic component

SCH74-121

FIXED IND 120UH 850MA 620MOHM SM

Signal Transformer

 0
RFQ

Datasheet

 		SCH74 Nonstandard Tape & Reel (TR) Obsolete Wirewound - 120 µH ±10% 850 mA 730mA Unshielded 620mOhm Max - - - -40°C ~ 125°C 1 kHz - Surface Mount - 0.315" L x 0.287" W (8.00mm x 7.30mm) 0.205" (5.20mm)
SCH74-150 Signal Transformer electronic component

SCH74-150

FIXED IND 15UH 2.66A 83 MOHM SMD

Signal Transformer

 0
RFQ

Datasheet

 		SCH74 Nonstandard Tape & Reel (TR) Obsolete Wirewound - 15 µH ±15% 2.66 A 2.1A Unshielded 83mOhm Max - - - -40°C ~ 125°C 1 kHz - Surface Mount - 0.315" L x 0.287" W (8.00mm x 7.30mm) 0.205" (5.20mm)
SCH74-151 Signal Transformer electronic component

SCH74-151

FIXED IND 150UH 760MA 720MOHM SM

Signal Transformer

 0
RFQ

Datasheet

 		SCH74 Nonstandard Tape & Reel (TR) Obsolete Wirewound - 150 µH ±10% 760 mA 710mA Unshielded 720mOhm Max - - - -40°C ~ 125°C 1 kHz - Surface Mount - 0.315" L x 0.287" W (8.00mm x 7.30mm) 0.205" (5.20mm)
Total 147749 Record«Prev1... 37663767376837693770377137723773...7388Next»

Fixed Inductors Electronic Components

Explore Fixed Inductors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.

Frequently Asked Questions

Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.

Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.

Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.

Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
