Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCDND2020MKT1R5MMFIXED IND 1.5UH 86 MOHM SMD |
0 |
|
- |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1.65 A | 2A | Unshielded | 86mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCDND2020MKTR68MMFIXED IND 680NH 58 MOHM SMD |
0 |
|
- |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 2 A | 3.5A | Unshielded | 58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCDND2020MKT3R3MMFIXED IND 3.3UH 178 MOHM SMD |
0 |
|
- |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.15 A | 1.35A | Unshielded | 178mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCDND2020KKT2R2MMFIXED IND 2.2UH 1.35A 165MOHM SM |
0 |
|
- |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.2 A | 1.65A | Unshielded | 165mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
IDCP1813ER100KFIXED IND 10UH 1.15A 182MOHM SMD |
0 |
|
Datasheet |
IDCP-1813 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.15 A | - | Unshielded | 182mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
IDCP1813ER270KFIXED IND 27UH 710MA 522MOHM SMD |
0 |
|
Datasheet |
IDCP-1813 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 710 mA | - | Unshielded | 522mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
IDCP1813ER470KFIXED IND 47UH 540MA 844MOHM SMD |
0 |
|
Datasheet |
IDCP-1813 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 540 mA | - | Unshielded | 844mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
IDCP1813ER680KFIXED IND 68UH 460MA 1.117OHM SM |
0 |
|
Datasheet |
IDCP-1813 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 460 mA | - | Unshielded | 1.117Ohm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
DRC-0406-1R2J-ULRADIAL INDUCTOR WITH LEADS, 1.2H |
0 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 1.95 A | - | Unshielded | 58mOhm Max | 100 @ 7.96MHz | 120MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.217" Dia (5.50mm) | 0.315" (8.00mm) |
|
|
LMCNF1608KKTR24MADFIXED INDUCTOR 0.24UH 0603 |
0 |
|
Datasheet |
MCOIL™, LMCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 3.8 A | 3.2A | Unshielded | 35mOhm Max | - | - | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LMCNF1608KKTR33MADFIXED INDUCTOR 0.33UH 0603 |
0 |
|
Datasheet |
MCOIL™, LMCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 330 nH | ±20% | 3.3 A | 2.8A | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

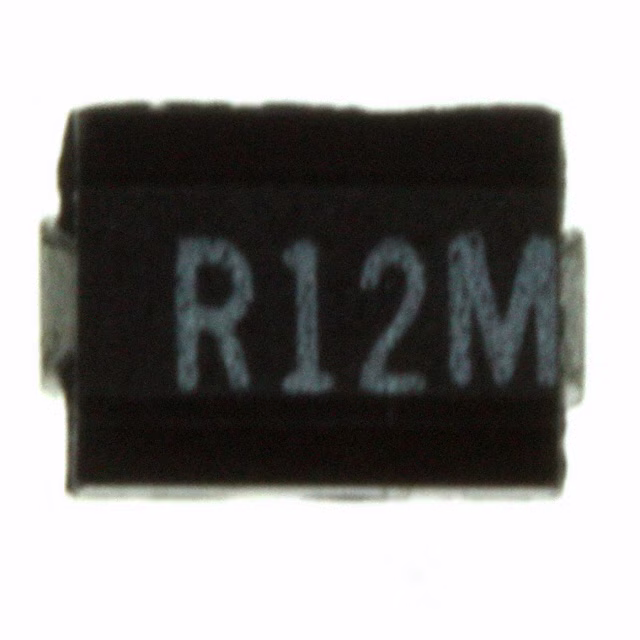

PM40-R12MFIXED IND 120NH 450MA 220MOHM SM |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 120 nH | ±20% | 450 mA | - | Unshielded | 220mOhm Max | 30 @ 25.2MHz | 500MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-R15MFIXED IND 150NH 450MA 250MOHM SM |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 150 nH | ±20% | 450 mA | - | Unshielded | 250mOhm Max | 30 @ 25.2MHz | 450MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
PM40-R18MFIXED IND 180NH 450MA 280MOHM SM |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 180 nH | ±20% | 450 mA | - | Unshielded | 280mOhm Max | 30 @ 25.2MHz | 400MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

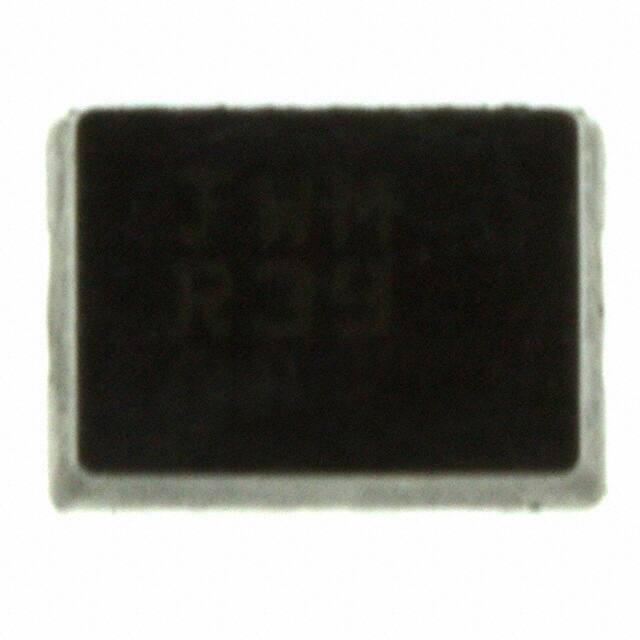

PM40-R39MFIXED IND 390NH 450MA 450MOHM SM |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 390 nH | ±20% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 350MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-R82MFIXED IND 820NH 450MA 670MOHM SM |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 820 nH | ±20% | 450 mA | - | Unshielded | 670mOhm Max | 30 @ 25.2MHz | 140MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-3R9KFIXED IND 3.9UH 330MA 900MOHM SM |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 3.9 µH | ±10% | 330 mA | - | Unshielded | 900mOhm Max | 50 @ 7.96MHz | 40MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-8R2KFIXED IND 8.2UH 270MA 1.4OHM SMD |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 8.2 µH | ±10% | 270 mA | - | Unshielded | 1.4Ohm Max | 50 @ 7.96MHz | 25MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-180KFIXED IND 18UH 190MA 2.8 OHM SMD |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 18 µH | ±10% | 190 mA | - | Unshielded | 2.8Ohm Max | 50 @ 2.52MHz | 15MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-270KFIXED IND 27UH 170MA 3.6 OHM SMD |
0 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 27 µH | ±10% | 170 mA | - | Unshielded | 3.6Ohm Max | 50 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
