Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLE063T-1R0MSFIXED IND 1UH 16A 6.5 MOHM SMD |
4,180 |
|
Datasheet |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 16 A | 14A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|
B82462G4153M000FIXED IND 15UH 1.25A 97 MOHM SMD |
3,297 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.25 A | 1.05A | Shielded | 97mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
BFSI00121109150M05INDUCTOR POWER |
3,023 |
|
Datasheet |
BFSI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 11 A | 13.5A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.346" (8.80mm) |
1.5mm.jpg)
|
74438335470FIXED IND 47UH 390MA 2.3 OHM SMD |
2,919 |
|
Datasheet |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 47 µH | ±20% | 550 mA | 1.5A | Shielded | 2.3Ohm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
74438322010FIXED IND 1UH 1.75A 133 MOHM SMD |
2,759 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±30% | 1.75 A | 3.35A | Shielded | 133mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2508 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
AIAP-03-102KFIXED IND 1MH 870MA 844 MOHM TH |
2,684 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 1 mH | ±10% | 870 mA | - | Unshielded | 844mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
BFSI001211094R7M05INDUCTOR POWER |
2,160 |
|
Datasheet |
BFSI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 20 A | 23A | Shielded | 6.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.346" (8.80mm) |
|
PF0601.123NLFIXED IND 12UH 1A 140 MOHM SMD |
2,090 |
|
Datasheet |
PF0601NL | Nonstandard | Tray | Active | Wirewound | - | 12 µH | ±20% | 1 A | 1A | Shielded | 140mOhm Max | - | 30MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
78438336012WE-MAIA SMT POWER INDUCTOR 1.2 U |
1,604 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.2 µH | ±20% | 3.9 A | 4.75A | Shielded | 36mOhm Max | - | 57MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
IHLP4040DZER470M8AFIXED IND 47UH 2.5A 178 MOHM SMD |
1,257 |
|
Datasheet |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3.1 A | 4.1A | Shielded | 178mOhm Max | - | 5.22MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
744062100FIXED IND 10UH 1.6A 70 MOHM SMD |
1,141 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.6 A | 1.4A | Shielded | 70mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
|
744062102FIXED IND 1MH 160MA 5 OHM SMD |
977 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±30% | 160 mA | 130mA | Shielded | 5Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
SPM7054VC-330M-DFIXED IND 33UH 3.3A 0.116OHM SMD |
612 |
|
Datasheet |
SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 3.3 A | 5.1A | Shielded | 116mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|

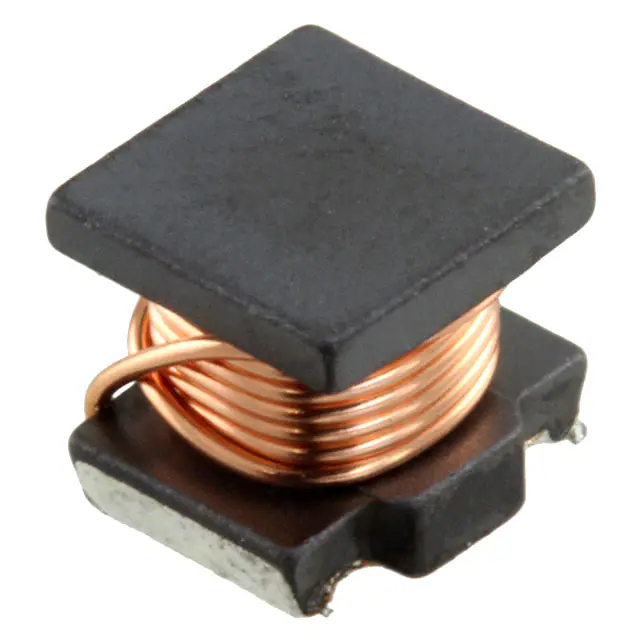

LQH55DN2R2M03LFIXED IND 2.2UH 3.2A 40.6MOHM SM |
540 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.2 A | - | Unshielded | 40.6mOhm Max | - | 80MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
744062220FIXED IND 22UH 1.22A 120MOHM SMD |
266 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.22 A | 950mA | Shielded | 120mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
|
LQH55DN100M03LFIXED IND 10UH 1.7A 130.2MOHM SM |
162 |
|
Datasheet |
LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | - | Unshielded | 130.2mOhm Max | - | 20MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
74438357012FIXED IND 1.2UH 7A 15.5 MOHM SMD |
2,807 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 7 A | 8.8A | Shielded | 15.5mOhm Max | - | 51MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
125CDMCCDS-470MCFIXED IND 47UH 4.5A 97.2MOHM SMD |
2,607 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 4.5 A | 6.3A | Shielded | 97.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
AIAP-03-103KFIXED IND 10MH 266MA 7.3 OHM TH |
2,343 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 10 mH | ±10% | 266 mA | - | Unshielded | 7.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
74438357018FIXED IND 1.8UH 5.8A 21 MOHM SMD |
2,295 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.8 µH | ±20% | 5.8 A | 8A | Shielded | 21mOhm Max | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
