Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXL1V0606-6R8-RFIXED IND 6.8UH 9A 20.8MOHM SMD |
2,453 |
|
Datasheet |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 9 A | 8.7A | Shielded | 20.8mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
SRR1210-121MFIXED IND 120UH 2.3A 170MOHM SMD |
2,448 |
|
Datasheet |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 2.3 A | 1.9A | Shielded | 170mOhm Max | 13 @ 796kHz | 2.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SRP4012TA-R60MFIXED IND 600NH 5.3A 26 MOHM SMD |
2,365 |
|
Datasheet |
SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 600 nH | ±20% | 5.3 A | 6A | Shielded | 26mOhm Max | 10 @ 100kHz | 117MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
IHLP2525BDERR22M01FIXED IND 220NH 21A 3.2 MOHM SMD |
2,265 |
|
Datasheet |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 21 A | 34A | Shielded | 3.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
SRR1210-270MFIXED IND 27UH 5A 40 MOHM SMD |
2,153 |
|
Datasheet |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 5 A | 4.2A | Shielded | 40mOhm Max | 16 @ 2.52MHz | 6.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
IHLP2525CZER4R7MA1IHLP-2525CZ-A1 4.7 20% ER E3 |
2,106 |
|
Datasheet |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
SRR1210-331MFIXED IND 330UH 1.4A 450MOHM SMD |
2,068 |
|
Datasheet |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.4 A | 1.2A | Shielded | 450mOhm Max | 14 @ 796kHz | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

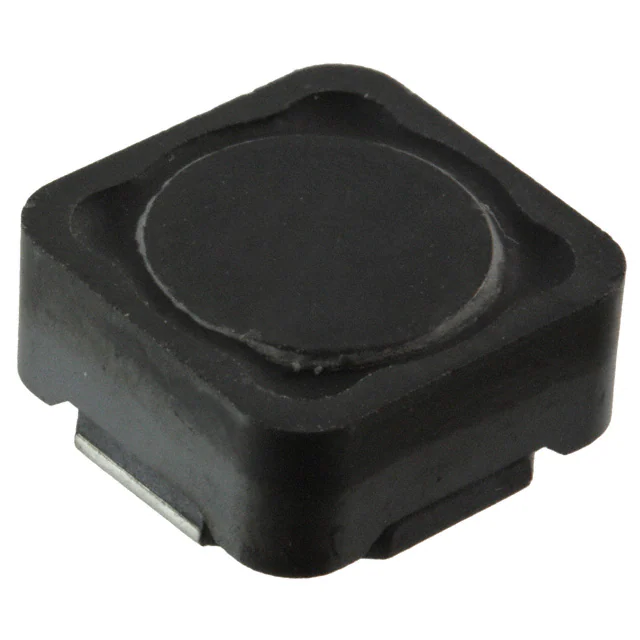

DRA125-470-RFIXED IND 47UH 2.59A 81 MOHM SMD |
1,823 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.59 A | 3.13A | Shielded | 81mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRP7030-2R2MFIXED IND 2.2UH 8A 0.02OHM SMD |
1,792 |
|
Datasheet |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±20% | 8 A | 12A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
AIUR-06-471KFIXED IND 470UH 1A 568 MOHM TH |
1,205 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1 A | 1.3A | Unshielded | 568mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
SRR1210-8R2YFIXED IND 8.2UH 7.3A 17 MOHM SMD |
728 |
|
Datasheet |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 7.3 A | 7.5A | Shielded | 17mOhm Max | 11 @ 7.96MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SPM4020T-1R0M-LRFIXED IND 1UH 5.6A 28.1 MOHM SMD |
596 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 5.6 A | 9A | Shielded | 28.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
IHLP2525CZER100M1AIHLP-2525CZ-1A 10 20% ER E3 |
560 |
|
Datasheet |
IHLP-2525CZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 4 A | 3.5A | Shielded | 71.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER6R8MA1IHLP-2525CZ-A1 6.8 20% ER E3 |
385 |
|
Datasheet |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER220M5AFIXED IND 22UH 2.8A 174 MOHM SMD |
23,202 |
|
Datasheet |
IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 2.8 A | 2.2A | Shielded | 174mOhm Max | - | 8.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP4040DZER6R8M01FIXED IND 6.8UH 8A 23.3 MOHM SMD |
9,994 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 8 A | 13.5A | Shielded | 23.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
B82462A4473K000FIXED IND 47UH 540MA 640MOHM SMD |
4,364 |
|
Datasheet |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 540 mA | 820mA | Unshielded | 640mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
SRP4020TA-8R2MFIXED IND 8.2UH 2A 180 MOHM SMD |
4,315 |
|
Datasheet |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 2 A | 2.5A | Shielded | 180mOhm Max | 10 @ 100kHz | 21MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP2020CZERR33M01FIXED IND 330NH 13.7A 5.56 MOHM |
3,969 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 13.7 A | 19A | Shielded | 5.56mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2020CZER100M11FIXED IND 10UH 2.75A 131.9 MOHM |
3,901 |
|
Datasheet |
IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.75 A | 2.25A | Shielded | 131.9mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
