Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744912139FIXED IND 39NH 3A 4.4 MOHM SMD |
610 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 39 nH | ±5% | 3 A | - | Unshielded | 4.4mOhm Max | 100 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|

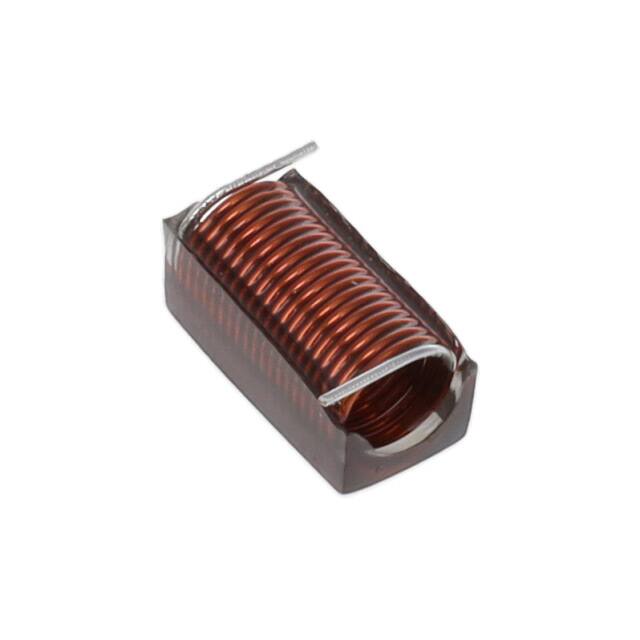

744918254FIXED IND 538NH 2A 90 MOHM SMD |
601 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 538 nH | ±5% | 2 A | - | Unshielded | 90mOhm Max | 100 @ 50MHz | 490MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
|
744912156FIXED IND 56NH 3A 6.2 MOHM SMD |
454 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 56 nH | ±5% | 3 A | - | Unshielded | 6.2mOhm Max | 100 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
VLCF5028T-220MR71-2FIXED IND 22UH 710MA 140MOHM SMD |
312 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 710 mA | 710mA | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
744912122FIXED IND 22NH 3A 4.2 MOHM SMD |
266 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 3 A | - | Unshielded | 4.2mOhm Max | 100 @ 150MHz | 3.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
CDRH3D16NP-100NCFIXED IND 10UH 550MA 210MOHM SMD |
28,997 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 550 mA | - | Shielded | 210mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
CDRH127L125NP-220MCFIXED IND 22UH 4.6A 36.7MOHM SMD |
6,933 |
|
Datasheet |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 22 µH | ±20% | 4.6 A | 5.6A | Shielded | 36.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH3D16NP-3R3NCFIXED IND 3.3UH 1.1A 85 MOHM SMD |
6,391 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.1 A | - | Shielded | 85mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
IHLP2020BZERR47M11FIXED IND 470NH 12.5A 7.7MOHM SM |
5,548 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 12.5 A | 8A | Shielded | 7.7mOhm Max | - | 83MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
CDRH127L125NP-470MCFIXED IND 47UH 3.1A 83.2MOHM SMD |
5,000 |
|
Datasheet |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 47 µH | ±20% | 3.1 A | 3.9A | Shielded | 83.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
MGAH10043R3M-101004 INDUCTOR 3.3UH 10A |
4,580 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 10 A | 16A | Shielded | 11.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
7447706330FIXED IND 33UH 3A 60 MOHM SMD |
3,358 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3 A | 4.2A | Shielded | 60mOhm Max | - | 9.2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
SLF7045T-101MR60-HFIXED IND 100UH 600MA 468MOHM SM |
3,110 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 600 mA | 600mA | Shielded | 468mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
7447706680FIXED IND 68UH 2.3A 97 MOHM SMD |
2,897 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 2.3 A | 3A | Shielded | 97mOhm Max | - | 6.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
MWSA0603S-4R7MTFIXED IND 4.7UH 6A 33 MOHM SMD |
2,770 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 6 A | 9A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MGAH1004220M-101004 INDUCTOR 22UH 5A |
2,738 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 22 µH | ±20% | 5 A | 5.5A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
IHLP1616BZERR22M11FIXED IND 220NH 9A 7 MOHM SMD |
2,565 |
|
Datasheet |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 9 A | 9A | Shielded | 7mOhm Max | - | 158MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
CDRH127L125NP-101MCFIXED IND 100UH 2A 171.2MOHM SMD |
2,026 |
|
Datasheet |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 100 µH | ±20% | 2 A | 2.6A | Shielded | 171.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
SLF12575T-220M4R0-PFFIXED IND 22UH 4A 31.6 MOHM SMD |
1,262 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | 4A | Shielded | 31.6mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|

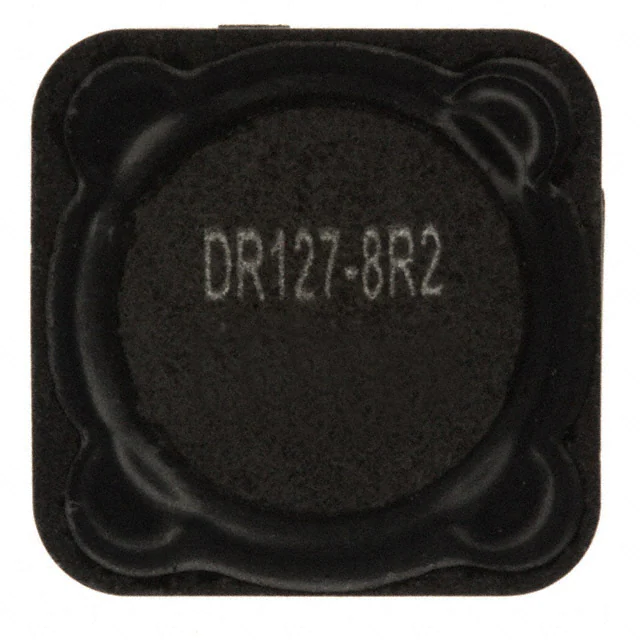

DR127-8R2-RFIXED IND 8.2UH 6.32A 15.7 MOHM |
1,258 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 6.32 A | 12.2A | Shielded | 15.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
