Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX10-10-52LP-RFIXED IND 10UH 16.9A 5.1 MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 16.9 A | 20.9A | Unshielded | 5.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.339" Dia (34.00mm) | 0.843" (21.40mm) |
|
ERU33M-4R6LFLAT WIRE PTH HIGH CURRENT IND 4 |
4 |
|
Datasheet |
ERU33M | Nonstandard, 2 Lead | Tray | Active | Wirewound | Alloy Powder | 4.6 µH | ±15% | 58 A | 75A | Shielded | 0.85mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.299" L x 1.142" W (33.00mm x 29.00mm) | 0.622" (15.80mm) |
|
|
LHDM003231AUDV0EDUST CHOKE COIL |
0 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | 300 µH | ±20% | 3 A | - | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.319" Dia x 0.728" W (33.50mm x 18.50mm) | - |
|
|
LHDM005550ARDV0EDUST CHOKE COIL |
0 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | 95 µH | ±20% | 5 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.063" Dia x 0.571" W (27.00mm x 14.50mm) | - |
|
7444211415220FIXED IND 22UH 5.7A 14.8MOHM TH |
20 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 5.7 A | 7A | Unshielded | 14.8mOhm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|
|
7444011715082FIXED IND 8.2UH 10A 7 MOHM TH |
9 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 8.2 µH | ±20% | 10 A | 34A | Unshielded | 7mOhm | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.768" (19.50mm) |
|
|
7444011715150FIXED IND 15UH 10A 7 MOHM TH |
6 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 15 µH | ±20% | 10 A | 18A | Unshielded | 7mOhm | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.768" (19.50mm) |
|
|
7444013119150FIXED IND 15UH 11A 4.8 MOHM TH |
0 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 15 µH | ±20% | 11 A | 41A | Unshielded | 4.8mOhm | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
|
|
LHDM010330AUDV0EDUST CHOKE COIL |
0 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | 48 µH | ±20% | 10 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.417" Dia x 0.807" W (36.00mm x 20.50mm) | - |
|
|
CTX1000-1-52M-RFIXED IND 1MH 1.5A 638 MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±20% | 1.5 A | 2.1A | Unshielded | 638mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.228" (31.20mm) |
|
|
CTX500-2-52LP-RFIXED IND 500UH 3.1A 183 MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3.1 A | 3.3A | Unshielded | 183mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.445" Dia (36.70mm) | 0.583" (14.80mm) |
|
|
HMP1911-2R0IND SMD 2.0UH ASSEMBLY CHOKE |
0 |
|
Datasheet |
HMP1911 | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±10% | 56 A | 50A | Unshielded | 0.88mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.768" W (19.50mm x 19.50mm) | 0.453" (11.50mm) |
|
|
CTX50-7-52M-RFIXED IND 50UH 10.5A 16.3MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.587" (40.30mm) |
|
|
CTX500-2-52-RFIXED IND 500UH 3.1A 183 MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3.1 A | 3.3A | Unshielded | 183mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.445" Dia x 0.583" W (36.70mm x 14.80mm) | - |
|
|
HMP2015L-6R8IND SMD 6.8UH ASSEMBLY CHOKE |
0 |
|
Datasheet |
HMP2015L | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±10% | 29 A | 33.5A | Unshielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.787" L x 0.807" W (20.00mm x 20.50mm) | 0.551" (14.00mm) |
|
|
CTX100-5-52-RFIXED IND 100UH 8.2A 26.7MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 8.2 A | 7.5A | Unshielded | 26.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.488" Dia x 0.661" W (37.80mm x 16.80mm) | - |
|
|
HMP2112HG-150LIND SMD 15.0UH ASSEMBLY CHOKE |
0 |
|
Datasheet |
HMP211X | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±10% | 21 A | 16A | Unshielded | 3.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
|
HMP2112H-100IND SMD 10.0UH ASSEMBLY CHOKE |
0 |
|
Datasheet |
HMP211X | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±10% | 21 A | 23A | Unshielded | 3.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
5500R-686KFIXED IND 68MH 140MA 52.8OHM SMD |
12 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 mH | ±10% | 140 mA | 70mA | Unshielded | 52.8Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|

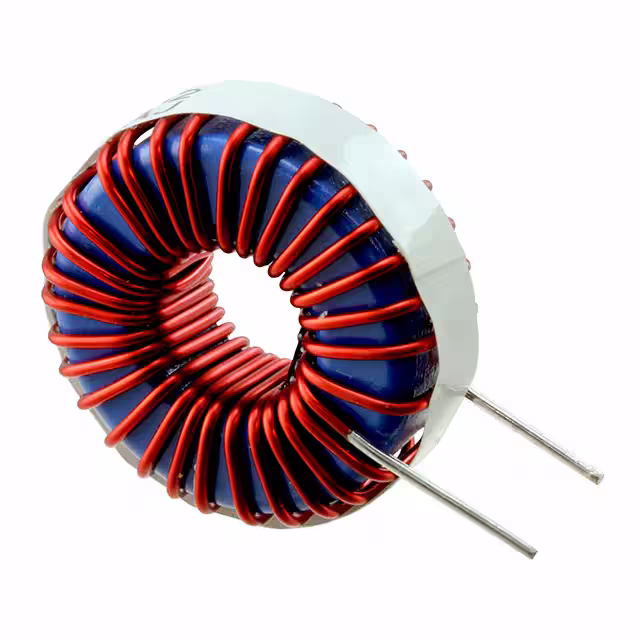

CTX100-5-52M-RFIXED IND 100UH 8.2A 26.7MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 8.2 A | 7.5A | Unshielded | 26.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.583" (40.20mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
