Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0420CDMCCDS-R22MCFIXED IND 220NH 12A 6.6 MOHM |
16,592 |
|
Datasheet |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 12 A | 18A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
74405042033FIXED IND 3.3UH 2.3A 72 MOHM SMD |
11,610 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.3 A | 5.9A | Shielded | 72mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.079" (2.00mm) |
|
0530CDMCCDS-3R3MCFIXED IND 3.3UH 5.1A 38MOHM SMD |
11,090 |
|
Datasheet |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 5.1 A | 8A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
0420CDMCCDS-2R2MCFIXED IND 2.2UH 4.3A 58MOHM SMD |
8,294 |
|
Datasheet |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 4.3 A | 6.3A | Shielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
74405042100FIXED IND 10UH 1.7A 216 MOHM SMD |
8,013 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 3.5A | Shielded | 216mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.079" (2.00mm) |
|
SRN8040TA-6R8MFIXED IND 6.8UH 5.1A 25 MOHM SMD |
8,006 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.1 A | 5.6A | Shielded | 25mOhm | 15 @ 1MHz | 29MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
TFM322512ALMA1R5MTAAFIXED IND 1.5UH 3.2A 57MOHM SMD |
6,286 |
|
Datasheet |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.2 A | 4A | Shielded | 57mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
CDRH2D18/HPNP-150NCFIXED IND 15UH 640MA 345MOHM SMD |
6,245 |
|
Datasheet |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 640 mA | 700mA | Shielded | 345mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
ASPI-0530HI-1R0M-T2FIXED IND 1UH 7A 14 MOHM SMD |
4,944 |
|
Datasheet |
ASPI-0530HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 7 A | 11A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
SLF7032T-220MR96-2PFFIXED IND 22UH 960MA 132MOHM SMD |
4,897 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 960 mA | - | Shielded | 132mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|

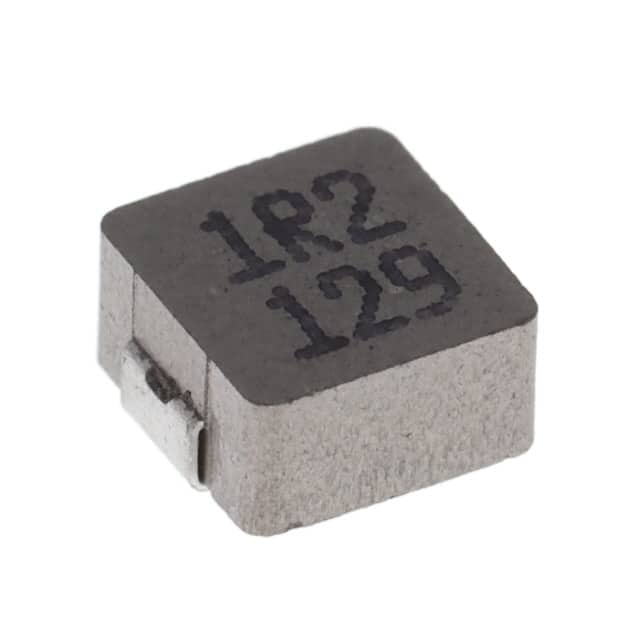

0530CDMCCDS-1R2MCFIXED IND 1.2UH 8.7A 16MOHM SMD |
4,538 |
|
Datasheet |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.2 µH | ±20% | 8.7 A | 13.5A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRN8040TA-330MFIXED IND 33UH 2.3A 100 MOHM SMD |
4,108 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.3 A | 2.6A | Shielded | 100mOhm | 12 @ 1MHz | 15MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
0530CDMCCDS-100MCFIXED IND 10UH 2.8A 125MOHM SMD |
3,884 |
|
Datasheet |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 2.8 A | 4A | Shielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
0420CDMCCDS-220MCFIXED IND 22UH 1.2A 363MOHM SMD |
3,446 |
|
Datasheet |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 1.2 A | 1.4A | Shielded | 363mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
74405042068FIXED IND 6.8UH 1.9A 156MOHM SMD |
2,807 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.9 A | 4.2A | Shielded | 156mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.079" (2.00mm) |
|
|
74405042047FIXED IND 4.7UH 2.1A 108MOHM SMD |
1,546 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.1 A | 4.9A | Shielded | 108mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.079" (2.00mm) |
|
RLB9012-471KLFIXED IND 470UH 680MA 1.1 OHM TH |
1,275 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 680 mA | - | Unshielded | 1.1Ohm Max | 20 @ 796kHz | 1.9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
SRN8040TA-100MFIXED IND 10UH 4.6A 33 MOHM SMD |
1,017 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.6 A | 5A | Shielded | 33mOhm | 15 @ 1MHz | 25MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
ASPI-0630LR-3R3M-T15FIXED IND 3.3UH 6.5A 28 MOHM SMD |
35,494 |
|
Datasheet |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6.5 A | 10A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-1R0M-T15FIXED IND 1UH 12A 9 MOHM SMD |
25,229 |
|
Datasheet |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 12 A | 15A | Shielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
