Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1305V2-R10-RFIXED IND 100NH 43A 0.59MOHM SMD |
2 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 nH | ±20% | 43 A | 80A | Shielded | 0.59mOhm Max | - | 234MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
SBC8-472-391FIXED IND 4.7MH 390MA 3.2 OHM TH |
0 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 390 mA | 530mA | Unshielded | 3.2Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.886" (22.50mm) |
|
|
SBC2-331-341FIXED IND 330UH 340MA 1.4 OHM TH |
10 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 340 mA | 370mA | Unshielded | 1.4Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
|
ASPI-F7050-4R7M-TIND 4.7UH 11A 15.4M |
0 |
|
Datasheet |
ASPI-F7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 11 A | 7A | Shielded | 17.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.201" (5.10mm) |
|
B82477P2224M000FIXED IND 220UH 1.15A 300MOHM SM |
0 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.15 A | 800mA | Shielded | 300mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
B82477P2683M000FIXED IND 68UH 1.85A 110MOHM SMD |
0 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.85 A | 1.5A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
744304016FIXED IND 160NH 24A 0.00017OHM |
0 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 160 nH | ±20% | 24 A | 32A | Shielded | 0.17mOhm | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1240 | 0.453" L x 0.465" W (11.50mm x 11.80mm) | 0.161" (4.10mm) |
|

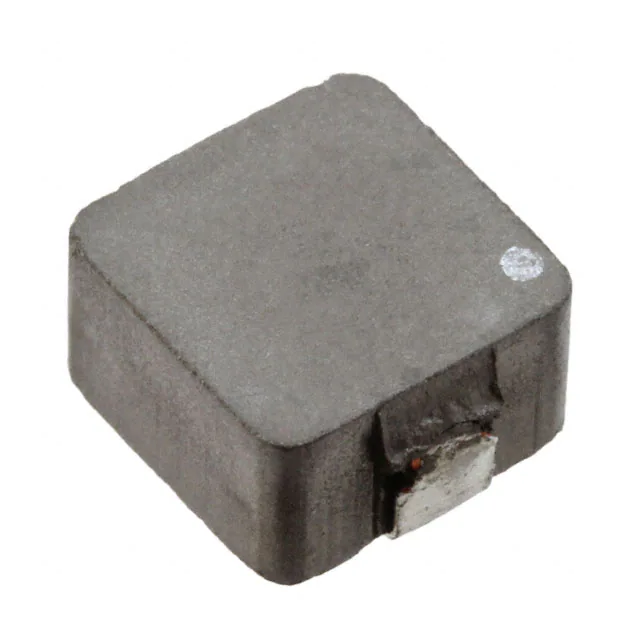

MPC0740LR42CFIXED IND 420NH 22A 1.55MOHM SMD |
0 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 420 nH | ±20% | 22 A | 20A | Shielded | 1.55mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
33151CFIXED IND 150UH 2A 84 MOHM TH |
12 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 150 µH | ±15% | 2 A | - | Unshielded | 84mOhm Max | 3.8 @ 800kHz | 7.2MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
|
33331CFIXED IND 330UH 1.3A 126 MOHM TH |
7 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 330 µH | ±15% | 1.3 A | - | Unshielded | 126mOhm Max | 3.4 @ 800kHz | 1.9MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
SPM6550T-1R5M-HZFIXED IND 1.5UH 17.1A 6.49 MOHM |
22 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 17.1 A | 7.7A | Shielded | 6.49mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
B82464P4684M000FIXED IND 680UH 420MA 1.3OHM SMD |
0 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 460mA | Shielded | 1.3Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

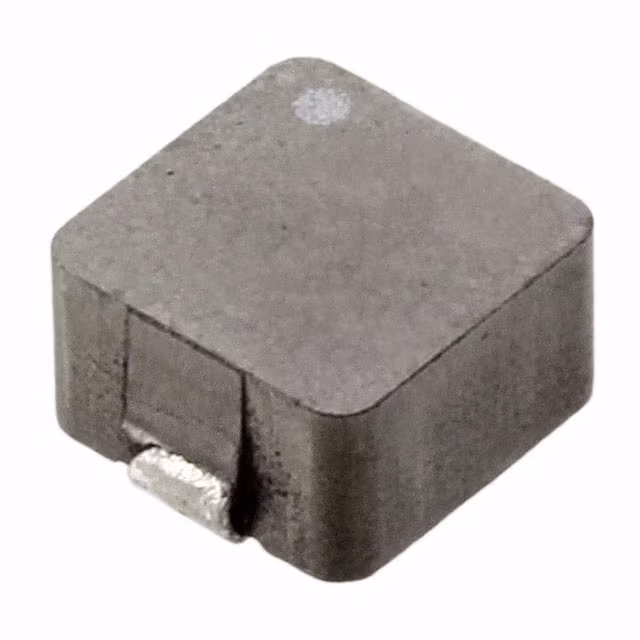

MPCH0740LR36EFIXED IND 360NH 23A 1.42MOHM SMD |
0 |
|
Datasheet |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 360 nH | ±20% | 23 A | 22A | Shielded | 1.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
DRA124-3R3-RFIXED IND 3.3UH 6.94A 9 MOHM SMD |
4 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.94 A | 11.85A | Shielded | 9mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
PE-53817SNLFIXED IND 375UH 360MA 1.3OHM SMD |
3 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 375 µH | ±20% | 360 mA | - | Shielded | 1.3Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
MPCH1040LR36FIXED IND 360NH 28A 0.88MOHM SMD |
0 |
|
Datasheet |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 360 nH | ±20% | 28 A | 24A | Shielded | 0.88mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PA4346.471ANLTFIXED IND 470NH 34A 0.9 MOHM SMD |
0 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 34 A | 58A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
744071101FIXED IND 100UH 1A 320 MOHM SMD |
0 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1 A | 900mA | Shielded | 320mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
SBCP-87HY101HFIXED IND 100UH 900MA 300MOHM TH |
0 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 900 mA | 870mA | Unshielded | 300mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
SRP7030CA-8R2MFIXED IND 8.2UH 5.9A 0.04873OHM |
0 |
|
Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 8.2 µH | ±20% | 5.9 A | 10.2A | Shielded | 48.73mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
