Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0640CDMCCDS-3R3MCFIXED IND 3.3UH 8A 21.5MOHM SMD |
0 |
|
Datasheet |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 8 A | 8.5A | Shielded | 21.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.157" (4.00mm) |
|
SDE1006A-220MFIXED IND 22UH 2.6A 100 MOHM SMD |
12 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.6 A | 2.8A | Unshielded | 100mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-4R7MFIXED IND 4.7UH 4.7A 36 MOHM SMD |
3 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.7 A | 5.2A | Unshielded | 36mOhm Max | - | 37.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-151KFIXED IND 150UH 1.1A 470MOHM SMD |
0 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.1 A | 1.2A | Unshielded | 470mOhm Max | - | 6.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-561KFIXED IND 560UH 550MA 1.9OHM SMD |
0 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 550 mA | 600mA | Unshielded | 1.9Ohm Max | - | 3.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
MDMK4040T1R0MFVFIXED IND 1UH 3.5A 47 MOHM SMD |
0 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.5 A | 7.5A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
MDWK4040TR56NMVFIXED IND 560NH 6.5A 16MOHM SMD |
0 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 560 nH | ±30% | 6.5 A | 9A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
P0250.473NLFIXED IND 47UH 2.6A 86 MOHM SMD |
32 |
|
Datasheet |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 47 µH | ±15% | 2.6 A | 4.5A | Unshielded | 86mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
RCR110DNP-100MFIXED IND 10UH 3.51A 23 MOHM TH |
0 |
|
Datasheet |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Ferrite | 10 µH | ±20% | 3.51 A | - | Shielded | 23mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
CR43NP-2R7MCFIXED IND 2.7UH 1.58A 78.7 MOHM |
0 |
|
Datasheet |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 1.58 A | - | Unshielded | 78.7mOhm Max | - | 64MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
NS10145T331MNVVFIXED IND 330UH 640MA 840MOHM SM |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 640 mA | 710mA | Shielded | 840mOhm Max | - | 3.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10155T100MNVVFIXED IND 10UH 4.4A 24 MOHM SMD |
0 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 4.4 A | 4.49A | Shielded | 24mOhm Max | - | 20.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
1248AS-H-1R5N=P3FIXED IND 1.5UH 8A 10.1 MOHM SMD |
0 |
|
Datasheet |
DEM8040C | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8 A | 10A | Shielded | 10.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
1248AS-H-3R3N=P3FIXED IND 3.3UH 5.6A 19.2MOHM SM |
0 |
|
Datasheet |
DEM8040C | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.6 A | 7.2A | Shielded | 19.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
26S220CFIXED IND 22UH 2.2A 70 MOHM SMD |
0 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | - | 2.2 A | - | Shielded | 70mOhm Max | - | 15.5MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.181" W (12.60mm x 4.60mm) | 0.232" (5.90mm) |
|
|
26S470CFIXED IND 47UH 1.5A 120MOHM SMD |
0 |
|
Datasheet |
2600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | - | 1.5 A | - | Shielded | 120mOhm Max | - | 9.44MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.181" W (12.60mm x 4.60mm) | 0.232" (5.90mm) |
|
|
1248AS-H-6R8N=P3FIXED IND 6.8UH 4.2A 36 MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.2 A | 4.8A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
PM5022-681M-RCFIXED IND 680UH 700MA 1.2OHM SMD |
0 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 700 mA | 1.2A | Unshielded | 1.2Ohm | 12 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|

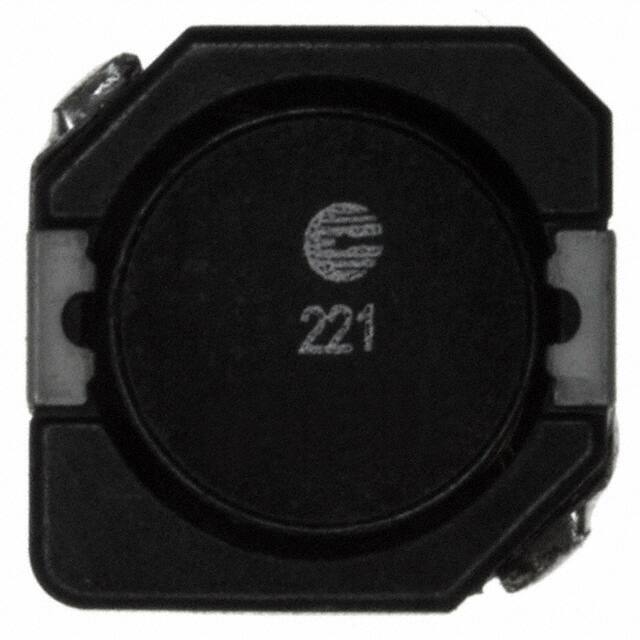

DR1040-221-RFIXED IND 220UH 700MA 640MOHM SM |
0 |
|
Datasheet |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 700 mA | 920mA | Shielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
744772152FIXED IND 1.5MH 300MA 3 OHM TH |
0 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 300 mA | 400mA | Unshielded | 3Ohm Max | - | 1.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
