Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1536DFIXED IND 3.35UH 20A 10 MOHM TH |
4 |
|
Datasheet |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 3.35 µH | ±20% | 20 A | - | Unshielded | 10mOhm | - | 45MHz | - | - | 7.9 MHz | - | Through Hole | - | 0.530" Dia x 1.310" L (13.46mm x 33.27mm) | - |
|
744136FIXED IND 346UH 3.8A 140 MOHM TH |
22 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 346 µH | ±20% | 3.8 A | 1.5A | Unshielded | 140mOhm Max | - | 3.3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) | - |
|
IHLP6767GZERR47M8AFIXED IND 470NH 65A 0.95MOHM SMD |
1 |
|
Datasheet |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 65 A | 76A | Shielded | 0.95mOhm Max | - | 52.3MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
2222-V-RCFIXED IND 680UH 2.1A 230 MOHM TH |
0 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 680 µH | ±15% | 2.1 A | - | Shielded | 230mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
744137FIXED IND 630UH 3.1A 175 MOHM TH |
15 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 630 µH | ±20% | 3.1 A | 1A | Unshielded | 175mOhm Max | - | 1.5MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) | - |
|
HC1-1R0-RFIXED IND 1UH 28.01A 1.23MOHM SM |
1 |
|
Datasheet |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±15% | 28.01 A | 25.4A | Unshielded | 1.23mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
S1812R-222KFIXED IND 2.2UH 658MA 460MOHM SM |
0 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 658 mA | - | Shielded | 460mOhm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

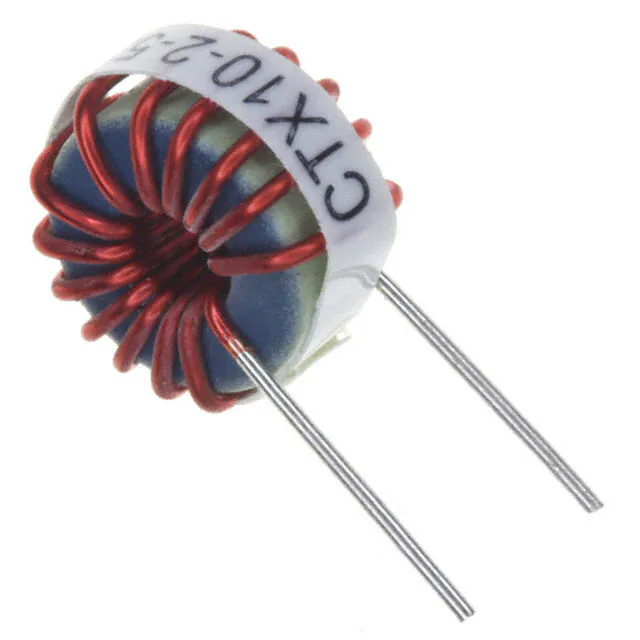

CTX10-2-52-RFIXED IND 10UH 4.7A 18.3 MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 4.7 A | 4.5A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.500" Dia x 0.307" W (12.70mm x 7.80mm) | - |
|
SH50S-3.0-47FIXED IND 47UH 3A 50 MOHM SMD |
0 |
|
Datasheet |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.451" (11.45mm) |
|
4590R-273KFIXED IND 27UH 5.15A 25 MOHM TH |
0 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 5.15 A | 3.2A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-334KFIXED IND 330UH 1.61A 257MOHM TH |
0 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.61 A | 950mA | Unshielded | 257mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-563KFIXED IND 56UH 3.93A 43 MOHM TH |
0 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 3.93 A | 2.3A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
744118FIXED IND 600UH 2.2A 330 MOHM TH |
2 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 600 µH | ±20% | 2.2 A | 1.1A | Unshielded | 330mOhm Max | - | 1.3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.551" W (30.00mm x 14.00mm) | - |
|

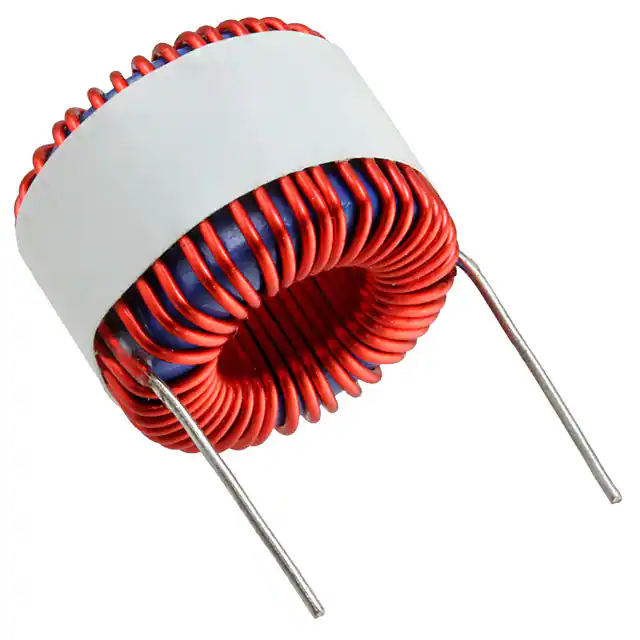

CTX100-1-52LP-RFIXED IND 100UH 2.5A 106 MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 2.5 A | 2.4A | Unshielded | 106mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.610" Dia (15.50mm) | 0.488" (12.40mm) |
|
7443782012100FIXED IND 10UH 20.6A 5 MOHM TH |
13 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 20.6 A | 20.6A | Shielded | 5mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|

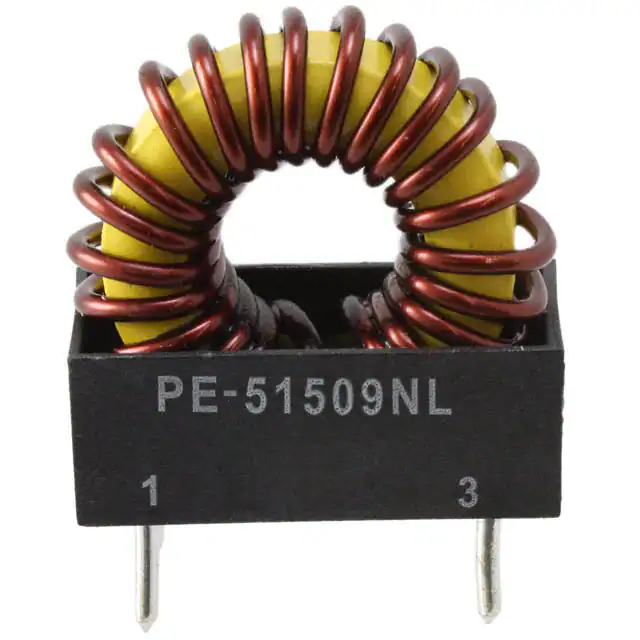

PE-51509NLFIXED IND 14UH 10A 9 MOHM TH |
1 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 14 µH | - | 10 A | - | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|
5731-RCFIXED IND 40UH 4A 25 MOHM TH |
16 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 40 µH | ±15% | 4 A | - | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) | - |
|

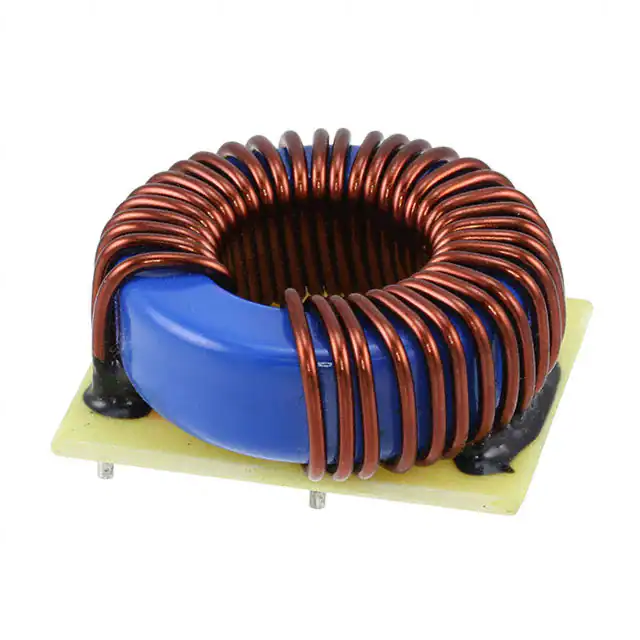

S14100032FIXED IND 150UH 10A 21 MOHM TH |
14 |
|
Datasheet |
WE-LCB | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 10 A | - | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.516" L x 1.496" W (38.50mm x 38.00mm) | 0.709" (18.00mm) |
|
B82559B5472A019FIXED IND 4.7UH 25.1A 2.25 MOHM |
0 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 25.1 A | 25.5A | Shielded | 2.25mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.417" (10.60mm) |
.jpg)
|
IHLP7575GZER1R5M5AFIXED IND 1.5UH 48A 1.62 MOHM HI |
3 |
|
Datasheet |
IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 48 A | 63A | Shielded | 1.62mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
