Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744710605FIXED IND 6UH 5A 11.7 MOHM TH |
0 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 5 A | - | Unshielded | 11.7mOhm | - | 60MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.272" Dia x 0.807" L (6.90mm x 20.50mm) | - |
|
33680CFIXED IND 68UH 2.9A 57 MOHM TH |
17 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 68 µH | ±15% | 2.9 A | - | Unshielded | 57mOhm Max | 3.5 @ 1MHz | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|

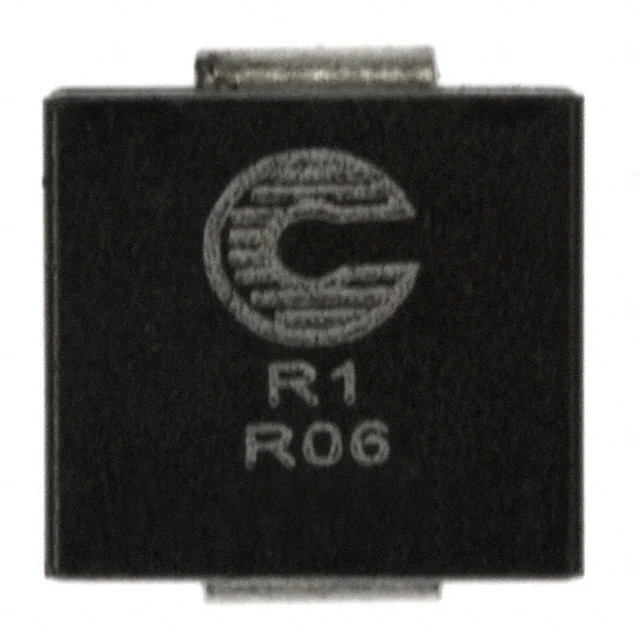

FP0805R1-R06-RFIXED IND 58NH 65A 0.17 MOHM SMD |
11 |
|
Datasheet |
FLAT-PAC, FP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 58 nH | ±10% | 65 A | 83A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.300" L x 0.295" W (7.62mm x 7.49mm) | 0.195" (4.96mm) |
|
|
33220CFIXED IND 22UH 5.1A 33 MOHM TH |
9 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 22 µH | ±15% | 5.1 A | - | Unshielded | 33mOhm Max | 3.4 @ 1MHz | 37MHz | - | -40°C ~ 125°C | 1 MHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
|
33102CFIXED IND 1MH 760MA 221 MOHM TH |
0 |
|
Datasheet |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 1 mH | ±15% | 760 mA | - | Unshielded | 221mOhm Max | 0.85 @ 800kHz | 700kHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
SBC7-330-342FIXED IND 33UH 3.4A 50 MOHM TH |
18 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 6.2A | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
UP1B-680-RFIXED IND 68UH 580MA 732MOHM SMD |
0 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 580 mA | 670mA | Unshielded | 732mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
7447773022FIXED IND 2.2UH 4.8A 17.5MOHM SM |
24 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.8 A | 8A | Shielded | 17.5mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
9250A-472-RCFIXED IND 4.7UH 380MA 550MOHM TH |
0 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 4.7 µH | ±10% | 380 mA | 380mA | Shielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-824-RCFIXED IND 820UH 80MA 13 OHM TH |
0 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 820 µH | ±10% | 80 mA | 45mA | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
SBCP-87HY102HFIXED IND 1MH 250MA 2.82 OHM TH |
0 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 250 mA | 270mA | Unshielded | 2.82Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
1536YFIXED IND 500UH 2A 260 MOHM TH |
7 |
|
Datasheet |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 500 µH | ±20% | 2 A | - | Unshielded | 260mOhm | - | 1.17MHz | - | - | 1 kHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
SLF12565T-150M4R2-HFIXED IND 15UH 4.2A 28.44MOHM SM |
0 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.2 A | 4.2A | Shielded | 28.44mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
CLF12555T-3R3N-DFIXED IND 3.3UH 5.7A 13.4MOHM SM |
0 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.7 A | 11.4A | Shielded | 13.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|

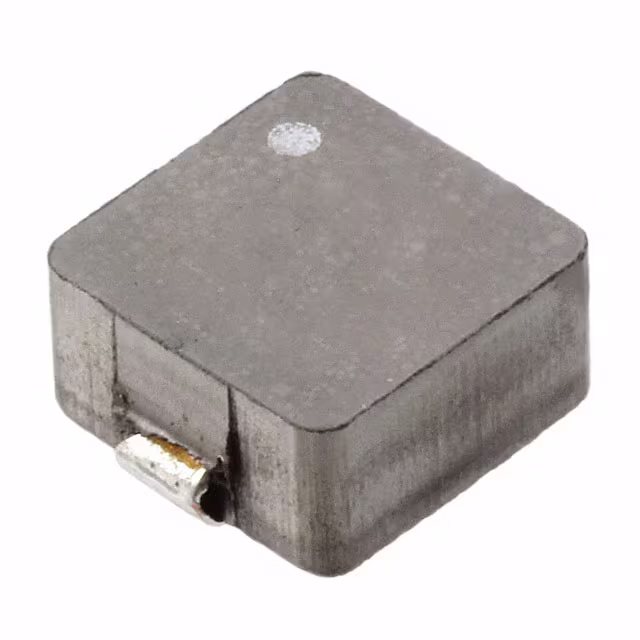

MPCH1055L1R3FIXED IND 1.3UH 18.5A 2.3MOHM SM |
0 |
|
Datasheet |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.3 µH | ±20% | 18.5 A | 17A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.461" L x 0.394" W (11.70mm x 10.00mm) | 0.217" (5.50mm) |
|

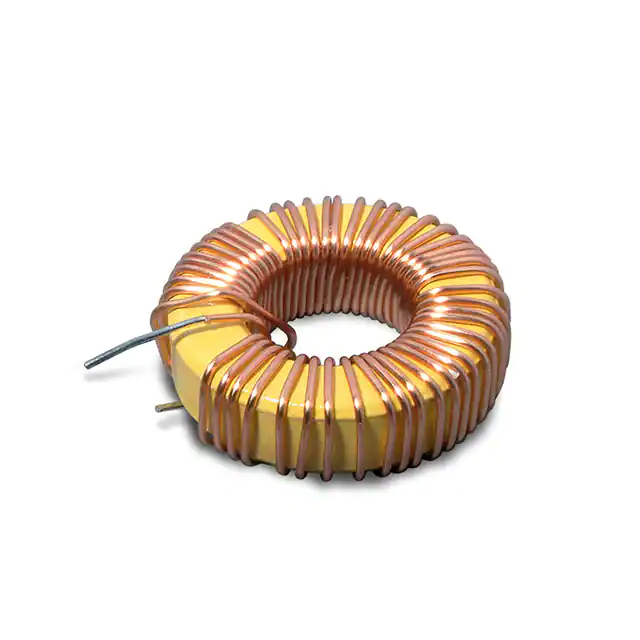

744150FIXED IND 26UH 10.3A 15 MOHM TH |
3 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 26 µH | ±20% | 10.3 A | 4A | Shielded | 15mOhm Max | - | 25MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.122" Dia x 0.571" W (28.50mm x 14.50mm) | - |
|
744775118FIXED IND 18UH 1.89A 100MOHM SMD |
18 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1.89 A | 2.14A | Unshielded | 100mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
MWSA1707S-680MTFIXED IND 68UH 85 MOHM SMD |
0 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 68 µH | ±20% | - | - | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
FP0705R1-R22-RFIXED IND 220NH 43A 0.25MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 43 A | 20A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
744750460100FIXED IND 10UH 9.2A 8.6 MOHM TH |
0 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9.2 A | 11.3A | Shielded | 8.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.504" Dia (12.80mm) | 0.622" (15.80mm) |
