Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHB2EB100KFIXED IND 10UH 10A 9 MOHM TH |
30 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 10 µH | ±10% | 10 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|
|
CPRX2520L-100MCTHT HIGH CURRENT POWER INDUCTOR |
56 |
|
Datasheet |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 44 A | 45A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520L-6R8MCTHT HIGH CURRENT POWER INDUCTOR |
55 |
|
Datasheet |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 53 A | 60A | Shielded | 1.15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520L-4R7MCTHT HIGH CURRENT POWER INDUCTOR |
49 |
|
Datasheet |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 62 A | 70A | Shielded | 0.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
CTDAT1623F-100MSMD SHLD PWR INDUCTOR FOR DIG AM |
23 |
|
Datasheet |
CTDAT1623F | Vertical, 4 PC Pin | Bulk | Active | Wirewound | - | 10 µH | ±20% | 6.4 mA | 15A | Shielded | 12Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.906" (23.00mm) |
|
|
CPRX2520L-2R2MCTHT HIGH CURRENT POWER INDUCTOR |
80 |
|
Datasheet |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 75 A | 110A | Shielded | 0.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520L-3R3MCTHT HIGH CURRENT POWER INDUCTOR |
59 |
|
Datasheet |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 65 A | 90A | Shielded | 0.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520L-8R2MCTHT HIGH CURRENT POWER INDUCTOR |
36 |
|
Datasheet |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 47 A | 50A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
CSCF3218-100MCSMD HIGH CURRENT POWER INDUCTOR |
84 |
|
Datasheet |
CSCF3218 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 40 A | 45A | Shielded | 2.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 2-SMD, J-Lead | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.748" (19.00mm) |
|
CPCF3218A-6R8MCTHT HIGH CURRENT POWER INDUCTOR |
35 |
|
Datasheet |
CPCF | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 50 A | 55A | Shielded | 1.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.186" Dia x 1.260" L (4.72mm x 32.00mm) | 0.748" (19.00mm) |
|
|
CPCF3218A-3R3MCTHT HIGH CURRENT POWER INDUCTOR |
33 |
|
Datasheet |
CPCF | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 55 A | 80A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.186" Dia x 1.260" L (4.72mm x 32.00mm) | 0.748" (19.00mm) |
|
|
CPEX2626H-4R5MCTHT HIGH CURRENT POWER INDUCTOR |
20 |
|
Datasheet |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.5 µH | ±20% | 44 A | 150A | Shielded | 1.48mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-7R0MCTHT HIGH CURRENT POWER INDUCTOR |
20 |
|
Datasheet |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 7 µH | ±20% | 36 A | 114A | Shielded | 2.2mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-150MCTHT HIGH CURRENT POWER INDUCTOR |
20 |
|
Datasheet |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 25 A | 75A | Shielded | 4.66mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-2R0MCTHT HIGH CURRENT POWER INDUCTOR |
20 |
|
Datasheet |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2 µH | ±20% | 60 A | 225A | Shielded | 0.64mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-120MCTHT HIGH CURRENT POWER INDUCTOR |
20 |
|
Datasheet |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 12 µH | ±20% | 28 A | 88A | Shielded | 3.56mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-100MCTHT HIGH CURRENT POWER INDUCTOR |
20 |
|
Datasheet |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 30 A | 95A | Shielded | 2.99mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-8R4MCTHT HIGH CURRENT POWER INDUCTOR |
20 |
|
Datasheet |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 8.4 µH | ±20% | 33 A | 100A | Shielded | 2.62mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-2R7MCTHT HIGH CURRENT POWER INDUCTOR |
20 |
|
Datasheet |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2.7 µH | ±20% | 56 A | 180A | Shielded | 0.9mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|

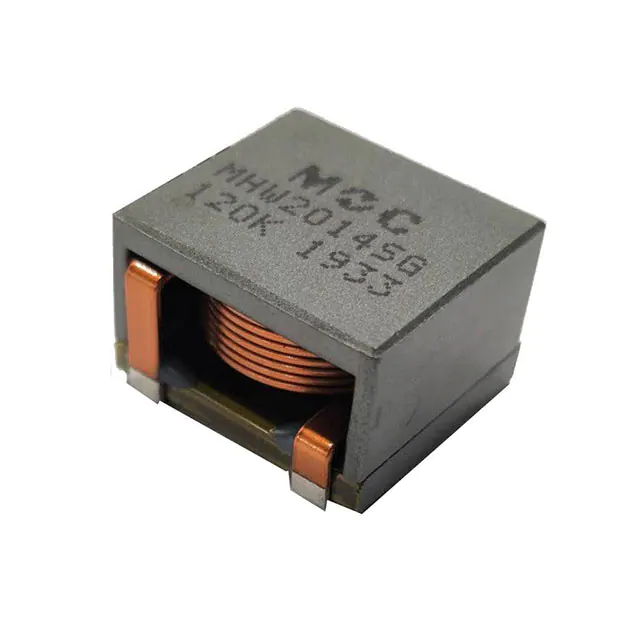

MHW2014SG120KFIXED IND 12UH 12A 5 MOHM SMD |
65 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 12 µH | ±10% | 12 A | 22A | - | 5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.555" (14.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
