Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPRH1210-3R3NSMD POWER INDUCTOR |
250 |
|
Datasheet |
SPRH1210 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 8.44 A | 19.1A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-8R2NSMD POWER INDUCTOR |
250 |
|
Datasheet |
SPRH1210 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 6.79 A | 12.17A | Shielded | 16.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-390MSMD POWER INDUCTOR |
250 |
|
Datasheet |
SPRH1210 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 3.83 A | 6A | Shielded | 53.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-2R2NSMD POWER INDUCTOR |
250 |
|
Datasheet |
SPRH1210 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 9.1 A | 23.2A | Shielded | 9.48mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-560MSMD POWER INDUCTOR |
250 |
|
Datasheet |
SPRH1210 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 3.28 A | 4.7A | Shielded | 72.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SPRH1210-1R0NSMD POWER INDUCTOR |
250 |
|
Datasheet |
SPRH1210 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 10.23 A | 33A | Shielded | 6.28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
LPS6235-335MRCPOWER INDUCTOR, SHIELDED, 20% TO |
70 |
|
Datasheet |
LPS6235 | 2424 (6060 Metric) | Strip | Active | Drum Core | Ferrite | 3.3 mH | ±20% | 140 mA | 80mA | Shielded | 9.5Ohm Max | - | 1.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.138" (3.50mm) |
|
CTRFB0810F-101K100UH RADIAL FIXED INDUCTOR |
62 |
|
Datasheet |
CTRFB0810F | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 µH | ±10% | 1.8 A | 1.4A | Unshielded | 200mOhm Max | - | 5.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
|
|
CTRFB0810F-332K3300UH RADIAL FIXED INDUCTOR |
44 |
|
Datasheet |
CTRFB0810F | Radial, Vertical Cylinder | Bulk | Active | - | - | 3.3 mH | ±10% | 330 mA | 240mA | Unshielded | 7.6Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
|
CLS62NP-220NCFIXED IND 22UH 468MA 355MOHM SMD |
92 |
|
Datasheet |
CLS | 4-SMD | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 468 mA | - | Shielded | 355mOhm Max | - | - | - | - | 2.52 MHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.098" (2.50mm) |
|

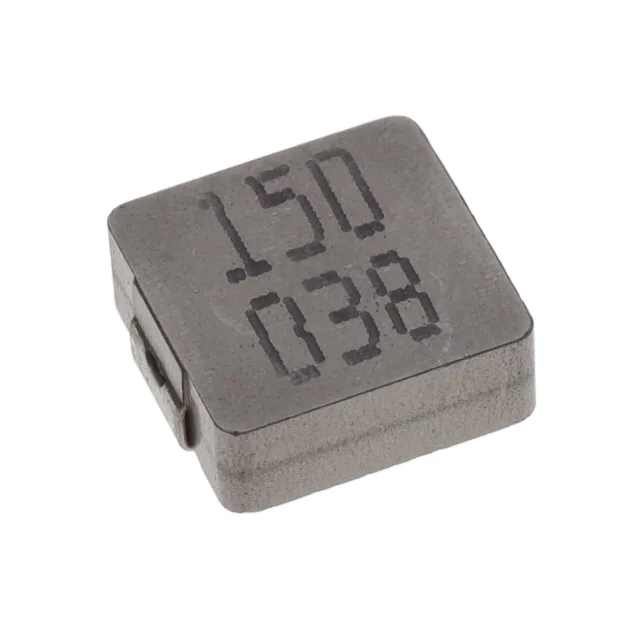

125CDMCCDS-150MCFIXED IND 15UH 8.5A 26 MOHM SMD |
63 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 8.5 A | 11A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
CDRH60D45BT150NP-150MCFIXED IND 15UH 2A 76.8 MOHM SMD |
1,000 |
|
Datasheet |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 2 A | 2.3A | Shielded | 76.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
B82134A5302M000FIXED IND 12UH 3A 90 MOHM TH |
88 |
|
Datasheet |
B82134 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 12 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | 75MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 1.181" L (7.50mm x 30.00mm) | - |
|
LMXS101DN470LTASFIXED IND 47UH 2.1A 128 MOHM SMD |
88 |
|
Datasheet |
LMXS | Nonstandard | Cut Tape (CT) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 2.1 A | - | Shielded | 128mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PA4304.153NLTFIXED IND 15UH 3.3A 30 MOHM SMD |
830 |
|
Datasheet |
PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.3 A | - | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
ETQ-P6F0R6BFAFIXED IND 580NH 19A 1.44MOHM SMD |
54 |
|
Datasheet |
PCC-D126F (N6B) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 580 nH | ±20% | 19 A | - | Shielded | 1.44mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
IHLP4040EDERR47M5AFIXED IND 470NH 35.5A 1.39 MOHM |
45 |
|
Datasheet |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 35.5 A | 20.3A | Shielded | 1.39mOhm Max | - | 65MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
ETQ-P6F3R5SFAFIXED IND 3.5UH 9.3A 6.48MOHM SM |
35 |
|
Datasheet |
PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.5 µH | ±30% | 9.3 A | 9.5A | Shielded | 6.48mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
CTCH895F-102K1000UH RADIAL LEAD FIX INDUCTOR |
76 |
|
- |
CTCH895F | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | - | 300mA | Unshielded | 1.84Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
|
CSHB0412R-R10MFIX IND 0.1UH 15A 5.5MOHM SMD |
100 |
|
Datasheet |
CSHB0412R | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 100 nH | ±20% | 15 A | 18A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
