Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMDLA2213S-4R7MTFIXED IND 4.7UH 44A 2.2MOHM SMD |
80 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 44 A | 34A | Shielded | 2.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213S-101MTFIXED IND 100UH 9.5A 40MOHM SMD |
80 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 µH | ±20% | 9.5 A | 7.5A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213S-6R8MTFIXED IND 6.8UH 36A 3.1MOHM SMD |
80 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 36 A | 32A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213S-330MTFIXED IND 33UH 16A 15.4MOHM SMD |
80 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 16 A | 10.5A | Shielded | 15.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213S-470MTFIXED IND 47UH 14A 20.8MOHM SMD |
77 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 14 A | 10A | Shielded | 20.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213S-680MTFIXED IND 68UH 12A 29.5MOHM SMD |
74 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 68 µH | ±20% | 12 A | 9A | Shielded | 29.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
HCM1A2213V2-100-RFIXED IND 10UH 20A 4.1 MOHM SMD |
150 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 20 A | 32.5A | Shielded | 4.1mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM1A2213V2-3R3-RFIXED IND 3.3UH 34A 1.77MOHM SMD |
100 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 34 A | 41A | Shielded | 1.77mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
AMDLA2213Q-3R3MTFIXED IND 3.3UH 47A 1.75MOHM SMD |
80 |
|
Datasheet |
AMDLA2213Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 47 A | 37A | Shielded | 1.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213Q-680MTFIXED IND 68UH 12A 29.5 MOHM SMD |
80 |
|
Datasheet |
AMDLA2213Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 68 µH | ±20% | 12 A | 9A | Shielded | 29.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213Q-6R8MTFIXED IND 6.8UH 36A 3.1 MOHM SMD |
60 |
|
Datasheet |
AMDLA2213Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 36 A | 32A | Shielded | 3.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|

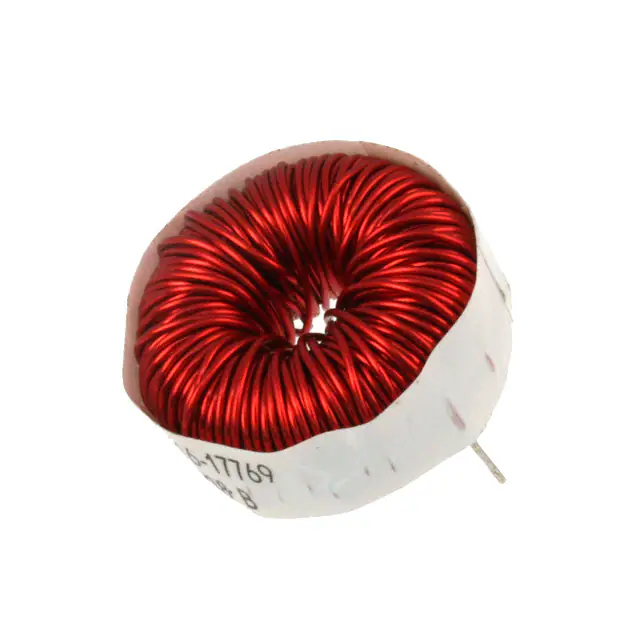

CTX16-17769-RFIXED IND 340UH 5.3A 35 MOHM TH |
0 |
|
Datasheet |
PFC | Radial, Horizontal, 4 Leads (Open) | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 340 µH | - | 5.3 A | - | Unshielded | 35mOhm Max | - | - | - | -20°C ~ 105°C | 20 kHz | - | Through Hole | - | 1.575" Dia (40.00mm) | 0.780" (19.80mm) |
|
1540M15FIXED IND 1.6MH 1.5A 1.27 OHM TH |
13 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 1.6 mH | ±15% | 1.5 A | - | Unshielded | 1.27Ohm Max | - | - | - | - | - | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|
PAL6290.392NLIND HIGH CURRENT 3.9UH 48A PCB |
70 |
|
Datasheet |
PAL6290XXXNL | Nonstandard | Tray | Active | Wirewound | - | 3.9 µH | ±20% | 48 A | 75A | Unshielded | 0.85mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.878" L x 0.630" W (22.30mm x 16.00mm) | 0.877" (22.30mm) |
|
|
7843763521022THT HIGH CURRENT INDUCTOR 3521; |
16 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 75 A | 130A | Unshielded | 0.39mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 0.945" (24.00mm) |
|
CTX22-16885FIXED IND 200UH 7A 164 MOHM TH |
0 |
|
Datasheet |
PFC | Radial, Vertical, 6 Leads (Open) | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 200 µH | - | 7 A | - | Unshielded | 164mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.866" W (35.40mm x 22.00mm) | 1.850" (47.00mm) |
|
1140-100K-RCFIXED IND 10UH 21.8A 5 MOHM TH |
72 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 21.8 A | 65.3A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-4R7M-RCFIXED IND 4.7UH 28.1A 3 MOHM TH |
20 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 28.1 A | 80A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
760800401FIXED IND 118UH 13.9A 0.022OHM |
79 |
|
Datasheet |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 118 µH | ±20% | 13.9 A | 9.5A | Unshielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.087" Dia (53.00mm) | 1.102" (28.00mm) |
|
|
1540M08FIXED IND 400UH 2.25A 330MOHM TH |
14 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 400 µH | ±15% | 2.25 A | - | Unshielded | 330mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
