Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-6045S-270M-TFIXED IND 27UH 1.65A 102MOHM SMD |
1,545 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.65 A | 1.9A | Shielded | 102mOhm | - | 9.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SDCHA1V6045-3R3-RIND SMD POWER 3.3UH 5.0A |
1,379 |
|
Datasheet |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 5 A | 7.8A | Shielded | 21mOhm | - | 45MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRN4018TA-101MFIXED IND 100UH 340MA 1.38OHM SM |
1,245 |
|
Datasheet |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 340 mA | 420mA | Shielded | 1.38Ohm | 10 @ 100kHz | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
SRN3015TA-4R7MFIXED IND 4.7UH 1.2A 120MOHM SMD |
1,220 |
|
Datasheet |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.2A | Shielded | 120mOhm | 12 @ 100kHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

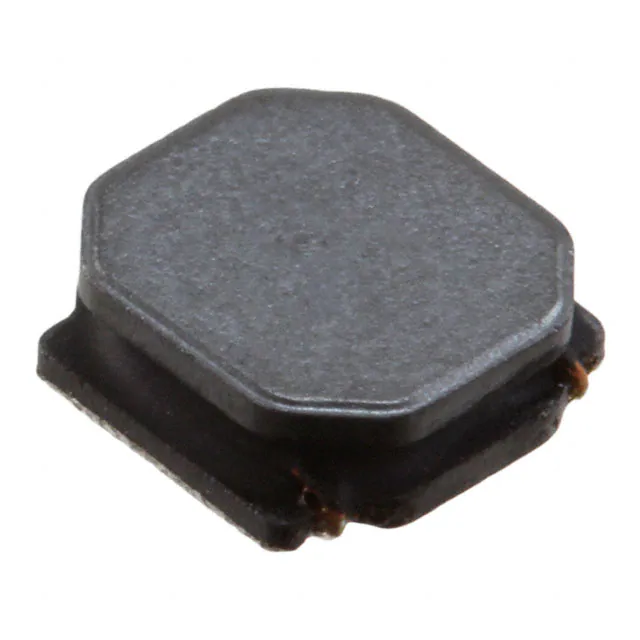

TYS5020220M-10FIXED IND 22UH 1.1A 226 MOHM SMD |
202,032 |
|
Datasheet |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.1 A | 1.15A | Shielded | 226mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
CDRH62BNP-470MC-BFIXED IND 47UH 500MA 690MOHM SMD |
48,674 |
|
Datasheet |
CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 500 mA | - | Shielded | 690mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
TYS4030101M-10FIXED IND 100UH 450MA 1.495 OHM |
39,541 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 450 mA | 600mA | Shielded | 1.495Ohm Max | - | 5.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
TYS5040470M-10FIXED IND 47UH 1A 272 MOHM SMD |
26,187 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1 A | 1.1A | Shielded | 272mOhm Max | - | 6.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
TYS4030100M-10FIXED IND 10UH 1.5A 130 MOHM SMD |
23,793 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.5 A | 1.95A | Shielded | 130mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
TYS50406R8M-10FIXED IND 6.8UH 2.5A 43 MOHM SMD |
21,472 |
|
Datasheet |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.5 A | 2.9A | Shielded | 43mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|

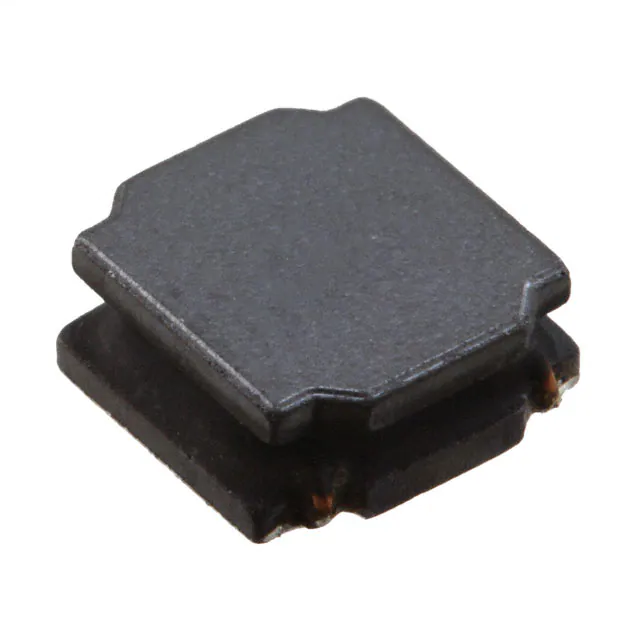

TYS60286R8M-10FIXED IND 6.8UH 2.4A 47 MOHM SMD |
12,989 |
|
Datasheet |
TYS6028 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.4 A | 2.6A | Shielded | 47mOhm | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
BMRA000606302R2MA1FIXED IND 2.2UH 8.5A 20 MOHM SMD |
12,174 |
|
Datasheet |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8.5 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRN4018TA-4R7MFIXED IND 4.7UH 1.7A 70 MOHM SMD |
11,855 |
|
Datasheet |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 2A | Shielded | 70mOhm | 10 @ 100kHz | 58MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
ASPIAIG-S6055-101M-TFIXED IND 100UH 1.1A 434MOHM SMD |
11,654 |
|
Datasheet |
ASPIAIG-S6055 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 1.1 A | 1.1A | Shielded | 434mOhm | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.224" (5.70mm) |
|
|
ASPI-6045S-120M-TFIXED IND 12UH 2.2A 58 MOHM SMD |
11,534 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.2 A | 2.8A | Shielded | 58mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-6045S-470M-TFIXED IND 47UH 1.2A 200 MOHM SMD |
11,121 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.4A | Shielded | 200mOhm | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLCF4020T-220MR56FIXED IND 22UH 560MA 431MOHM SMD |
10,825 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 560 mA | 560mA | Shielded | 431mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
BMRF00060630100MA1FIXED IND 10UH 4A 68 MOHM SMD |
9,029 |
|
Datasheet |
BMRF | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 4 A | 5.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
TYS4030220M-10FIXED IND 22UH 1A 292.5 MOHM SMD |
8,684 |
|
Datasheet |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1 A | 1.3A | Shielded | 292.5mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
LQW18CNR27J0ZDFIXED IND 270NH 750MA 160MOHM SM |
8,553 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 750 mA | - | Unshielded | 160mOhm Max | - | 660MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
