Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-1306T-680M-TFIXED IND 68UH 2.3A 130 MOHM SMD |
500 |
|
Datasheet |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 3.5A | Unshielded | 130mOhm Max | - | 8MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
ASPI-1306T-470M-TFIXED IND 47UH 2.6A 86 MOHM SMD |
450 |
|
Datasheet |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.6 A | 4.5A | Unshielded | 86mOhm Max | - | 9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
ASPI-0704S-151M-TFIXED IND 150UH 460MA 880MOHM SM |
246 |
|
Datasheet |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 460 mA | - | Shielded | 880mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
PG0871.103NLFIXED IND 10.5UH 4.7A 31.5 MOHM |
96 |
|
Datasheet |
PG0871NL | Nonstandard | Tray | Active | Wirewound | - | 10.5 µH | ±20% | 4.7 A | 6.3A | Shielded | 31.5mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
PG0871.682NLFIXED IND 6.8UH 5.8A 20 MOHM SMD |
22 |
|
Datasheet |
PG0871NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 5.8 A | 7.8A | Shielded | 20mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
P1169.223NLFIXED IND 22UH 2.6A 67 MOHM SMD |
45 |
|
Datasheet |
P1169NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 2.6 A | 2.7A | Shielded | 67mOhm Max | - | 13MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
PM3316-3R3M-RCFIXED IND 3.3UH 5A 15 MOHM SMD |
565 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5 A | 6.4A | Unshielded | 15mOhm | 50 @ 4MHz | 54MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
SRU1063A-680YFIXED IND 68UH 1.2A 210 MOHM SMD |
88 |
|
Datasheet |
SRU1063A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.2 A | 1.35A | Shielded | 210mOhm Max | 8 @ 2.52MHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
|
SRU1063A-470YFIXED IND 47UH 1.4A 150 MOHM SMD |
73 |
|
Datasheet |
SRU1063A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.4 A | 1.6A | Shielded | 150mOhm Max | 10 @ 2.52MHz | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
|
PM3316-1R5M-RCFIXED IND 1.5UH 6.5A 9 MOHM SMD |
60 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.5 A | 8A | Unshielded | 9mOhm | 50 @ 3MHz | 95MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
17476CFIXED IND 47MH 30MA 154 OHM TH |
38 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 47 mH | ±10% | 30 mA | - | Unshielded | 154Ohm Max | 90 @ 50kHz | 250kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
AIAP-03-120KFIXED IND 12UH 8.21A 20 MOHM TH |
800 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 12 µH | ±10% | 8.21 A | - | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
MPXV1D0624L100FIXED IND 10UH 3.3A 113.2MOHM SM |
53 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 3.3 A | 4.5A | Shielded | 113.2mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
P1173.762NLFIXED IND 7.6UH 5.7A 18.5MOHM SM |
50 |
|
Datasheet |
P1173NL | Nonstandard | Tray | Active | Wirewound | - | 7.6 µH | ±30% | 5.7 A | 6.2A | Shielded | 18.5mOhm Max | - | 25MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
P1173.223NLFIXED IND 22UH 3.8A 42 MOHM SMD |
25 |
|
Datasheet |
P1173NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | 12MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
B82472G6334M000FIXED IND 330UH 330MA 1.7OHM SMD |
1,000 |
|
Datasheet |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 330 mA | 300mA | Shielded | 1.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
SBC2-221-411FIXED IND 220UH 410MA 870MOHM TH |
81 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 410 mA | 450mA | Unshielded | 870mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
|

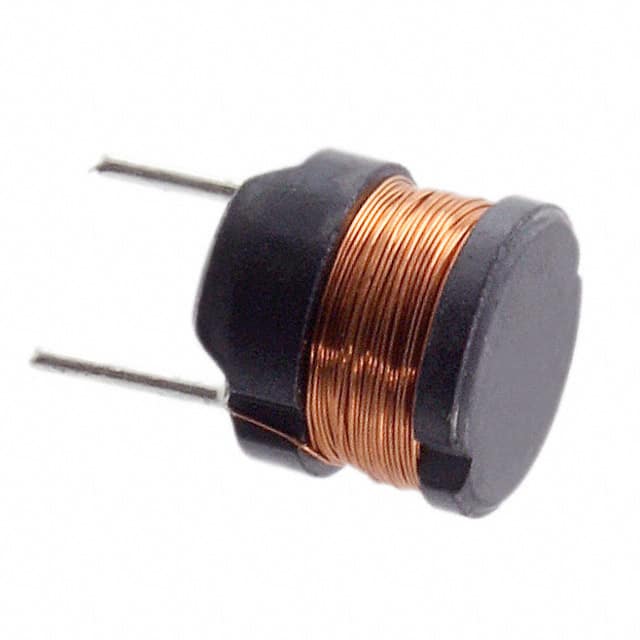

744730392FIXED IND 3.9MH 180MA 12 OHM TH |
70 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±5% | 180 mA | 200mA | Unshielded | 12Ohm Max | - | 1.04MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
ISC1812ER150KFIXED IND 15UH 252MA 1.1 OHM SMD |
957 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±10% | 252 mA | - | Shielded | 1.1Ohm Max | 50 @ 2.52MHz | 18MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
AL12B35N5JTRFIXED IND 35.5NH 4A 6.8 MOHM SMD |
556 |
|
Datasheet |
AL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 35.5 nH | ±5% | 4 A | - | Unshielded | 6.8mOhm Max | 112 @ 150MHz | 1.5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
