Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWSA0604S-220MTFIXED IND 22UH 125 MOHM SMD |
975 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 22 µH | ±20% | - | - | Shielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
MWSA0604S-100MTFIXED IND 10UH 65 MOHM SMD |
958 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | - | - | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
MWSA0605S-2R2MTFIXED IND 2.2UH 9A 12.5MOHM SMD |
938 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 9 A | 11A | Shielded | 12.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
0618CDMCCDS-R10MCFIXED IND 100NH 25A 2.4MOHM SMD |
906 |
|
Datasheet |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 25 A | 34A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
PM5022-151K-RCFIXED IND 150UH 1.4A 270MOHM SMD |
728 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.4 A | 2.6A | Unshielded | 270mOhm Max | 23 @ 5MHz | 796kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SRR0735A-180MFIXED IND 18UH 1.4A 125 MOHM SMD |
675 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.4 A | 1.4A | Shielded | 125mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
PM5022-150M-RCFIXED IND 15UH 4.3A 35 MOHM SMD |
662 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.3 A | 8A | Unshielded | 35mOhm | 20 @ 17MHz | 2.52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SRU3028A-100YFIXED IND 10UH 720MA 200MOHM SMD |
614 |
|
Datasheet |
SRU3028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 720 mA | 860mA | Shielded | 200mOhm Max | 20 @ 2.52MHz | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|
|
PM5022-1R0M-RCFIXED IND 1UH 10A 4 MOHM SMD |
448 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 10 A | 30A | Unshielded | 4mOhm | 21 @ 100MHz | 7.96MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SRU8028-1R0YFIXED IND 1UH 7A 10.1 MOHM SMD |
334 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 7 A | 5.5A | Shielded | 10.1mOhm Max | 12 @ 7.96MHz | 66MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
7447720392FIXED IND 3.9MH 260MA 7 OHM TH |
132 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±5% | 260 mA | 270mA | Unshielded | 7Ohm Max | - | 700kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720150FIXED IND 15UH 2.4A 45 MOHM TH |
127 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.4 A | 3A | Unshielded | 45mOhm Max | - | 16.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772331FIXED IND 330UH 510MA 700MOHM TH |
35 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 510 mA | 950mA | Unshielded | 700mOhm Max | - | 2.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
APSC000303162R2T00FIXED IND 2.2UH 1.6A 94MOHM SMD |
1,875 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.6 A | 1.2A | Shielded | 94mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.061" (1.55mm) |
|
AMPLA1004S-2R2MTFIXED IND 2.2UH 12A 7 MOHM SMD |
997 |
|
Datasheet |
AMPLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 12 A | 27A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
ASPI-7318-R10N-TFIXED IND 100NH 30A 1.7 MOHM SMD |
870 |
|
Datasheet |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±30% | 30 A | 50A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|

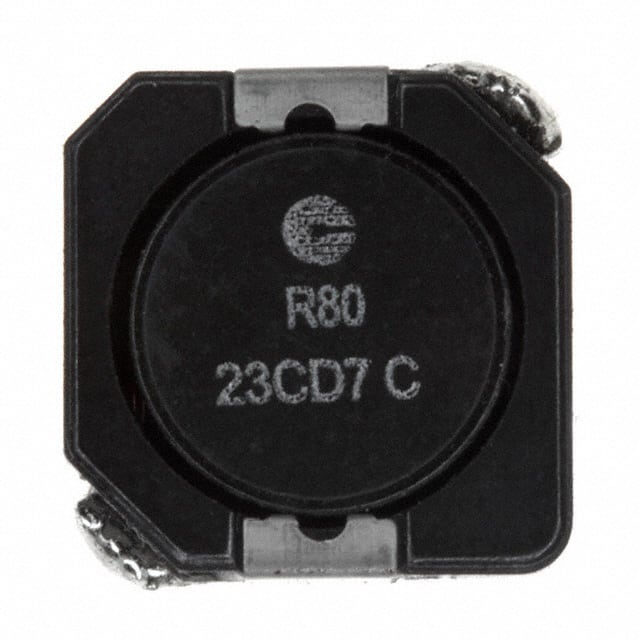

DR1050-R80-RFIXED IND 800NH 9.7A 4 MOHM SMD |
497 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 800 nH | ±30% | 9.7 A | 13.5A | Shielded | 4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
|
AMPLA1004S-1R8MTFIXED IND 1.8UH 14A 6.4 MOHM SMD |
472 |
|
Datasheet |
AMPLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.8 µH | ±20% | 14 A | 30A | Shielded | 6.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
IHLP1212ABEVR22MA1IHLP-1212AB-A1 .22 20% EV E3 |
324 |
|
Datasheet |
IHLP-1212AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 7.93 A | 10.23A | Shielded | 13.21mOhm Max | - | 251MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
AMDLA1004S-1R0MTFIXED IND 1UH 20A 3.25 MOHM SMD |
199 |
|
Datasheet |
AMDLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 20 A | 29A | Shielded | 3.25mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
