Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR7045-221KFIXED IND 220UH 500MA 930MOHM SM |
73 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 500 mA | 480mA | Unshielded | 930mOhm Max | 22 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRR3818A-1R5YFIXED IND 1.5UH 3.1A 47 MOHM SMD |
26 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.1 A | 1.6A | Shielded | 47mOhm Max | - | 125MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
BPSC00101140470M00FIXED IND 47UH 144 MOHM SMD |
1,865 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | - | 1.8A | Shielded | 144mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
BPSC00101140330M00FIXED IND 33UH 98 MOHM SMD |
1,685 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | - | 2.3A | Shielded | 98mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
744764118FIXED IND 18UH 120MA 3.3 OHM SMD |
1,613 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 120 mA | - | Unshielded | 3.3Ohm Max | 30 @ 2.52MHz | 23MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
BPSC00101140680M00INDUCTOR POWER |
1,000 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | - | 1.4A | Shielded | 204mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PM75-220K-RCFIXED IND 22UH 1.5A 110 MOHM SMD |
995 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.5 A | 2.3A | Unshielded | 110mOhm Max | 20 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
BPSC00101140221M00INDUCTOR POWER |
985 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | - | 800mA | Shielded | 690mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|

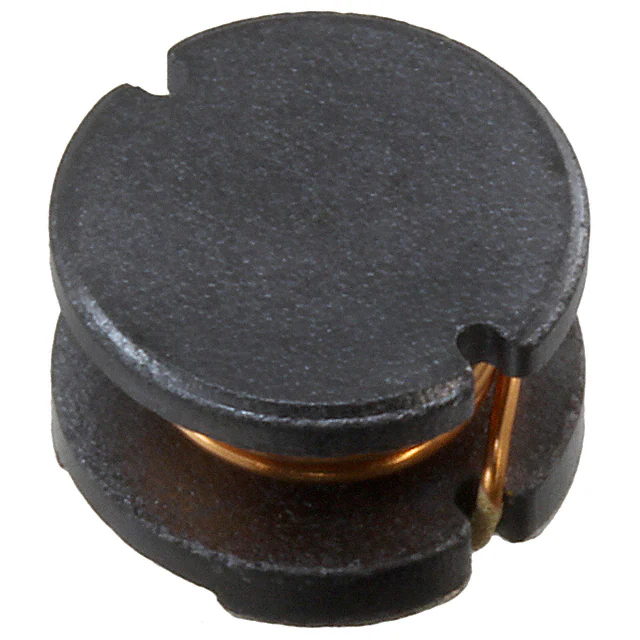

PM75-100K-RCFIXED IND 10UH 2.3A 70 MOHM SMD |
979 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | 3.2A | Unshielded | 70mOhm Max | 25 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
PM75-470K-RCFIXED IND 47UH 1A 200 MOHM SMD |
969 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1 A | 1.6A | Unshielded | 200mOhm Max | 15 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
BPSC00070740150MS0INDUCTOR POWER |
936 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | - | 1.4A | Shielded | 57mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.157" (4.00mm) |
|
SBC1-471-301FIXED IND 470UH 300MA 2.4 OHM TH |
762 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 300 mA | 210mA | Unshielded | 2.4Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.413" (10.50mm) |
|
0630CDMCDDS-1R2MCFIXED IND 1.2UH SMD |
753 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.2 µH | ±20% | 12.5 A | 17.8A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
EXL1V0503-R15-RFIXED IND 150NH 22.2A 2.31 MOHM |
590 |
|
Datasheet |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 150 nH | ±20% | 22.2 A | 32.5A | Shielded | 2.31mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
|
EXL1V0503-R47-RFIXED IND 470NH 18.4A 4.13 MOHM |
478 |
|
Datasheet |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 18.4 A | 24A | Shielded | 4.13mOhm Max | - | 95MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
|
EXL1V0503-R33-RFIXED IND 330NH 19.2A 3.52 MOHM |
386 |
|
Datasheet |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 19.2 A | 26A | Shielded | 3.52mOhm Max | - | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
RCH664NP-220KFIXED IND 22UH 1.27A 110 MOHM TH |
364 |
|
Datasheet |
RCH-664 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.27 A | - | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.256" (6.50mm) |
|
|
SBC3-682-111FIXED IND 6.8MH 110MA 14.5OHM TH |
339 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 110 mA | 120mA | Unshielded | 14.5Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.453" (11.50mm) |
|
|
EXL1V0503-R80-RFIXED IND 800NH 13.1A 5.65 MOHM |
255 |
|
Datasheet |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 800 nH | ±20% | 13.1 A | 18A | Shielded | 5.65mOhm Max | - | 57MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
|
SBC4-152-221FIXED IND 1.5MH 220MA 3.24OHM TH |
169 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 220 mA | 380mA | Unshielded | 3.24Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
