Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0805-122KLFIXED IND 1.2MH 170MA 6.8OHM SMD |
1,028 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 170 mA | 280mA | Unshielded | 6.8Ohm Max | 28 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
ASPI-0704S-271M-TFIXED IND 270UH 340MA 1.64OHM SM |
1,000 |
|
Datasheet |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 340 mA | - | Shielded | 1.64Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
ASPI-0704S-561M-TFIXED IND 560UH 230MA 3.62OHM SM |
1,000 |
|
Datasheet |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 230 mA | - | Shielded | 3.62Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SDR0805-180MLFIXED IND 18UH 1.6A 100 MOHM SMD |
988 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.6 A | 2.6A | Unshielded | 100mOhm Max | 20 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-270KLFIXED IND 27UH 1.3A 120 MOHM SMD |
768 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1.3 A | 2.1A | Unshielded | 120mOhm Max | 20 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|

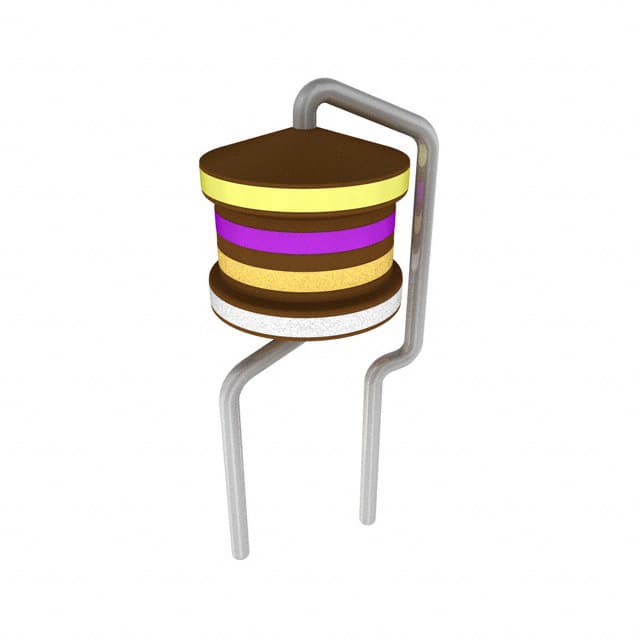

B82144B2472K000FIXED IND 4.7UH 3.05A 80 MOHM TH |
657 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 3.05 A | 4A | Unshielded | 80mOhm Max | 50 @ 2.52MHz | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
|
ASPI-0704S-390M-TFIXED IND 39UH 910MA 230MOHM SMD |
505 |
|
Datasheet |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 910 mA | - | Shielded | 230mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
ASPI-0704S-221M-TFIXED IND 220UH 360MA 1.17OHM SM |
240 |
|
Datasheet |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 360 mA | - | Shielded | 1.17Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
AIAP-03-222KFIXED IND 2.2MH 580MA 2 OHM TH |
944 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 2.2 mH | ±10% | 580 mA | - | Unshielded | 2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
7447660039FIXED IND 390NH 450MA 450MOHM SM |
980 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±10% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 390MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
RLB0913-681KFIXED IND 680UH 420MA 1.6 OHM TH |
916 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 420 mA | 380mA | Unshielded | 1.6Ohm | 20 @ 796kHz | 1.6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
MDPK5050T1R0MMFIXED IND 1UH 4.3A 40 MOHM SMD |
59 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.3 A | 8.5A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
IHLP4040DZER470M1AFIXED IND 47UH 3.3A 145 MOHM SMD |
1,000 |
|
Datasheet |
IHLP-4040DZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 3.3 A | 3A | Shielded | 145mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.157" (4.00mm) |
|
SDR0703-680KLFIXED IND 68UH 380MA 900MOHM SMD |
1,995 |
|
Datasheet |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 380 mA | 560mA | Unshielded | 900mOhm Max | 18 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
|
MDPK5050T4R7MMFIXED IND 4.7UH 2.5A 102MOHM SMD |
1,612 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.5 A | 3.5A | Shielded | 102mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
PM1008S-331M-RCFIXED IND 330UH 200MA 11.5OHM SM |
1,384 |
|
Datasheet |
PM1008S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 200 mA | - | Shielded | 11.5Ohm Max | 55 @ 1MHz | 3.8MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
ASPI-8040S-360M-TFIXED IND 36UH 1.75A 102MOHM SMD |
1,361 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 36 µH | ±20% | 1.75 A | 2A | Shielded | 102mOhm | - | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
SDR0703-681KLFIXED IND 680UH 100MA 10.5OHM SM |
1,298 |
|
Datasheet |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 100 mA | 150mA | Unshielded | 10.5Ohm Max | 32 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
|
ASPI-8040S-1R5N-TFIXED IND 1.5UH 5.65A 10MOHM SMD |
1,000 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.65 A | 8.15A | Shielded | 10mOhm | - | 67MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
B82144B2272K000FIXED IND 2.7UH 3.55A 60 MOHM TH |
983 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 3.55 A | 5.4A | Unshielded | 60mOhm Max | 60 @ 2.52MHz | 120MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
