Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0603-6R8MLFIXED IND 6.8UH 1.38A 110MOHM SM |
297 |
|
Datasheet |
SDR0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.38 A | 1.8A | Unshielded | 110mOhm Max | 19 @ 7.96MHz | 44MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.154" (3.90mm) |
|
SBC1-330-102FIXED IND 33UH 1A 220 MOHM TH |
230 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1 A | 830mA | Unshielded | 220mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.335" (8.50mm) |
|
LCXNH8080XKL1R5NJGFIXED IND 1.5UH 5.3A 15.6MOHM SM |
1,983 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 5.3 A | 6.2A | Unshielded | 12mOhm | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LCXNH8080XKL330MJGFIXED IND 33UH 1.5A 156 MOHM SMD |
1,876 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.3A | Unshielded | 120mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
744764039FIXED IND 3.9UH 250MA 1.3OHM SMD |
1,110 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 250 mA | - | Unshielded | 1.3Ohm Max | 30 @ 7.96MHz | 50MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
7447640082FIXED IND 820NH 450MA 650MOHM SM |
960 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±10% | 450 mA | - | Unshielded | 650mOhm Max | 30 @ 25.2MHz | 370MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
SDCHA1V8040-2R2-RIND SMD POWER 2.2UH 7.4A |
1,987 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 7.4 A | 9.8A | Shielded | 11.5mOhm | - | 57MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
BWVS00808040330M00INDUCTOR POWER |
1,905 |
|
Datasheet |
BWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.8 A | 2.07A | Shielded | 110mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
SDCHA1V8040-6R8-RIND SMD POWER 6.8UH 5.1A |
1,898 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 5.1 A | 5.6A | Shielded | 25mOhm | - | 29MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
NRS8030T1R0NJGJVFIXED IND 1UH 6.2A 11.7 MOHM SMD |
1,826 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.2 A | 7.8A | Shielded | 11.7mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS8030T470MJGJVFIXED IND 47UH 1.3A 221 MOHM SMD |
1,666 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.1A | Shielded | 221mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
SDCHA1V8040-101-RIND SMD POWER 100UH 1.2A |
1,639 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 1.2 A | 1.45A | Shielded | 300mOhm | - | 8MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
AWVS00606045680M00FIXED IND 68UH 1A 330 MOHM SMD |
1,306 |
|
Datasheet |
AWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1 A | 1.6A | Shielded | 330mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
NRS8040T0R9NJGJVFIXED IND 900NH 7.8A 7.8MOHM SMD |
1,000 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±30% | 7.8 A | 13A | Shielded | 7.8mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
SDCHA1V8040-1R0-RIND SMD POWER 1.0UH 8.5A |
1,000 |
|
Datasheet |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 1 µH | ±20% | 8.5 A | 13.8A | Shielded | 8.2mOhm | - | 85MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
ASPI-0403H-220K-TFIXED IND 22UH 760MA 378MOHM SMD |
941 |
|
Datasheet |
ASPI-0403H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 760 mA | - | Unshielded | 378mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

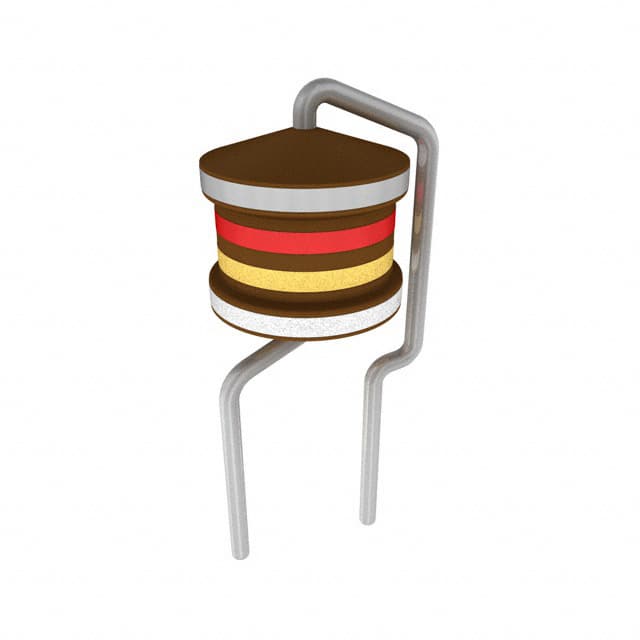

B82144B2822K000FIXED IND 8.2UH 2.65A 105MOHM TH |
900 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 2.65 A | 3.1A | Unshielded | 105mOhm Max | 40 @ 252kHz | 28MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
MDMK3030T4R7MMFIXED IND 4.7UH 1.3A 263MOHM SMD |
875 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.3 A | 1.8A | Shielded | 263mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
VLS3012HBX-R33NFIXED IND 330NH 6.78A 30MOHM SMD |
872 |
|
Datasheet |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±30% | 6.78 A | 9.11A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
AIAC-1812-56NJ-TFIXED IND 56NH 2.9A 6.4 MOHM SMD |
853 |
|
Datasheet |
AIAC-1812 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 56 nH | ±5% | 2.9 A | - | Unshielded | 6.4mOhm Max | 100 @ 150MHz | 1.5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.146" (3.70mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
