Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLCF4018T-4R7N1R0-2FIXED IND 4.7UH 1.07A 101MOHM SM |
4,576 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.07 A | 1.07A | Shielded | 101mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
VLS6045AF-4R7MFIXED IND 4.7UH 4.7A 26MOHM SMD |
4,240 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.7 A | 4.3A | Shielded | 26mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQW18CNR39J00DFIXED IND 390NH 620MA 280MOHM SM |
3,943 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 620 mA | - | Unshielded | 280mOhm Max | - | 570MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
RLB0914-120KLFIXED IND 12UH 2.5A 55 MOHM TH |
3,693 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.5 A | 6.2A | Unshielded | 55mOhm Max | 50 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0914-100KLFIXED IND 10UH 2.7A 48 MOHM TH |
3,521 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.7 A | 6.7A | Unshielded | 48mOhm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
VLS6045AF-101MFIXED IND 100UH 1A 527 MOHM SMD |
2,996 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 527mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
RLB0914-3R3MLFIXED IND 3.3UH 3.6A 27 MOHM TH |
2,888 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.6 A | 11.3A | Unshielded | 27mOhm Max | 20 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
VLS6045AF-150MFIXED IND 15UH 2.8A 77 MOHM SMD |
2,810 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.8 A | 2.5A | Shielded | 77mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLS6045AF-330MFIXED IND 33UH 1.8A 164MOHM SMD |
2,718 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.8 A | 1.6A | Shielded | 164mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
RLB0912-470KLFIXED IND 47UH 1.5A 170 MOHM TH |
2,458 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.5 A | 1.7A | Unshielded | 170mOhm Max | 40 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|

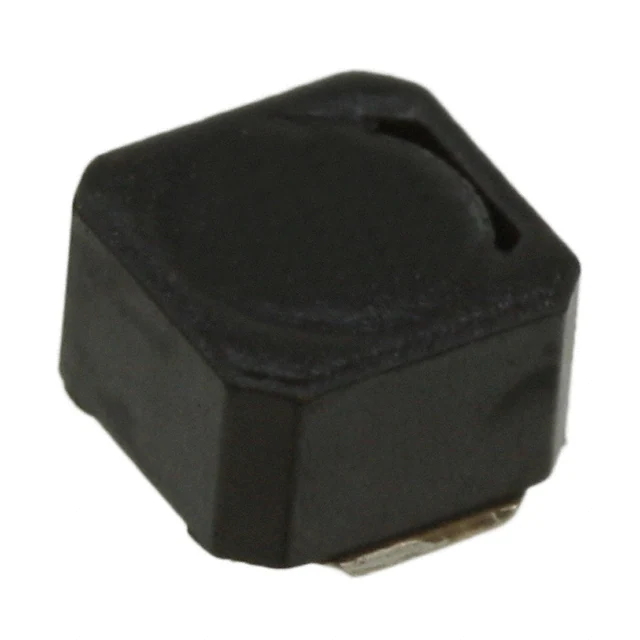

VLCF4028T-100M1R0-2FIXED IND 10UH 1.06A 140MOHM SMD |
2,422 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.06 A | 1.06A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
RLB0914-271KLFIXED IND 270UH 770MA 680MOHM TH |
2,270 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 770 mA | 1.4A | Unshielded | 680mOhm Max | 20 @ 796kHz | 2.2MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
LQW18CNR33J00DFIXED IND 330NH 630MA 250MOHM SM |
2,004 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±5% | 630 mA | - | Unshielded | 250mOhm Max | - | 600MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQW2BANR16J00LFIXED IND 160NH 930MA 460MOHM SM |
1,983 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 160 nH | ±5% | 930 mA | - | Unshielded | 460mOhm Max | 53 @ 250MHz | 920MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
VLS6045EX-4R7M-HFIXED IND 4.7UH 4.2A 35.1MOHM SM |
1,899 |
|
Datasheet |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.2 A | 5.8A | Shielded | 35.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
|
RLB0914-151KLFIXED IND 150UH 1A 370 MOHM TH |
1,862 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1 A | 1.8A | Unshielded | 370mOhm Max | 30 @ 796kHz | 2.8MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0912-471KLFIXED IND 470UH 600MA 1.7 OHM TH |
1,849 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 600 mA | 520mA | Unshielded | 1.7Ohm Max | 25 @ 796kHz | 2.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
|
RLB0912-220KLFIXED IND 22UH 2.1A 86 MOHM TH |
1,695 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.1 A | 2.5A | Unshielded | 86mOhm Max | 50 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
|
RLB0914-561KLFIXED IND 560UH 520MA 1.4 OHM TH |
1,633 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 520 mA | 950mA | Unshielded | 1.4Ohm Max | 20 @ 796kHz | 1.7MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
LQW2BAN27NJ00LFIXED IND 27NH 2A 70 MOHM SMD |
1,582 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 27 nH | ±5% | 2 A | - | Unshielded | 70mOhm Max | 85 @ 500MHz | 2.75GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
