Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1.00mm.jpg)
|
1269AS-H-4R7M=P2FIXED IND 4.7UH 1.3A 300MOHM SMD |
6,115 |
|
Datasheet |
DFE252010C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.3 A | - | Shielded | 300mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LPWI201608H1R0TFIXED IND 1UH 3.2A 50 MOHM SMD |
5,983 |
|
Datasheet |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 3.2 A | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
MEKK2016HR47MFIXED IND 470NH 4.7A 26 MOHM SMD |
5,788 |
|
Datasheet |
MCOIL™, ME | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.7 A | 5.3A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SDES064T-221MSFIXED IND 220UH 640MA 1.04OHM SM |
5,491 |
|
Datasheet |
SDES064T | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 640 mA | 640mA | Shielded | 1.04Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" (4.00mm) |
|

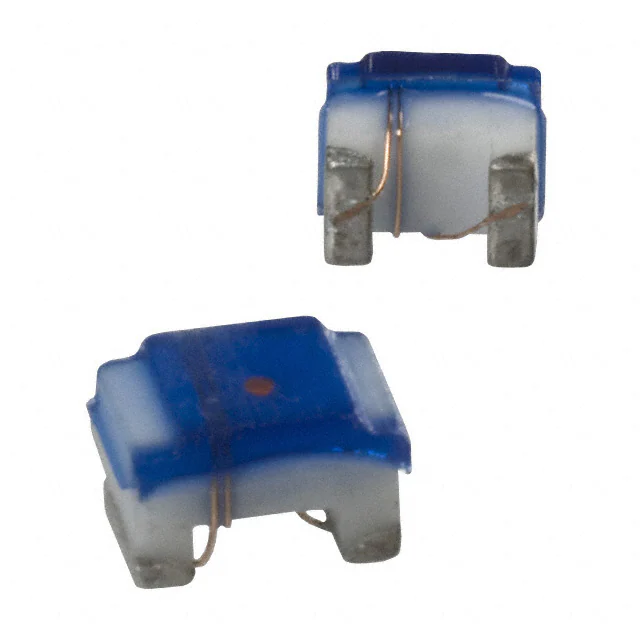

PM0805-22NM-RCFIXED IND 22NH 600MA 100MOHM SMD |
5,336 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 22 nH | ±20% | 600 mA | - | Unshielded | 100mOhm | 60 @ 500MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
.jpg)
|
74479775247FIXED IND 4.7UH 850MA 312.5 MOHM |
5,224 |
|
Datasheet |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 850 mA | 250mA | Shielded | 312.5mOhm Max | 25 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
LQM21PZ4R7MGRDFIXED IND 4.7UH 800MA 230MOHM SM |
5,188 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 800 mA | - | Shielded | 230mOhm | - | 30MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
VLS6045EX-1R5NFIXED IND 1.5UH 5.3A 22 MOHM SMD |
3,990 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.3 A | 8.2A | Shielded | 17mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH32PN101MN0LFIXED IND 100UH 250MA 3.24OHM SM |
3,970 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 250 mA | 180mA | Shielded | 3.24Ohm Max | - | 8MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
B78108S1125J000FIXED IND 1.2MH 115MA 17.5OHM TH |
3,919 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±5% | 115 mA | - | Unshielded | 17.5Ohm Max | 50 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
NRS6045T150MMGKFIXED IND 15UH 1.9A 91 MOHM SMD |
3,682 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.9 A | 2.5A | Shielded | 91mOhm Max | - | 10MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH2MPZ100MGRLFIXED IND 10UH 480MA 1.056OHM SM |
3,634 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 480 mA | 610mA | Shielded | 1.056Ohm Max | - | 30MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQH2MPZ4R7MGRLFIXED IND 4.7UH 580MA 720MOHM SM |
3,490 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 580 mA | 870mA | Shielded | 720mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
B78108S1154J000FIXED IND 150UH 280MA 2.8 OHM TH |
3,407 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 280 mA | - | Unshielded | 2.8Ohm Max | 70 @ 796kHz | 4.2MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
-Height-1.20mm.jpg)
|
1239AS-H-6R8M=P2FIXED IND 6.8UH 1A 375 MOHM SMD |
3,200 |
|
Datasheet |
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 1 A | 1.3A | Shielded | 375mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
1239AS-H-4R7M=P2FIXED IND 4.7UH 1.5A 240MOHM SMD |
2,892 |
|
Datasheet |
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.3 A | 1.5A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQH2MPZ220MGRLFIXED IND 22UH 290MA 2.52OHM SMD |
2,406 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 290 mA | 410mA | Shielded | 2.52Ohm Max | - | 20MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
VLS3015CX-6R8M-HFIXED IND 6.8UH 1.08A 0.192OHM |
1,957 |
|
Datasheet |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.08 A | 950mA | Shielded | 192mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXBD6060WHL4R7MFIXED IND 4.7UH 3A 40.3 MOHM SMD |
1,792 |
|
Datasheet |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 2.7A | Shielded | 31mOhm | - | 39MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
NRS6045T6R8MMGKFIXED IND 6.8UH 3A 46.8 MOHM SMD |
1,500 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3 A | 3.6A | Shielded | 46.8mOhm Max | - | 15MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
